Detail Information

Surfacefinish:	Smooth Or Textured	Productname:	Large-scale Plastic Blow
Dimensions:	Custom Sizes Available	Productionmethod:	Blow Molding
Applications:	Storage Tanks, Containers, Industrial Use	Coloroptions:	Customizable
Weight:	Varies By Size, Typically 10-50 Kg	Capacity:	Up To 2000 Liters
Highlight:	automatic extrusion blow molding machine precision , 1000l extrusion blow molding machine price , 1000l automatic extrusion blow molding machine

Product Description

1000L 6-Layer Full-Automatic High-Precision Industrial-Grade Blow Molding Machine

Product Introduction

The product is named SKJ 1000L Full-Automatic Plastic Blow Molding Machine (Model: XHD1000L six layers), a high-performance multi-layer plastic molding equipment. It adopts an IKV-designed screw to ensure efficient melt plasticization and uniform material mixing. Equipped with core components such as Moog 100-point parison wall thickness control system, PLC control system, Yuken Taiwan hydraulic components, Sumitomo Japan oil pumps, and Italy Phase servo system, the machine achieves precise molding control. Featuring full-automatic operation, it is easy to operate—only 2 female workers are needed to operate the machine, and the entire production line requires just 3 or 4 personnel. Compared with rotational molding machines, it has advantages of higher output, 25%-35% raw material saving, and better impact resistance. The product has obtained CE and ISO9001:2008 certifications.

Tabular Parameters

Operating Condition Parameters

Item	Specific Requirements
Working Environment	Indoor workshop use with good ventilation; bridge crane height ≥ 9m; plant foundation concrete ≥ 18cm; away from magnetic fields; humidity ≤ 90%; indoor temperature 0-45℃
Power Source	3-phase 4 wires 50Hz, 380V-415V
Cooling Water	Water temperature ≤ 20℃; water pressure ≥ 0.3Mpa; water consumption 50T/H
Air Source	Air source pressure 0.8Mpa; air pressure for product forming 0.2-0.4Mpa
Raw Material	High Density Polyethylene (HDPE/HMW-HDPE)

(2) Equipment Overview Parameters

No.	Item	Specific Parameters
1	Extruder	80/65/65/65/65/80
2	Machine Die Head	50L six layers accumulator type die head (bigger than other factories)
3	Clamping Unit	3 pieces type clamping unit with 2 pull bars
4	Machine Frame	Machine frame with elevator
5	Material Loader	Three Spring feeding machine
6	Blow Unit	Multifunction blow seat
7	Robot	Adjustable robot
8	Hydraulic System	Delta servo main hydraulic unit and Wall thickness control small hydraulic unit
9	Pneumatic System	Xinhengda pneumatic control system
10	Electric System	PLC electric system
11	Power	Total load 354.5 kw, average consumption 210 kw
12	Machine Dimension (L×W×H)	7×8×6.5 (unit: meter)
13	Machine Weight	50 TON
14	Product Range	200-1000L Horizontal Tank and 1200L Vertical Tank
15	Melting Capacity	350 KGS/Hour
16	Product Layers	1 to 6

(3) Detailed Parameters of Core Components

1. Extruder Parameters

Category	Item	Specific Parameters
Screw and Barrel	Screw Diameter/L/D/Material	80/65/65/65/65/80; 30:1; 38CrMoAl (both screw and barrel)
Driving Motors and Inverter	Motor Brand/Power/Inverter	HT HILECTRO; 45KW/30KW/30KW/30KW/30KW/45KW; DELTA SERVO CONTROL
Gear Box	Brand/Hard Surface Hardness/Water Cooling	JIANGYIN GEAR; 250/200/200/200/200/250; Separated heat exchanger
Temperature Control	Heaters/Heating Zone/Heating Power/Cooling System	Cast aluminum heating ring (cost twice that of ceramic); 26; 48KW; Barrel heating zone with cover and cooling fan, feeding zone with water cooling unit

2. Machine Die Head Parameters

Category	Item	Specific Parameters
Accumulator	Style/Volume/Material	Four layers accumulator; 50L/38KG; 38CrMoAl & 45# steel
Material Pushing and Thickness Control Cylinder	Model/Working Pressure/Working Temperature/Oil Temperature Control	2-in-1 cylinder; ≤16 mpa; ≤70°C; Water-cooled plate to reduce cylinder temperature
Die Pin and Core Pin	Material/Size	45# steel; Matching products
Temperature Control	Heaters Style/Power	High efficient ceramic heating ring; 90KW

3. Clamping Unit Parameters

Category	Item	Specific Parameters
Unit Style	-	3 pieces type clamping unit with 2 pull bars
Clamping Board	Board Type/Platen Size/Daylight Between Platens/Material	Multi-row screw template; H1700×W1500; 800-2400MM; 45# steel & A3 steel
Clamping Cylinder	Working Pressure/Clamping Force	≤21mpa; 1000KN
Mould Changing Unit	Driving Type/Moving Distance	Hydraulic; 1600

4. Key System Configuration Parameters

System Name	Core Parameters
Hydraulic System	Stack-up servo hydraulic station (energy saving >40%); Oil tank size 1000L; Water cooling; Pump & Valve: Yuken Taiwan; Wall thickness control: Servo valve control, Motor:
Pneumatic System	Separate Pneumatic Station; Pneumatic Valve: SNTC & AIRTAC; Valves centrally arranged for easy maintenance
Electric Control System	PLC + Touch Screen; Multi-language interface (Chinese, English + Customer's local language); Peak Shifting and Progressive Heating Method; SSR (AC contactor for high-temperature areas)
Feeding System	Spring model feeding unit (applicable to various materials, no filter needed); Power: 4KW×6
Blow Seat	Five functions: air blowing/exhausting, sealing, stretching, lifting (stroke 500MM), horizontal adjustment
Robot	Four functions: forward/backward, clamping/unclamping, cooling, height adjustment

Product Functions

1.Raw Material Processing: Adopts IKV-designed screw to realize efficient melt plasticization and uniform material mixing, with a melting capacity of 350 KGS/Hour.

2.Precise Molding Control: Equipped with Moog 100-point parison wall thickness controller to ensure uniform wall thickness and wide-range adjustment of tank weight; Combined with PLC system for precise control of temperature, pressure and other parameters.

3.Full-Automatic Production: Integrates automatic feeding, clamping, blow molding and clamping; Only 2 female workers are required for machine operation, and 3-4 personnel for the entire production line.

4.Flexible Adaptation: Supports 1-6 layers of product production, applicable to 200-1000L horizontal tanks and 1200L vertical tanks; Equipped with hydraulic mold changing device for easy mold replacement.

5.Auxiliary Guarantee: Features intelligent temperature control (Peak Shifting and Progressive Heating), multiple cooling systems, safety protection (protective cover and guardrail); Multi-directional adjustment of blow seat and robot to adapt to different product specifications.

Product Advantages

1.Energy Efficiency: Adopts frequency control motor system + servo hydraulic system, with average low energy consumption, saving more than 40% energy compared with traditional equipment; High plasticizing efficiency and output far exceeding rotational molding machines.

2.Raw Material Saving: Saves 25%-35% raw materials compared with rotational molding tanks, reducing production costs.

3.High Product Quality: Uniform product wall thickness and much better impact resistance than rotational molding tanks; Core components from well-known brands ensure stable equipment operation and consistent product quality.

4.Easy Operation: Full-automatic operation with low threshold; Multi-language interface suitable for users in different regions; Reasonable equipment structure for easy maintenance.

5.Wide Adaptability: Can produce multi-specification and multi-layer plastic tanks, suitable for HDPE/HMW-HDPE raw materials, meeting storage needs of different industries.

Product Features

1.High-End Core Components: Key components are from international/domestic well-known brands, such as electrical system, Moog wall thickness control system, Yuken hydraulic components, Sumitomo oil pumps, Italy Phase servo system, ensuring equipment reliability and durability.

2.Humanized Structural Design: Lifting frame for easy operation and maintenance; Multi-row screw template for easy fixture fixing; Centralized arrangement of pneumatic valves for convenient maintenance; Multi-language interface adapting to different user needs.

3.Energy Conservation and Environmental Protection: Combination of servo system and frequency conversion control greatly reduces energy consumption; High raw material utilization rate reduces waste; Efficient cooling system reduces energy waste.

4.Safety and Stability: Equipped with complete protective cover and guardrail to ensure operation safety; Multiple detection and control mechanisms to avoid overload, overheating and other faults; 1-year warranty, with professional engineers for installation, commissioning and training to ensure long-term stable operation.

5.Strong Customization Adaptability: Can adjust product layers and specifications according to customer needs with easy mold replacement; AC contactor can be used in high-temperature areas to adapt to different environmental conditions.

Production process

Application Scenarios

This 1000L six-layer full-automatic plastic blow molding machine is mainly used to produce 200-1000L horizontal tanks and 1200L vertical tanks. The products are made of HDPE/HMW-HDPE with excellent corrosion resistance and impact resistance, widely applied in the following scenarios:

Industrial Liquid Storage: Storage of acid-base solutions in chemical industry, lubricating oil in machinery industry, cleaning fluid in electronic industry, etc.
Agricultural Applications: Storage of agricultural irrigation water, pesticide diluent, fertilizer solution, etc.
Municipal and Civil Scenarios: Urban secondary water supply tanks, domestic water storage tanks in communities, schools and hospitals, chemical storage tanks in sewage treatment plants, etc.
Other Scenarios: Raw material storage in food industry (such as edible oil, fruit juice semi-finished products), electrolyte storage in new energy industry and other fields requiring high safety and stability of storage tanks.

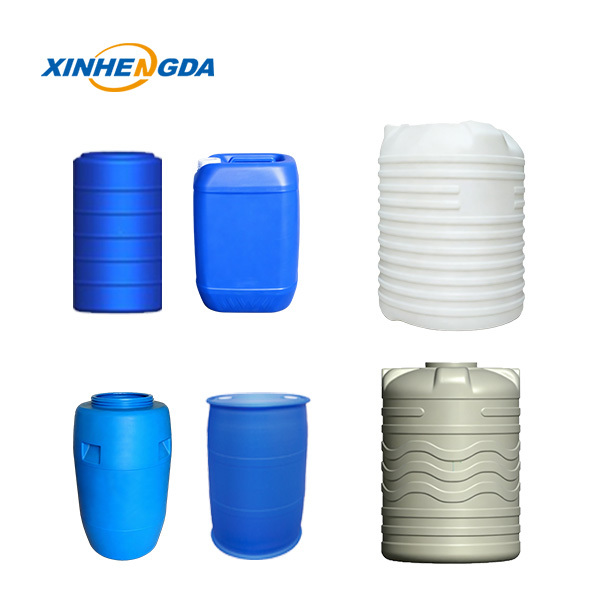

1000L 6 Layer Full Automatic Extrusion Blow Molding Machine Precision Industrial Grade 1

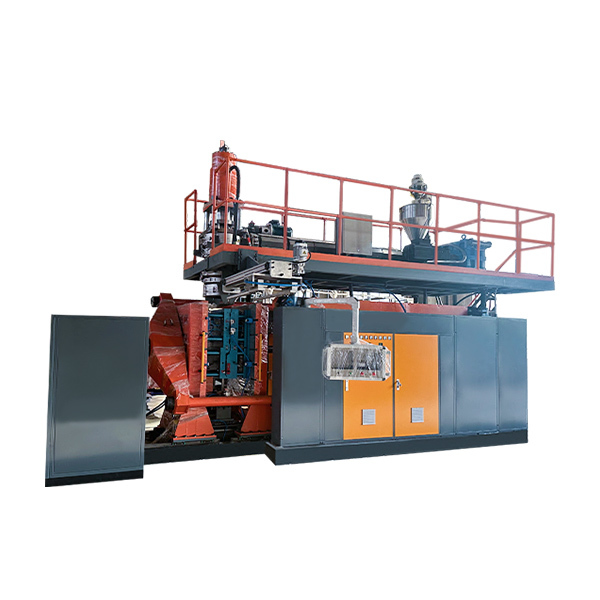

1000L 6 Layer Full Automatic Extrusion Blow Molding Machine Precision Industrial Grade 2

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	1000L 3 Layer

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
