Detail Information

Dimensions:	Custom Sizes Available	Productname:	Large-scale Plastic Blow
Customization:	Logo Printing And Design Customization Available	Usage:	Storage Tanks, Containers, Industrial Packaging
Coloroptions:	Customizable	Productionmethod:	Blow Molding
Capacity:	Up To 2000 Liters	Durability:	UV Resistant, Corrosion Resistant
Highlight:	plastic multi layer blow moulding machine , multi layer blow moulding machine intelligent , plastic multi layer blow molding machine

Product Description

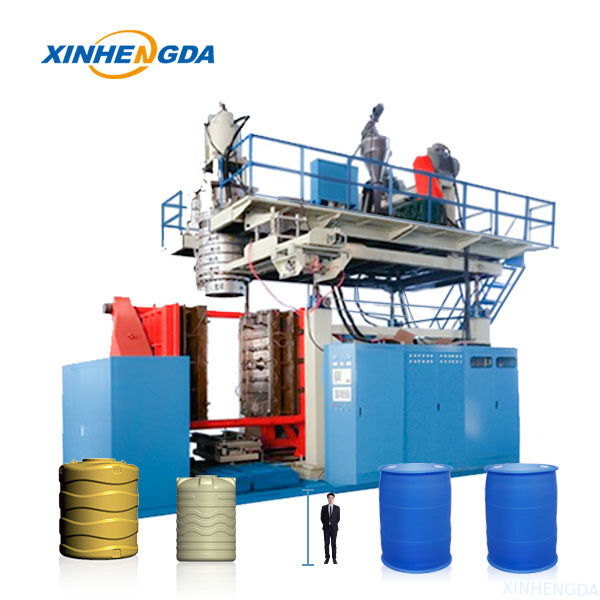

2000L 4-layer blow molding machine large plastic manufacturing machine

Product Introduction

The 2000L Plastic Blow Molding Machine is produced by Weifang Xinhengda Machine Co., Ltd. in Shandong Province. It complies with GB13508-92, SN04499.2-95 standards and holds CE and ISO9001:2008 certifications. Using HDPE/HMW-HDPE as raw material, it can produce plastic storage tanks with a capacity of 500-2000L. Featuring a fully automatic control design and high-quality core components, it integrates efficiency, energy-saving, and ease of operation.

Tabular Parameters

(I) Output Parameters

CAPACITY	WEIGHT(KG)	OUTPUT(PCS/PER HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

(II) Core Configuration Parameters

Item	Details
Extruder	Screw diameter: 90/90/90/90MM, L/D ratio: 30:1, material: 38CrMoAl, motor power: 55KW×4
Machine Die Head	100L accumulator type, electromagnetic heating + metal heating ring, power: 64KW
Clamping Unit	3-piece type with 2 pull bars, maximum clamping force: 2000KN, platen size: H1900×W1800MM
Overall Machine Specifications	Dimension (L×W×H): 11×8×6.5M, weight: 50-75TON, total power: 404.5KW, average power consumption: 220KW
Melting Capacity	≈700KGS/Hour
Product Layers	1-4 layers
Core Component Brands	Siemens (PLC/electrical components), MOOG (wall thickness control), YUKEN (hydraulic valves), etc.

(III) Operating Condition Parameters

Category	Requirements
Working Environment	Indoor and ventilated, away from magnetic fields, temperature: 0-45℃, humidity: ≤90%
Workshop Conditions	Bridge crane height ≥9m, plant foundation concrete ≥18cm
Power Source	3-phase 4 wires, 380V-415V, 50Hz
Cooling Water	Water temperature ≤20℃, water pressure ≥0.3Mpa, water consumption: 50T/H
Air Source	Air source pressure: 0.8Mpa, forming air pressure: 0.2-0.65Mpa

Product Core Functions

1.Fully Automatic Production: Equipped with an adjustable robot to realize automatic product picking and placing without manual intervention.

2.Precision Control: Adopts MOOG 100-point parison thickness controller for uniform axial wall thickness and wide-range adjustment of tank weight.

3.Efficient Plasticization: IKV-designed screw ensures full material mixing with a melting capacity of 700KGS/Hour.

4.Intelligent Operation: Siemens PLC + touch screen with multi-language interface for easy operation.

Product Competitive Advantages

1.Energy and Material Saving: Saves 25%-35% raw materials compared to roto-molded tanks; servo hydraulic system saves over 40% energy, and extruder upgrade saves an additional 10% energy.

2.High Efficiency: Higher output than roto-molding machines, with 7-9 pieces per hour for 2000L specification.

3.Outstanding Quality: Strong impact resistance, flawless product quality, and multiple international certifications.

4.Easy Operation and Maintenance: Only 2 people are needed to operate the main machine, and 3-4 people for the entire production line; modular core components for convenient maintenance.

Product Distinctive Features

1.Quality Assurance: Implements strict quality control policies; all products undergo multi-parameter testing, with 1-year warranty for machines and molds after installation.

2.Flexible Adaptability: Capable of producing 1-4 layer products, suitable for 500-2000L vertical/horizontal storage tank requirements.

3.High-End Configuration: Core components are international renowned brands, such as Italy Phase servo motor and Taiwan Yuken hydraulic valves, ensuring stable performance.

4.Professional Services: Provides free technical training, on-site installation and commissioning by engineers, and on-site guidance for operation and maintenance.

Application Scenarios

Suitable for producing 500-2000L large-capacity HDPE plastic storage tanks, widely used in chemical industry, agriculture, water treatment, food processing and other industries for storing liquid raw materials, finished products, irrigation water, etc. Especially suitable for industrial and civil fields with high requirements for tank impact resistance and sealing performance.

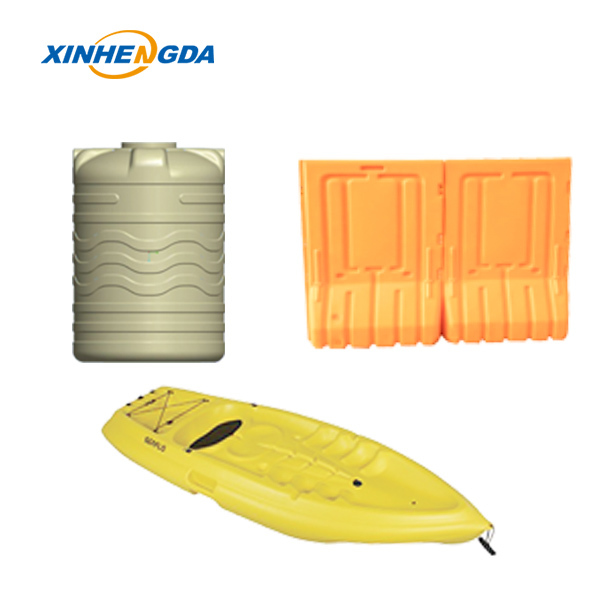

2000 Liters Large Plastic Multi Layer Blow Moulding Machine Intelligent 0

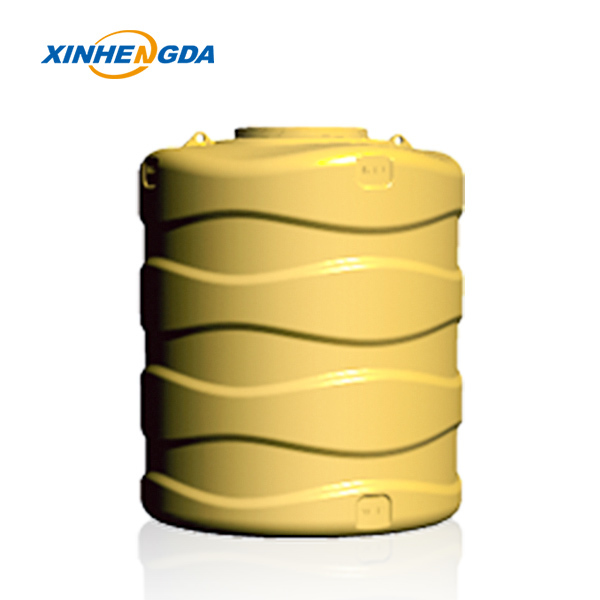

2000 Liters Large Plastic Multi Layer Blow Moulding Machine Intelligent 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	1000L 4 Layer

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
