Detail Information

Molding Method:	Blow Molding	Material Compatibility:	Various Thermoplastic Materials
Type:	Plastic Blow Molding Machine	Durability:	High Impact Resistance
Productionmethod:	Blow Molding	Coloroptions:	Customizable
Dimensions:	Custom Sizes Available	Surfacefinish:	Smooth Or Textured
Weight:	Varies By Size, Typically 50-200 Kg	Applications:	Storage Tanks, Containers, Industrial Use
Highlight:	4layer plastic extrusion blow moulding machine , 4layer plastic blow moulding machine , 500 liter plastic blow moulding machine

Product Description

500 Liter 4 Layer Extrusion Plastic Blow Molding Machine machine manufacturer

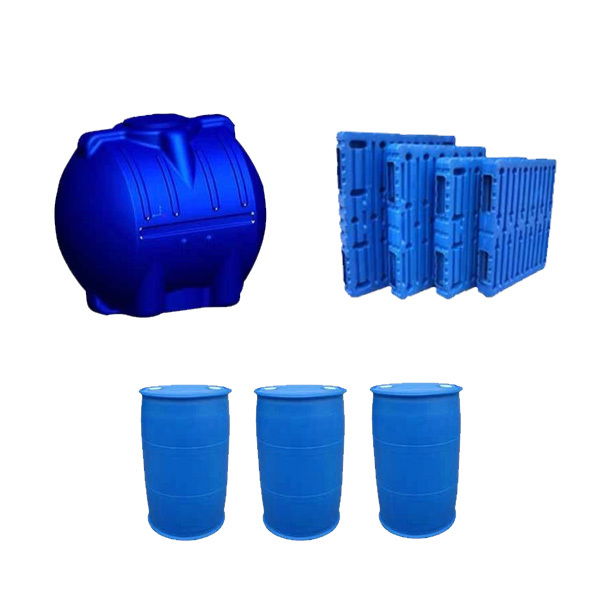

It is suitable for producing PE,HDPE,PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 25L.
Double station single die head design, Stable and efficient.
Most components of the blow-molding machine are from famous world brand.
Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Product Introduction

The 500L Three Layers Blow Molding Machine is independently produced by Weifang Xinhengda Machine Co., Ltd. The machine is mainly applicable to processing HDPE (High-Density Polyethylene) raw materials, with a standard weight design. It adopts advanced production technology and configuration to realize efficient and stable production of large-capacity plastic products.

Tabular Parameters

Key Attributes	Specifications
Plastic Processed	HDPE, PE, HDPE/PP
Clamping Force (kN)	1800
Automation	Automatic
Voltage	380v-415v
Key Selling Points	Multilayer
Warranty	1 Years
PLC Brand	Siemens
Core Components	PLC, Gearbox, Motor, Gear, Pump
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Output (kg/h)	500 kg/h
Place of Origin	Shandong, China
Power (kw)	500
Weight (t)	70
Brand Name	SEHENDA
Dimension (LWH)	11M8M6.5M
Screw L/D Ratio	30
Screw Diameter (mm)	100 mm
Screw Heating Power (kw)	80 kW
Extruder Motor Power (kw)	75 kW
Mold Platen Size (Width) (mm)	1800 mm
Mold Platen Size (Height) (mm)	1900 mm
Air Pressure (mpa)	0.65 MPa
Air Consumption (m³/min)	2 m³/min
Die Head Heating Power (kw)	90 kW
Blow Moulding Type	Extrusion Blow Moulding
After-sales Service Provided	Online support
Material	HDPE
Certification	CE ISO
Packaging Details	Simple packaging
Port of Dispatch	QINGDAO
Selling Units	Single item
Supply Ability	20 sets per Year

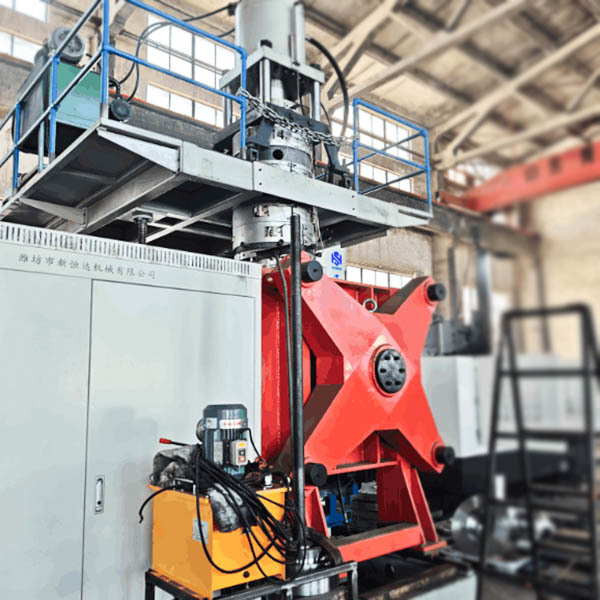

500 Liter 4Layer Plastic Extrusion Blow Moulding Machine Manufacturer 0

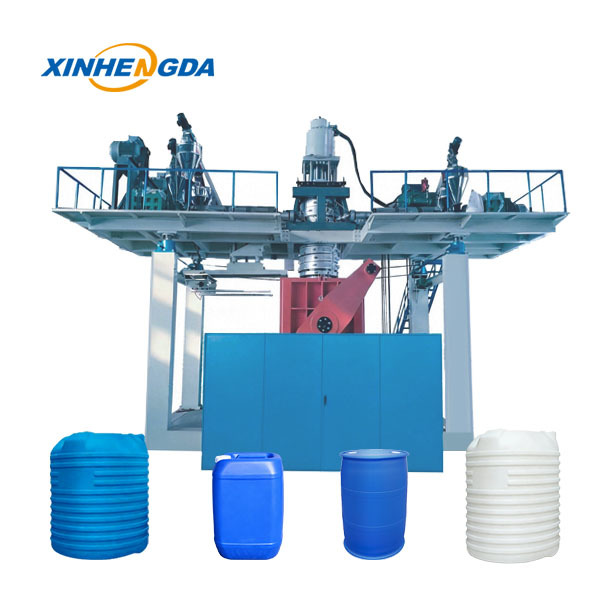

500 Liter 4Layer Plastic Extrusion Blow Moulding Machine Manufacturer 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
