Detail Information

Year:	NEW	Material Applicable:	PE/PP/HDPE/LDPE/PETG/PVC
Machinetype:	Extrusion Blow Molding	Clamping System:	Toggle Type Clamping System
Shipping:	Sea	Product:	Plastic Bottle
Applicable Materials:	PE PP PVC PA	Complete Production Line:	Provide Complete Production Line
Clampingforce:	Varies (e.g., 1000-5000 KN)	Useful:	Plastic Blow Molding Machine
Highlight:	automatic hdpe plastic blow molding machine , hdpe plastic blow molding machine 1000l , automatic hdpe blow molding machine

Product Description

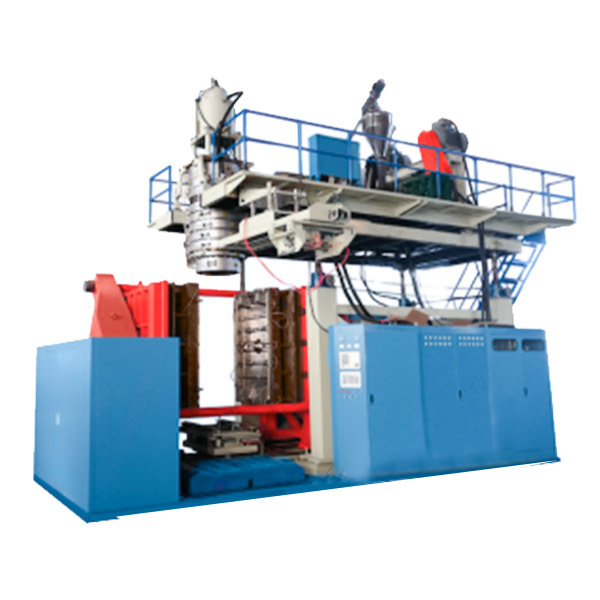

1000L 4-Layer Fully Automatic Industrial-Grade Blow Molding Machine

The screw features an IKV design, delivering high-efficiency melting to ensure thorough material homogenization.
A variable frequency motor control system is adopted to cut down on power consumption.
Equipped with a Moog 100-point parison thickness controller, it guarantees uniform wall thickness and allows for wide-range adjustment of tank weight.
Boasting full automation and user-friendly operation, the machine can be run by two female operators, and the entire production line only requires 3–4 personnel in total.
It offers higher output compared to rotational molding machines.
It saves 25%–35% of raw materials relative to rotomolded tanks.
It exhibits superior impact resistance when contrasted with rotomolded tanks.
The robotic arm is capable of automatically removing finished products from the machine.

Product Introduction

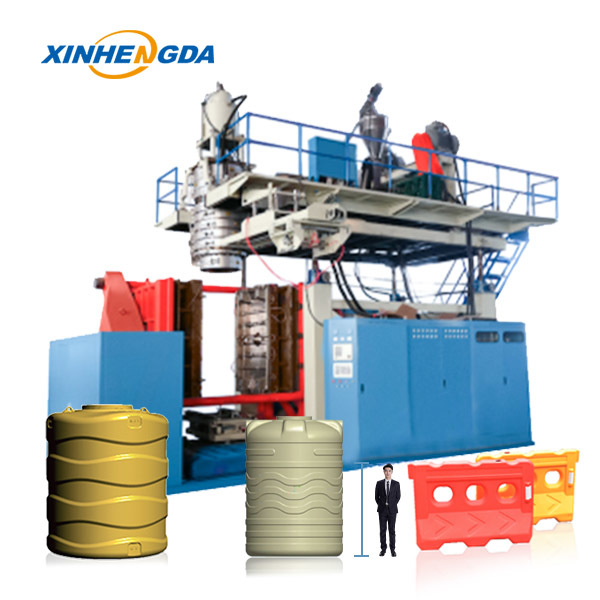

This is a fully automatic 4-layer plastic blow molding machine independently developed by Weifang Xinhengda Machine Co., Ltd., designed specifically for fabricating 200–1000L water tanks (vertical or horizontal models) from HDPE and HMW-HDPE raw materials. It meets the specifications of GB13508-92 and SN04499.2-95 standards, and holds valid CE and ISO9001:2008 certifications. With its high automation, energy-efficient design, and stable working performance, the entire production line can be operated by just 3–4 workers.

Tabular Parameters

1.Output Capacity

Capacity	Weight (KG)	Output (PCS/HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Working Conditions

Category	Requirements
Working Environment	Indoor and well-ventilated location required; must be kept away from magnetic field interference; ambient humidity should be ≤90%; operating temperature range is 0–45℃.
Plant Foundation	Concrete thickness ≥18cm; bridge crane height ≥9m
Power Source	3-phase 4 wires, 50Hz, 380V-415V
Cooling Water	Temperature ≤20℃; pressure ≥0.3Mpa; consumption 50T/H
Air Source	Supply pressure 0.8Mpa; forming pressure 0.2-0.65Mpa

3. Core Technical Specifications

Item	Details
Extruder	Screw dimension: 80/80/80/80MM in diameter; length-to-diameter ratio (L/D): 30:1; screw material: 38CrMoAl alloy steel; matched power rating: 45KW×4.
Machine Die Head	50L accumulator type; material 38CrMoAl & 45# steel; heating power 50KW
Clamping Unit	3-piece type with 2 pull bars; clamping force 1000KN; platen size H1700×W1500MM
Total Power	329.5KW; average consumption 180KW
Machine Dimension	8×10×6.5M; weight 65TON
Melting Capacity	≈500KGS/Hour
Product Layers	1-4 layers

4. Key Component Brands

Component Category	Brands
Low-Voltage Apparatus	SIEMENS
Pneumatic System	SNTC, AirTac
Hydraulic Components	YUKEN (Taiwan), DICHTOMATIK (Germany), DZ (Taiwan)
Servo System	PHASE (Italy, motor), DELTA (Taiwan, control), SUMITOMO (Japan, pump)
Wall Thickness Control	MOOG (Japan, 100-point controller)
PLC & Touch Screen	SIEMENS (multi-language interface)

5. Price & Logistics

Item	Details
Machine/ Mold Price	Contact for quotation (servo hydraulic system included; extruder upgrade available for 10% energy saving)
Auxiliary Machines	Recommended to purchase locally (air compressor 22KW, air tank 2m³, cooling machine 30HP, crusher 37KW)
Packaging	4×40’OH + 1×20’GP containers
Delivery Time	4 months after deposit receipt
Payment Term	30% advance by T/T; balance by T/T or L/C at sight before shipment

Product Functions

1.Fully automated operation mode: Comes with an adjustable robotic unit for automated finished-product retrieval.

2.High-precision control system: A Moog 100-point parison thickness controller is fitted to guarantee consistent wall thickness distribution.

3.Smart heating technology: Peak-shifting progressive heating method is adopted to cut down on overall energy consumption.

4.Multi-functional production capability: Supports the fabrication of 1–4 layer products; suitable for manufacturing water tanks with a capacity range of 200–1000L.

Product Advantages

1.Cost-efficient material utilization: Achieves 25%–35% raw material savings in comparison with roto molding machines.

2.Energy-efficient system design: Adopts frequency control plus servo system to cut power consumption, with the hydraulic system realizing an energy saving effect of ≥40%.

3.Enhanced performance capabilities: Exhibits superior impact resistance when contrasted with roto tanks, and has a higher production output than roto molding machines.

4.Easy-to-operate design: The main machine is operable by 2 workers, and it is fitted with a convenient multi-language interface for global users.

Product Features

1.Quality guarantee system: Implements rigorous quality control protocols; every single product undergoes comprehensive testing to ensure faultless operational performance.

2.Durable core components: Selects internationally renowned brands—including SIEMENS, MOOG and YUKEN—for all key machine parts.

3.Full-scope after-sales services: Provides complimentary training sessions, available either on-site or at the manufacturer’s factory; includes a 1-year warranty period starting from the completion of installation.

4.Professional technical support: Assigns experienced engineers to conduct on-site installation and on-job worker training, with travel and accommodation expenses borne by the buyer.

Application Scenarios

Specialized in the mass production of 200–1000L HDPE water tanks (both vertical and horizontal models). It is suitable for a wide range of sectors as follows:

Civil applications: Domestic water storage, rainwater collection and utilization

Agricultural sector: Water storage for irrigation, storage of pesticides and fertilizers
Industrial field: Storage of chemical liquids, reserve of industrial water supplies
Commercial uses: Water supply for hotels, shopping markets and public infrastructure

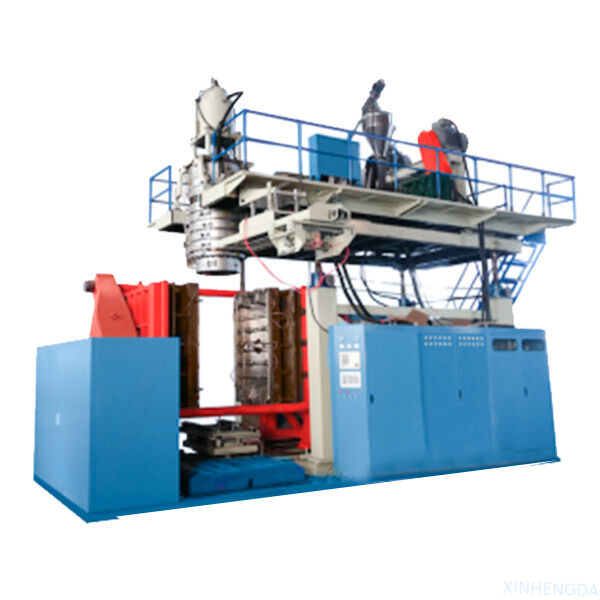

IKV Design Fully Automatic Hdpe Plastic Blow Molding Machine 1000L 4Layer 1

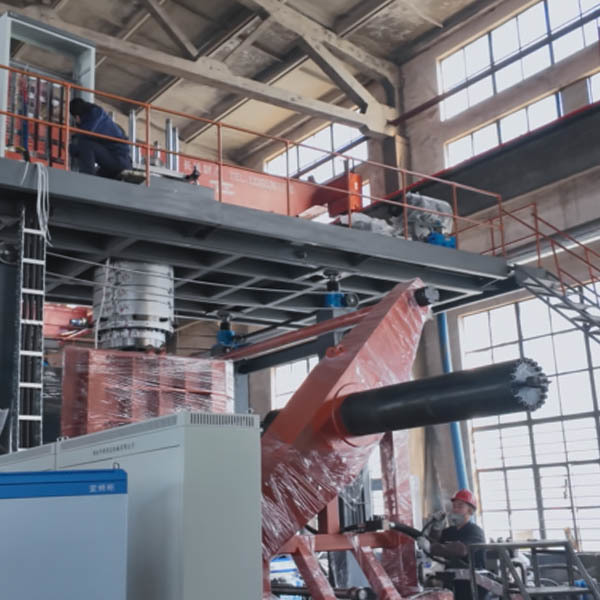

IKV Design Fully Automatic Hdpe Plastic Blow Molding Machine 1000L 4Layer 2

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	1000L 3 Layer

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+

IKV Design Fully Automatic Hdpe Plastic Blow Molding Machine 1000L 4Layer
