Detail Information

Layer Design:	Double Layer Design	Heating Power:	2.8kw
Oem:	Yes	Productionmethod:	Blow Molding
Useful:	Plastic Blow Molding Machine	Key Selling Points:	Long Service Life
Machine Name:	Extrusion Blow Molding Machine	Speed:	High
Automation:	Automatic	Year:	NEW
Highlight:	Plastic extrusion blow moulding machine 10000L , 3-6 ply co-extrusion water tank maker , High capacity blow molding machine

Product Description

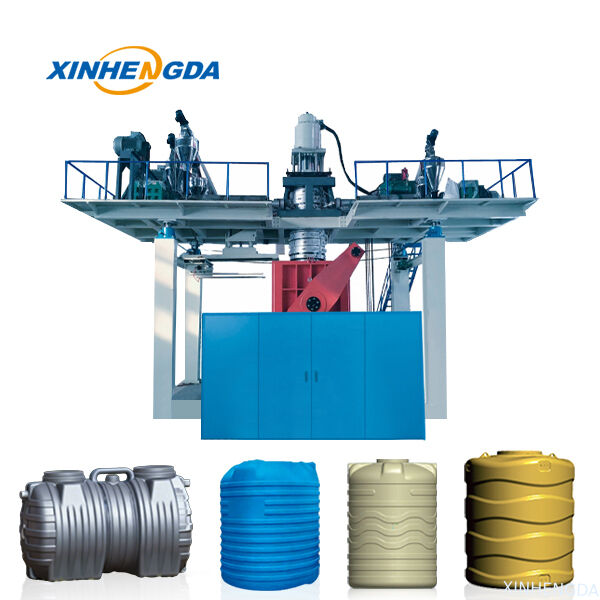

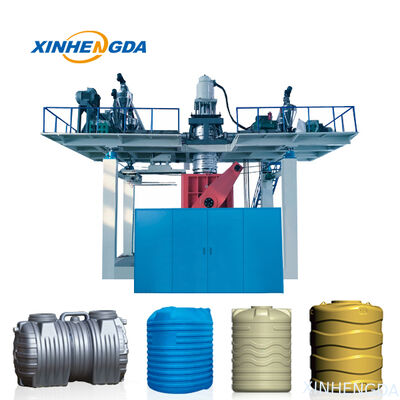

Plastic Extrusion Blow Moulding Machine High Capacity 10000L 3-6 Ply Co-extrusion Water Tank Maker

Product Introduction

This industrial-grade 10000L tank blow molding unit delivers excellent production efficiency for customized manufacturing demands.
Independently researched and manufactured by a Shandong manufacturer with 30 years of experience in super-large blow molding equipment, the unit is optimized for mass production of giant plastic water tanks and hollow packaging containers.
It effectively solves two common industry defects of large tank processing: low production output and unstable molding accuracy.

Tabular Parameters

Parameter	Details
Applicable Processable Plastic Materials	HDPE, PE
Mold Clamping Tonnage	2000 KN
Automatic Operation Type	Automatic
Voltage	380-415V
Key Selling Point	Multilayer
Warranty	1 Year
No. of Screw	7
Core Components	Hydraulic Pump PLC Control System, Frequency Converter, Bearing Protective Cover, Industrial Motor, Transmission Gear,
Video Quality Inspection	Provided
Mechanical Equipment Inspection Report	Provided
Production Origin	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Equipment Dimension	1158 m
Screw L/D Ratio	30
Extruder Screw Outer Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Station Length	1900 mm
Mold Mounting Station Dimension	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Extrusion Die Head Heating Rated Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	According to customer requirements (container, etc.)
Port of Dispatch	QINGDAO
Annual Supply Capacity	35 Units

Product Core Functions

This newly upgraded 10000L large blow molding machine is designed for standardized production of super-large plastic water tanks and industrial hollow containers. Operators can precisely adjust the product wall thickness and overall weight within 1mm to 10mm. With high molding accuracy, uniform wall thickness and strong anti-deformation capability, it fulfills customized bulk orders of large plastic containers for civil and industrial usage scenarios.

Product Competitive Advantages

Lower Labor Cost

Highly automatic configuration cuts manual operations greatly. Two skilled operators can run the whole line, lowering long-term labor expenditure and daily management costs.

Comprehensive Free Technical Training

We offer 14 days of on-site free training covering operation commissioning, parameter debugging, daily maintenance and fault troubleshooting. Staff can master skills quickly and put the machine into formal production fast.

Strong Material Compatibility

Optimized extrusion and molding structure supports stable processing of HDPE, PE and other mainstream plastics, adapting to diverse raw materials and customized production needs of different industries.

Whole-Stringent Quality Supervision

The whole production process is recorded and monitored by video. Complete test reports and qualification certificates are delivered before shipment to meet international export standards.

Famous Brand Core Components

PLC, inverter, driving motor, hydraulic pump adopt famous brand parts. They ensure stable operation, low failure rate and longer service life to reduce later maintenance cost.

Decades of Professional R&D Strength

We have 30 years of professional experience in large blow molding equipment R&D and manufacturing. Continuous structural and technical upgrades guarantee stable quality for global plastic processing manufacturers.

Product Distinctive Features

Intelligent One-Click Automatic Control

Equipped with integrated PLC control system, the machine supports one-click start-up. Extrusion, mold closing, blow molding, cooling and demolding are executed automatically in order to guarantee stable operation and high production efficiency.

Multi-Layer Co-Extrusion Molding Technology

The synchronous multi-layer blow molding process strengthens the pressure resistance, corrosion resistance and sealing performance of large water tanks, greatly enhancing the market competitiveness of finished products.

Flexible Custom Parameter Configuration

Tank weight, wall thickness and molding parameters are adjustable freely. The machine can produce large containers of various specifications to meet customized market orders.

High-End Accessories Ensure Stable Continuous Operation

Adopting high-power precision core components, the machine operates stably for long hours with low vibration and noise, ideal for round-the-clock industrial mass production.

Application Scenarios

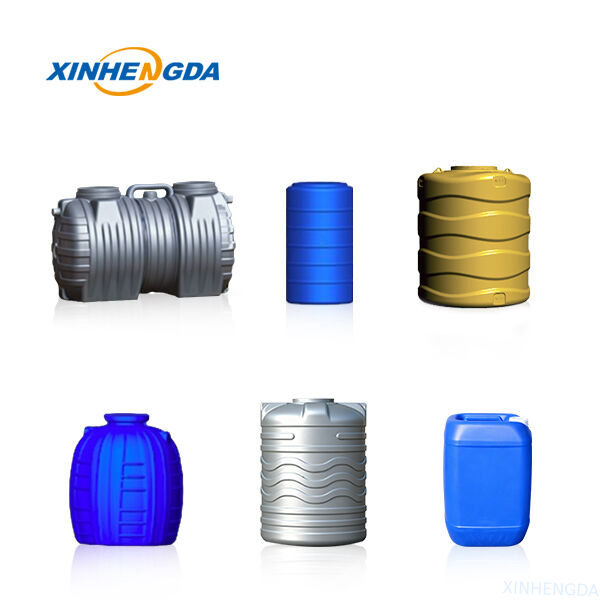

This 10000L large blow molding machine is designed to produce industrial containers and plastic water tanks of 500L–10000L. Beyond storage tanks, it efficiently manufactures plastic pallets, environmental trash cans, road barriers, plastic septic tanks and other large hollow plastic products with wide application scope.

The equipment passes international quality inspection standards and sells well in Southeast Asia, South America, Europe and other overseas regions. High output, stable operation and energy-saving performance make it highly recognized by plastic manufacturers, becoming the optimal equipment for mass production of large hollow plastic products.

Plastic Extrusion Blow Moulding Machine High Capacity 10000L 3-6 Ply Co-extrusion Water Tank Maker
