Detail Information

Surfacefinish:	Smooth Or Textured	Dimensions:	Custom Sizes Available
Productname:	Large-scale Plastic Blow	Coloroptions:	Customizable
Applications:	Storage Tanks, Containers, Industrial Use	Customization:	Logo Printing And Design Customization Available
Chemicalresistance:	Resistant To Most Chemicals	Material:	High-density Polyethylene (HDPE)
Highlight:	textured extrusion moulding machine , extrusion moulding machine 2000l , 2000l hdpe plastic blow molding machine

Product Description

2000L Blow molding machine Machinery manufacturer high quality Exquisite

Product Introduction

The 2000L Multi-layer Plastic Blow Molding Machine (supports 1-4 layers) is manufactured by Weifang Xinhengda Machine Co., Ltd. It complies with GB13508-92 and SN04499.2-95 standards, and is certified with CE and ISO9001:2008. Using HDPE/HMW-HDPE as raw material, it focuses on the mass production of 500-2000L water tanks. Featuring full automation, high efficiency, energy saving, and high raw material utilization, the whole machine adopts high-quality components such as Siemens PLC and MOOG wall thickness control system to ensure production stability and product quality.

Tabular Parameters

1. Output Parameters

CAPACITY	WEIGHT (KG)	OUTPUT (PCS/HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Core Specification Parameters

Item	Details
Extruder	Screw diameter: 90/90/90/90MM; L/D ratio: 30:1; Material: 38CrMoAl; Melting capacity: ≈700KGS/Hour
Machine Die Head	100L accumulator type; Electromagnetic heating + stainless steel heating ring; Power: 64KW
Clamping Unit	3-piece type with 2 pull bars; Recommended clamping force: 1250KN (Max 2000KN); Platen size: 1900×1800MM
Overall Machine Parameters	Dimension: 11×8×6.5M; Weight: 50-75TON; Total power (4 layers): 404.5KW; Average power consumption: 220KW
Working Conditions	Indoor ventilated environment; Temperature: 0-45℃; Humidity: ≤90%; Power supply: 3-phase 4-wire 380V-415V; Water pressure: ≥0.3Mpa

3. Key Component Brands

Component Category	Brand/Model
Electrical System	Siemens PLC, Touch Screen, Temperature Controller
Wall Thickness Control System	MOOG (Japan, 100 points)
Hydraulic Components	Yuken (Taiwan, China), Phase Servo Motor (Italy)
Inverter & Servo	Delta (Taiwan, China)
Screw Motor	HT HILECTRO Servo Motor

4. Price & Delivery Related

Category	Details
Payment Term	30% advance payment by T/T; Balance paid by T/T or L/C at sight after pre-shipment inspection
Delivery Time	4 months after receiving the deposit
Packaging	4×40’OH containers + 1×20’GP container
Warranty	1-year warranty for the whole machine and molds after installation

Product Core Functions

1.Fully automatic production: Robotic arm takes out products automatically; 2 people can operate the main machine, and only 3-4 people are needed for the whole production line.

2.Precise control: MOOG 100-point wall thickness control ensures uniform product thickness and wide-range adjustment of tank weight.

3.Efficient plasticizing: IKV-designed screw ensures full raw material mixing; Plasticizing capacity reaches 700KGS/Hour.

4.Intelligent regulation: Frequency conversion control system + Delta servo hydraulic system, with fast response and quick pressure boost

Product Competitive Advantages

1. Easy to operate: Only 2 women can operate the machine, and the whole production line only needs 3 or 4 people.

2. High efficiency: Higher output compared with roto molding machine; Melting capacity reaches 650KGS/H.

3. Cost-saving: Saves 25% - 35% raw material compared with roto tanks; Servo system saves more than 40% energy.

4. Superior product quality: Perfect impact resistance compared with roto tanks; Uniform product thickness.

5. Reliable performance: Adopts well-known brand components (Siemens, MOOG, Yuken, etc.) for stable and durable operation.

Product Distinctive Features

1.Energy & material saving: Saves 25%-35% of raw materials compared to rotational molding machines; Servo system saves over 40% energy; Extruder can save an additional 10% energy after upgrade.

2.Higher output: Superior production efficiency than rotational molding machines (e.g., 7-9 pieces of 2000L products per hour).

3.Better quality: Products have strong impact resistance and no defects; Strict quality control ensures product consistency.

4.Easy operation & maintenance: Multi-language operation interface; Pneumatic valves are centrally arranged for convenient inspection and repair.

Application Scenarios

Mainly used for the mass production of 500-2000L water tanks made of HDPE, applicable to industrial water storage, agricultural irrigation, civil liquid storage, chemical raw material storage and other scenarios. It can produce vertical or horizontal liquid storage containers.

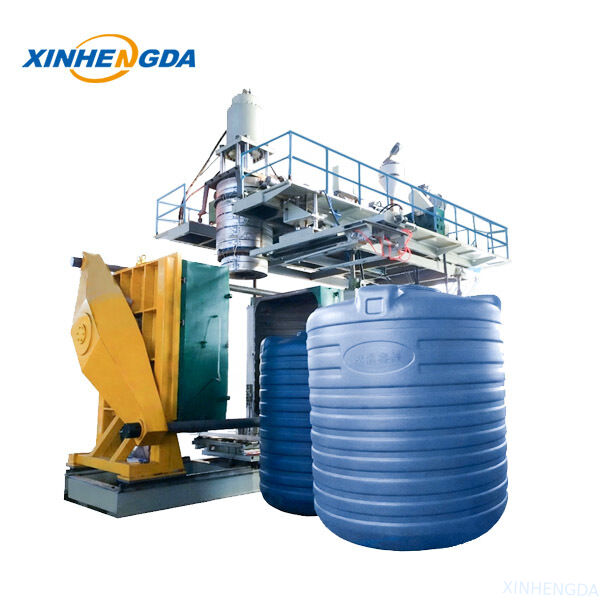

Smooth Or Textured Extrusion Moulding Machine 2000L Hdpe Plastic Blow Molding Machine 0

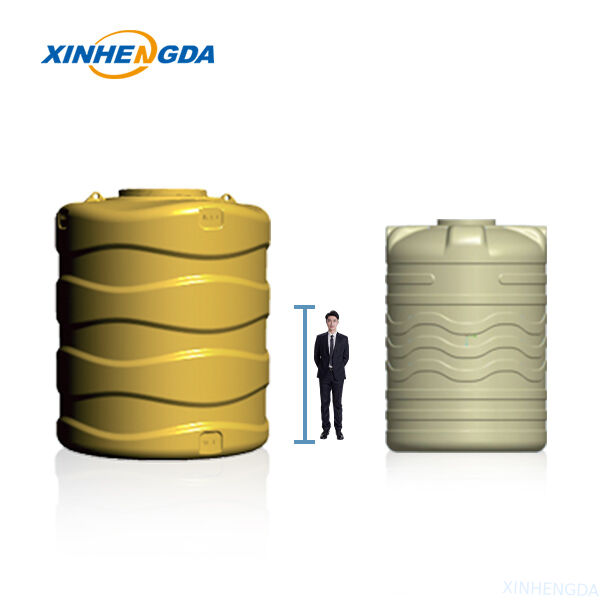

Smooth Or Textured Extrusion Moulding Machine 2000L Hdpe Plastic Blow Molding Machine 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	1000L 3 Layer

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
