Name: 3000L Blowing Mould Machine For Water Tank Blow Moulding Machine
Brand: Weifang Xinhengda Machine Co. Ltd
SKU: 3000L Blowing Mould Machine
Availability: InStock

Detail Information

Dimensions:	Custom Sizes Available	Productname:	Large-scale Plastic Blow
Surfacefinish:	Smooth Or Textured	Productionmethod:	Blow Molding
Applications:	Storage Tanks, Containers, Industrial Use	Coloroptions:	Customizable
Highlight:	3000l blowing mould machine , 3000l water tank blow moulding machine , water tank blowing mould machine

Product Description

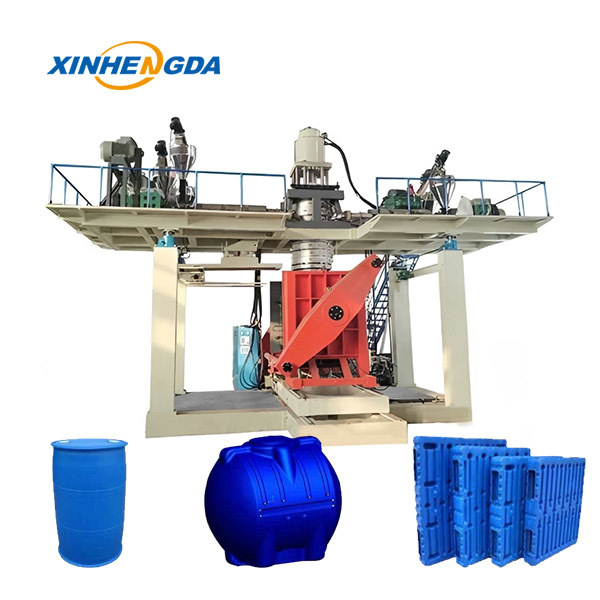

3000L Blowing Mould Machine for Water tank Machinery customization manufacturer

Product Introduction

This is a customizable blow moulding machine specifically for water tanks (Note: The product name is marked as 3000L, but the supporting information corresponds to a 2000L automatic blow moulding machine). Produced by a Shandong-based manufacturer with 30 years of experience in large-scale blow moulding equipment production, it features fully automatic operation to enable mass production of water tanks and other containers. It also provides free operation training and on-site after-sales engineer services.

Tabular Parameters

Parameter	Details
Plastic Processed	HDPE, PE
Clamping Force	2000 KN
Automation Type	Automatic
Voltage	380-415V
Key Selling Point	Multilayer
Warranty	1 Year
No. of Screw	7
Core Components	PLC, Frequency Converter, Bearing Guard, Motor, Gear, Pump
Core Component Brand	Siemens
Video Quality Inspection	Provided
Machinery Test Report	Provided
Place of Origin	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Equipment Dimension	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Station Length	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Die Head Heating Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	According to customer requirements (container, etc.)
Port of Dispatch	QINGDAO
Annual Supply Capacity	35 Units

Product Core Functions

Produce large containers/water tanks; support adjustment of product weight and thickness (1mm-10mm)

Product Competitive Advantages

1.Low labor cost: Only 2 workers are required to operate the entire production line

2.Training support: 2 weeks of free operation training is offered

3.Wide material compatibility: Compatible with HDPE and PE

4.Quality control guarantee: Provides video quality inspection and machinery test report

5.Reliable core components: Adopts branded parts like Siemens

6.Industry experience: 30 years of expertise in manufacturing large blow moulding equipment

Product Distinctive Features

1.Fully automatic operation

2.Supports multi-layer blow moulding

3.Allows customization of product parameters (weight, thickness)

4.High-quality configuration of core components

Application Scenarios

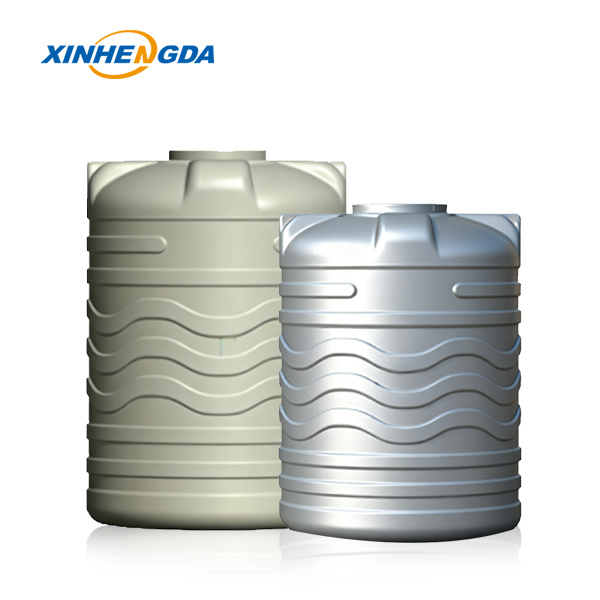

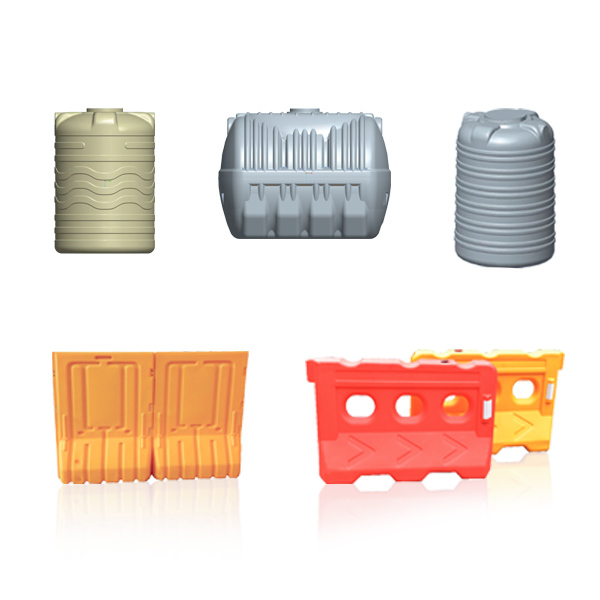

It is suitable for producing 500-2000L containers/water tanks. It can also manufacture pallets, waste bins, road barriers, septic tanks, etc. Its main markets cover Asia, South America and Europe.

3000L Blowing Mould Machine For Water Tank Blow Moulding Machine 0

3000L Blowing Mould Machine For Water Tank Blow Moulding Machine 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	3000L Blowing Mould Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
