Detail Information

Dimensions:	Custom Sizes Available	Condition:	New
Automatic:	Yes	Blow Moulding Type:	Extrusion Blow Moulding,Stretch Blow Moulding,Injection Blow Moulding
Application:	Bottle,water Tank,jerrycan,Jerry Can,	Plastic Processed:	PE,PET,PP,HDPE,PVC
Voltage:	Customized,380V/50HZ,380V,220V/380V,380V/3PH/50HZ	Material:	PP,PE,HDPE/PP/PA,SUS304/316,HDPE
Product Name:	PP PE Plastic Bottle Tank Extrusion Blow Molding Moulding Machine	Speed:	High Speed
Highlight:	energy-saving accumulator head blow molding machine , auto 2000L plastic tank equipment , extrusion blow molding machine with warranty

Product Description

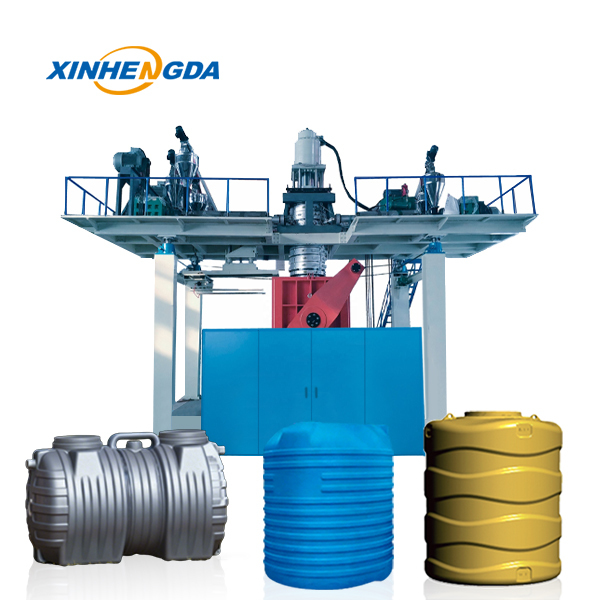

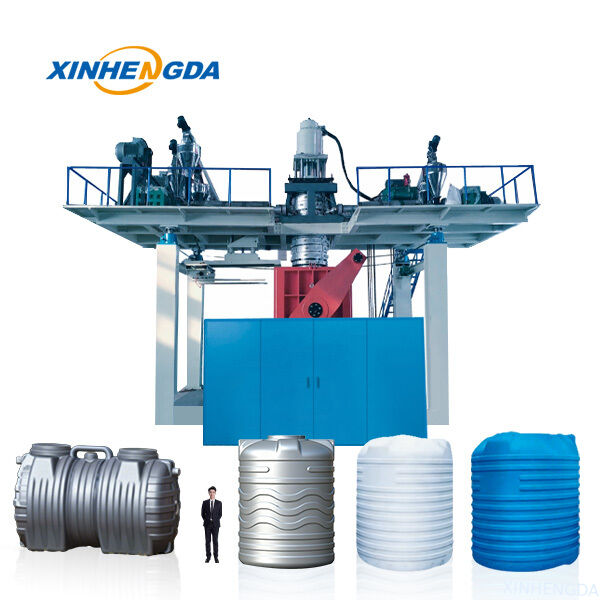

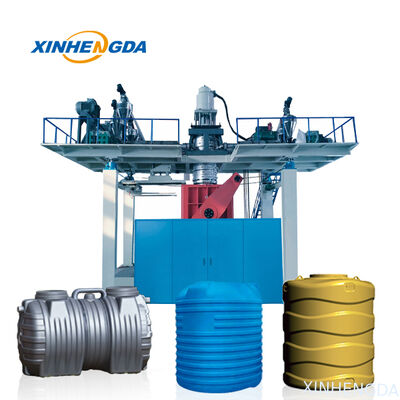

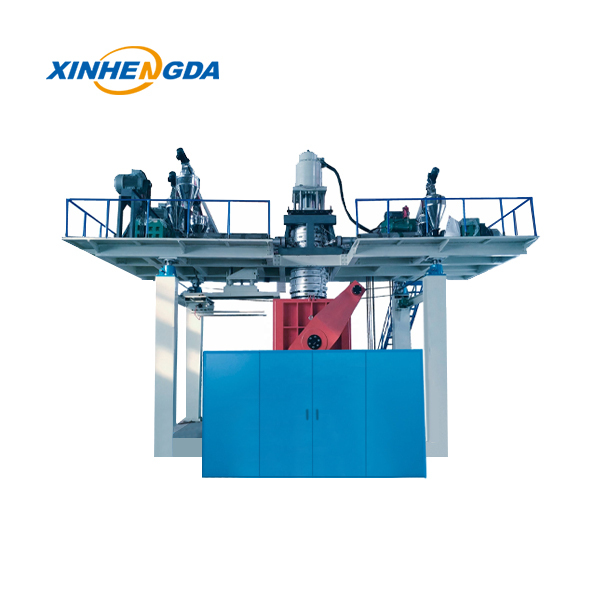

Accumulator head blow molding machine, energy-saving auto 2000L plastic tank equipment

Product Introduction

This 2000L multi-layer blow molding machine with adjustable 1 to 4 layers is manufactured by Weifang Xinhengda Machinery Co., Ltd.

It complies with GB13508-92 and SN04499.2-95 standards, and is certified with CE and ISO9001:2008. Designed mainly for HDPE and HMW-HDPE materials, the equipment supports mass fabrication of 500–2000L water storage tanks.
It features automatic operation, great productivity, low energy consumption and optimized raw material usage. Fitted with top-tier core assemblies such as PLC and MOOG parison thickness controller, the machine ensures steady running and uniform finished product quality.

Tabular Parameters

1. Output Parameters

CAPACITY	WEIGHT (KG)	OUTPUT (PCS/HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Core Specification Parameters

Item	Details
Extruder	Screw diameter: 90/90/90/90MM; L/D ratio: 30:1; Material: 38CrMoAl; Melting capacity: ≈700KGS/Hour
Machine Die Head	100L accumulator type; Electromagnetic heating + stainless steel heating ring; Power: 64KW
Clamping Unit	3-piece type with 2 pull bars; Recommended clamping force: 1250KN (Max 2000KN); Platen size: 1900×1800MM
Overall Machine Parameters	Dimension: 11×8×6.5M; Weight: 50-75TON; Total power (4 layers): 404.5KW; Average power consumption: 220KW
Working Conditions	Indoor ventilated environment; Temperature: 0-45℃; Humidity: ≤90%; Power supply: 3-phase 4-wire 380V-415V; Water pressure: ≥0.3Mpa

3. Key Component Brands

Component Category	Brand/Model
Electrical System	PLC, Touch Screen, Temperature Controller
Wall Thickness Control System	MOOG (Japan, 100 points)
Hydraulic Components	Yuken (Taiwan, China), Phase Servo Motor (Italy)
Inverter & Servo	Delta (Taiwan, China)
Screw Motor	HT HILECTRO Servo Motor

4. Price & Delivery Related

Category	Details
Payment Term	30% advance payment by T/T; Balance paid by T/T or L/C at sight after pre-shipment inspection
Delivery Time	4 months after receiving the deposit
Packaging	4×40’OH containers + 1×20’GP container
Warranty	1-year warranty for the whole machine and molds after installation

Product Core Functions

1.Automated Production Workflow: Robotic arms automatically unload finished products. Only two operators are needed for the main machine, while the whole production line merely requires 3 to 4 workers.

2.Precise Process Tuning: Adopting MOOG 100-point wall thickness controller to maintain even wall distribution. It supports flexible adjustment of tank weight within a broad range according to production demands.

3.Powerful Plasticizing Capacity: The IKV structure screw achieves sufficient material blending. The equipment can reach a plasticizing output of 700KG per hour.

4.Intelligent System Adjustment: Matched with frequency conversion module and Delta servo hydraulic system, the machine features quick response and fast pressure build-up.

Product Competitive Advantages

1.Simple Operation & Labor Saving: The main unit can be managed by two operators, and the full production line only needs 3–4 team members in total.

2.Excellent Productivity: It outperforms rotomolding equipment in output, with a melting capacity hitting 650KG per hour.

3.Lower Production Costs: It cuts raw material consumption by 25%–35% versus rotomolded tanks; the servo hydraulic system achieves over 40% energy reduction.

4.Superior Finished Part Quality: End products feature better impact strength than rotomolded counterparts, alongside uniform and stable wall thickness.

5.Reliable Long-Term Operation: Fitted with world-famous brand components including MOOG and Yuken, supporting continuous stable running with extended service life.

Product Distinctive Features

1.Optimized Energy & Material Utilization: It reduces raw material consumption by 25%-35% when compared to rotomolding equipment. The servo system lowers power draw by over 40%, and the upgraded extruder brings an additional 10% energy saving.

2.Boosted Production Throughput: It achieves higher manufacturing efficiency than rotational molding machines, capable of producing 7 to 9 pieces of 2000L products hourly.

3.Improved Finished Goods Quality: End products have strong impact resistance and are free from defects. Rigorous quality inspection keeps product specifications and performance stable batch after batch.

4.Simple Operation & Servicing: Equipped with a multi-language HMI. Centralized layout of pneumatic valves simplifies routine checking and maintenance tasks.

Application Scenarios

This equipment is developed for mass manufacturing of 500–2000L HDPE storage tanks. It fits industrial water reserve, farm irrigation, domestic liquid storage and chemical raw material containment applications. The unit supports fabrication of both vertical and horizontal liquid holding containers.

Accumulator head blow molding machine, energy-saving auto 2000L plastic tank equipment

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

x*n

Argentina Apr 30.2026

trustpilot.com

Helpful (100)

This mechanical equipment is well-built and runs steadily. It brings an excellent user experience.

Bledar

Albania Apr 30.2026

trustpilot.com

Helpful (100)

The machine runs with high precision and delivers perfect processing results, fully meeting production standards.

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	2000L Heavy-Duty Blow Molding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,D/P
Supply Ability:	90+
