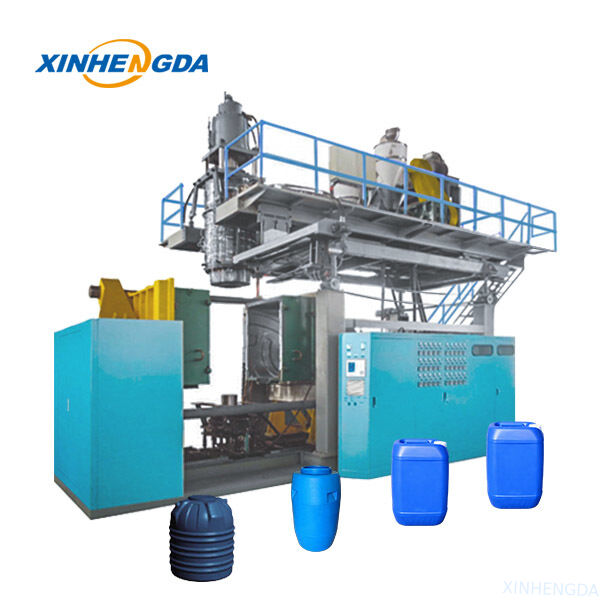

200L Intermittent Extrusion Blow Molding Machine Energy Saving Durable Structure
This blow molding machine supports molding with PE, HDPE, PP, PVC and other plastic feedstocks. It manufactures custom-shaped plastic bottles and storage vessels, with a maximum capacity of 25 liters.Designed with a dual-station single die-head setup, it delivers stable operation and strong production capacity.
All core components of the machine are sourced from internationally reputable suppliers.The full-automatic production workflow improves throughput and reduces energy consumption. It features safe, quick operation and simple daily maintenance.
Developed by Weifang Xinhengda Machinery Co., Ltd, this 200L blow molding machine is purpose-built for PE material forming and fully meets GB13508-92 and SN04499.2-95 industry standards.
Equipped with a dual-station single die head setup, the unit runs on a fully automated production cycle.
Compatible with multiple resin types such as PE, HDPE, PP and PVC, it can fabricate plastic bottles and storage containers of varied shapes, with a maximum product capacity of 25L.
Boasting excellent plasticizing performance, the machine ensures secure operation and hassle-free daily maintenance.
1.End-to-end Automated Line: Combines material loading, parison extrusion, blow forming and automatic part take-out; supports both top-blow and side-blow modes.
2.Accurate Process Regulation: Moog 200-point axial wall thickness control; PLC-based smart thermal management with peak-load progressive heating.
3.Wide Application Range: Versatile manipulator with longitudinal travel, gripper open/close, integrated water cooling and lift-height adjustment; suits 30–125L product sizes.
4.Tool-Free Servicing: Standalone air-supply unit with manifold valve block; rack-mounted cooling lines for tidy routing and zero interference.
1.High Throughput & Stable Operation: Features dual-station single die head configuration. It delivers 180KG/H output with average power consumption of merely 90KW for energy conservation.
2.Trustworthy Build Quality: Vital components sourced from globally famous manufacturers. The main frame adopts 45# and A3 steel, supported by a 12-month warranty.
3.Energy Efficient Design: Quick-response hydraulic system cuts energy usage by over 40%, and intelligent heating module further lowers power consumption.
4.Intuitive Operation: Equipped with multi-language touch display. The clamping unit adopts multi-row screw templates to simplify mold installation.
1.Build Configuration: Triple-screw extruder paired with accumulator die; three-platen clamping mechanism; cast-steel base frame fitted with a lifting platform.
2.Production Traits: End-to-end automatic cycle; servo-valve parison thickness regulation; hybrid water-and-air cooling circuit.
3.Material Flexibility: Works with a broad resin range (PE, HDPE, PP, PVC); accommodates versatile container geometries.
4.Certification & Shipping: Certified to GB13508-92 and SN04499.2-95 standards; shipped in export-grade 40-foot open-top container packing.
Application Scenarios

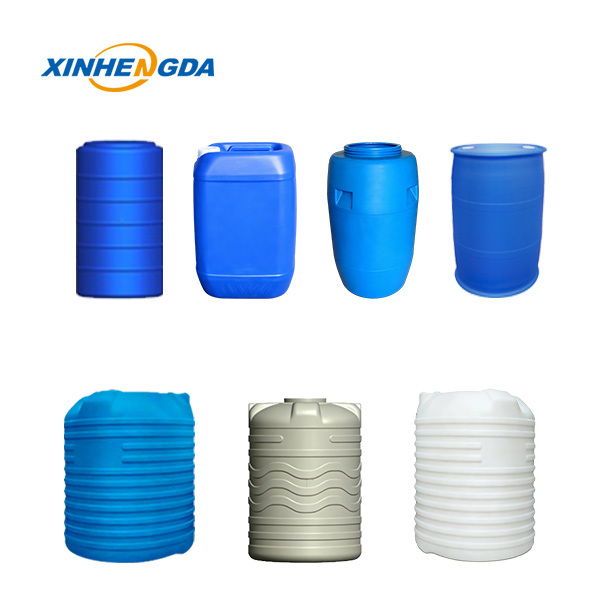

This unit turns out a wide range of plastic bottles and containers from PE, HDPE, PP and PVC, with a top capacity of 25L. It serves packaging production across chemical, food, household chemical and related industries. Installation must be indoors on a reinforced concrete base of at least 16cm, with overhead crane clearance of no less than 5m.
