Name: Large Scale Plastic Production 2000L Automatic Extrusion Blow Molding Machine Heavy Duty
Brand: Weifang Xinhengda Machine Co. Ltd
SKU: 2000L Heavy-Duty Blow Molding Machine
Availability: InStock

Detail Information

Surfacefinish:	Smooth Or Textured	Dimensions:	Custom Sizes Available
Condition:	New	Automatic:	Yes
Blow Moulding Type:	Extrusion Blow Moulding,Stretch Blow Moulding,Injection Blow Moulding	Application:	Bottle,water Tank,jerrycan,Jerry Can,
Plastic Processed:	PE,PET,PP,HDPE,PVC	Voltage:	Customized,380V/50HZ,380V,220V/380V,380V/3PH/50HZ
Color:	Customized,blue,gray,Can Be Customized,White(can Be Customized)	Material:	PP,PE,HDPE/PP/PA,SUS304/316,HDPE
Machine Type:	High Speed Plastic Bottle Making Machine,Extrusion Blow Molding Machine	Product Name:	PP PE Plastic Bottle Tank Extrusion Blow Molding Moulding Machine
Highlight:	2000l automatic extrusion blow molding machine , automatic extrusion blow molding machine heavy duty , plastic extrusion blow molding machine price

Product Description

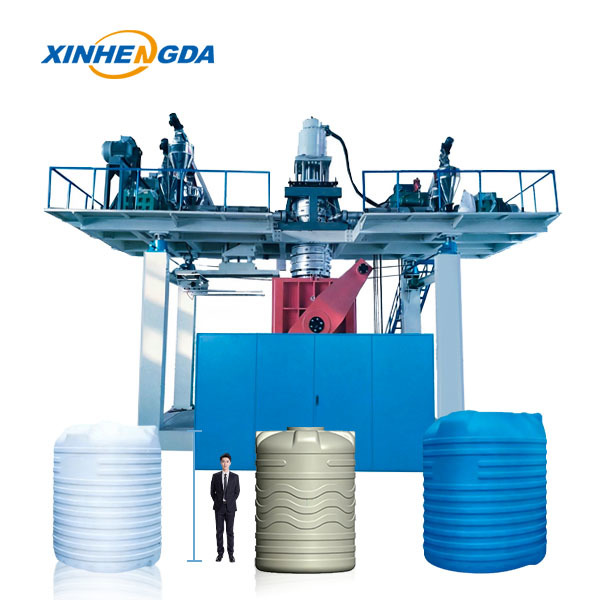

Large-Scale Plastic Production: 2000L Heavy-Duty Blow Molding Machine

Product Introduction

The 2000L Multi-layer Plastic Blow Molding Machine (1-4 layer configurable) is produced by Weifang Xinhengda Machine Co., Ltd.

It adheres to the standards of GB13508-92 and SN04499.2-95, and holds official CE and ISO9001:2008 certifications. Taking HDPE/HMW-HDPE as

the primary raw material, this machine is engineered for the batch production of 500-2000L water storage tanks. It comes with the prominent features

of full automation, high operational efficiency, energy conservation and high raw material utilization rate. The entire unit is equipped with premium core

components including Siemens PLC and MOOG wall thickness control system, which effectively guarantees stable production operation and consistent product quality.

Tabular Parameters

1. Output Parameters

CAPACITY	WEIGHT (KG)	OUTPUT (PCS/HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Core Specification Parameters

Item	Details
Extruder	Screw diameter: 90/90/90/90MM; L/D ratio: 30:1; Material: 38CrMoAl; Melting capacity: ≈700KGS/Hour

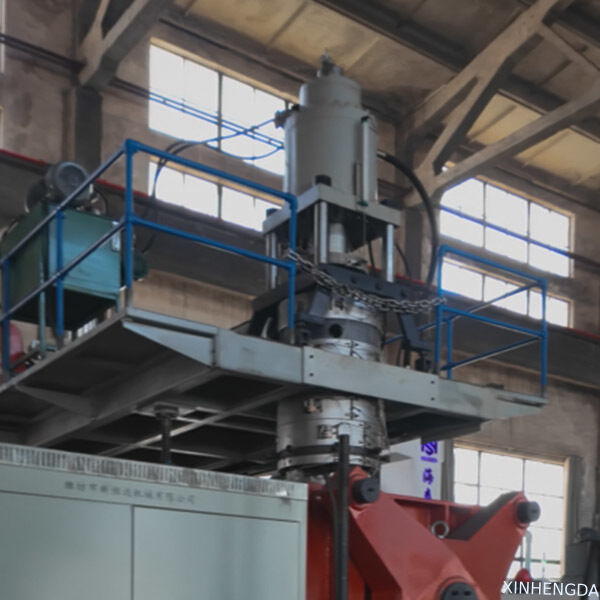

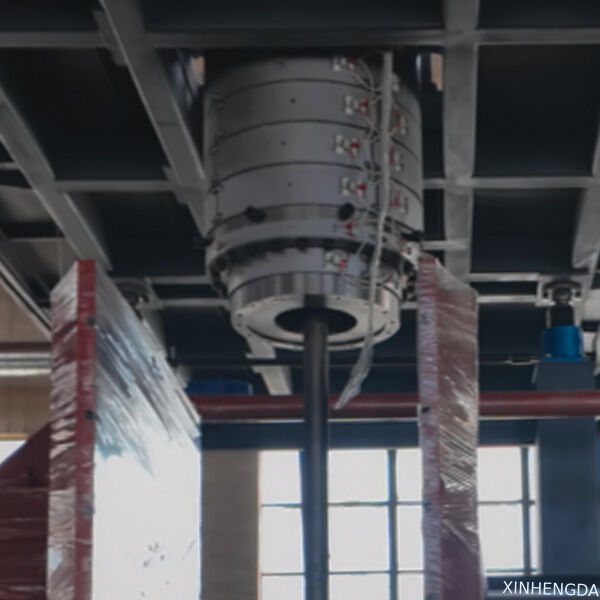

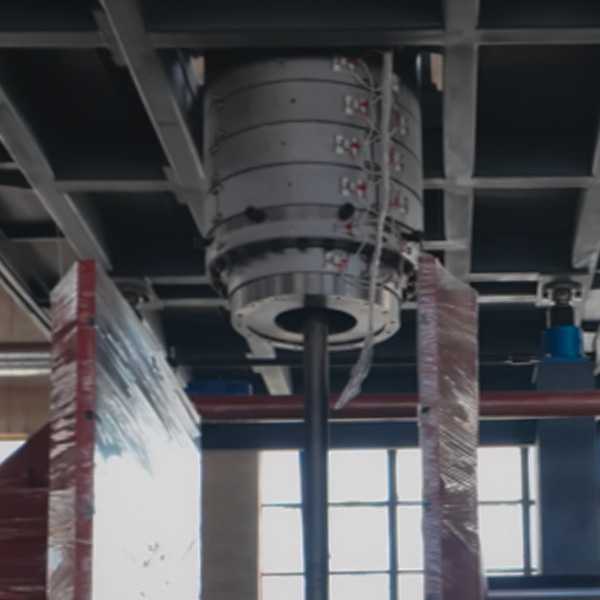

Machine Die Head	100L accumulator type; Electromagnetic heating + stainless steel heating ring; Power: 64KW
Clamping Unit	3-piece type with 2 pull bars; Recommended clamping force: 1250KN (Max 2000KN); Platen size: 1900×1800MM
Overall Machine Parameters	Dimension: 11×8×6.5M; Weight: 50-75TON; Total power (4 layers): 404.5KW; Average power consumption: 220KW
Working Conditions	Indoor ventilated environment; Temperature: 0-45℃; Humidity: ≤90%; Power supply: 3-phase 4-wire 380V-415V; Water pressure: ≥0.3Mpa

3. Key Component Brands

Component Category	Brand/Model
Electrical System	Siemens PLC, Touch Screen, Temperature Controller
Wall Thickness Control System	MOOG (Japan, 100 points)
Hydraulic Components	Yuken (Taiwan, China), Phase Servo Motor (Italy)
Inverter & Servo	Delta (Taiwan, China)
Screw Motor	HT HILECTRO Servo Motor

4. Price & Delivery Related

Category	Details
Payment Term	30% advance payment by T/T; Balance paid by T/T or L/C at sight after pre-shipment inspection
Delivery Time	4 months after receiving the deposit
Packaging	4×40’OH containers + 1×20’GP container
Warranty	1-year warranty for the whole machine and molds after installation

Product Core Functions

1.Fully automated production process: Products are automatically ejected via robotic arm; the main unit can be operated by 2 staff members, with the entire production line requiring only 3-4 personnel in total.

2.High-precision process control: MOOG 100-point wall thickness control system ensures uniform product wall thickness and enables wide-range adjustability of tank weight as required.

3.High-efficiency plasticizing performance: IKV-designed screw realizes thorough raw material mixing; the plasticizing capacity of the equipment reaches 700KGS/Hour.

4.Smart system regulation: Variable frequency control system combined with Delta servo hydraulic system delivers rapid response speed and fast pressure boosting efficiency.

Product Competitive Advantages

1.User-friendly operation: The machine can be operated by just 2 female workers, and the entire production line only requires a total of 3 to 4 personnel.

2.High production efficiency: Boasts a higher output than rotational molding machines, with a melting capacity of up to 650KGS/H.

3.Cost optimization: Reduces raw material consumption by 25% - 35% in comparison with rotomolded tanks; the servo system cuts energy use by more than 40%.

4.Premium product quality: Delivers superior impact resistance against rotomolded tanks, paired with consistent and even product wall thickness.

5.Stable and dependable performance: Equipped with renowned brand components (Siemens, MOOG, Yuken, etc.) for steady and long-lasting operation.

Product Distinctive Features

1.Energy and material efficiency: Cuts raw material usage by 25%-35% versus rotational molding machines; the servo system slashes energy consumption by more than 40%; an upgraded extruder delivers an extra 10% of energy savings on top.

2.Elevated production output: Boasts superior manufacturing efficiency compared to rotational molding machines (e.g., 7-9 units of 2000L products can be produced per hour).

3.Enhanced product quality: Finished products feature robust impact resistance with zero defects; stringent quality control measures ensure consistent product performance and specifications.

4.Effortless operation and maintenance: Comes with a multi-language operational interface; pneumatic valves are centrally positioned for streamlined inspection and maintenance work.

Application Scenarios

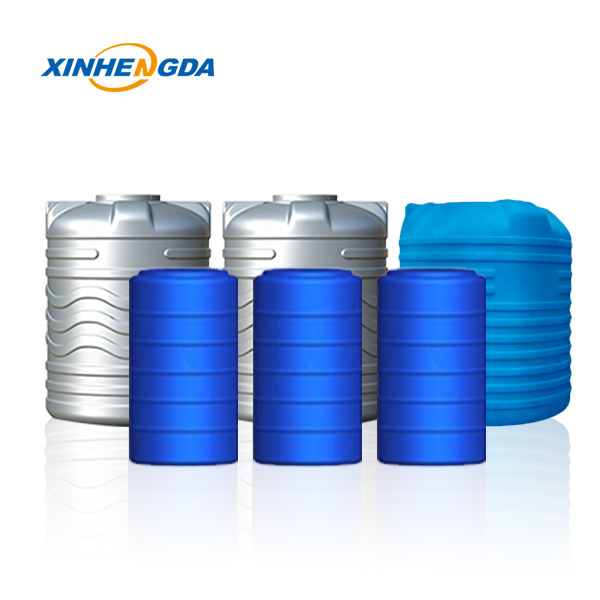

Primarily designed for the batch production of 500-2000L HDPE water tanks, it is suitable for scenarios such as industrial water storage, agricultural irrigation, civil liquid storage, and chemical raw material containment. The machine is capable of manufacturing both vertical and horizontal liquid storage vessels.

Large Scale Plastic Production 2000L Automatic Extrusion Blow Molding Machine Heavy Duty 0

Large Scale Plastic Production 2000L Automatic Extrusion Blow Molding Machine Heavy Duty 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	2000L Heavy-Duty Blow Molding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
