1-6 Layers Plastic Extrusion Fully Automatic Blow Moulding Machine 20-10000L For Septic Tank

Informasi Dasar

Tempat asal:	Taman Industri Shibu Kota Changyi Provinsi Shandong Cina
Nama merek:	XINHENGDA
Nomor model:	Mesin Cetakan Hembusan 3000L

Kuantitas min Order:	1
Harga:	Contact me
Waktu pengiriman:	Pesanan reguler dikirimkan dalam 90 hari; untuk produk yang disesuaikan, silakan hubungi saya untuk
Syarat-syarat pembayaran:	L/C, D/A, T/T, Western Union, D/p
Menyediakan kemampuan:	90+

Harga terbaik

Chat Now

Informasi Detail

Nama Produk:	Pukulan Plastik Skala Besar	Desain:	Bentuk dan ukuran khusus tersedia
Daya tahan:	Cina	Metode produksi:	Cetakan Tiup
Pilihan warna:	Dapat disesuaikan	Aplikasi:	Penyimpanan industri, wadah bahan kimia, tangki air
Menyoroti:	plastic fully automatic blow moulding machine , plastic automatic extrusion blow moulding machine , 10000l fully automatic blow moulding machine

Deskripsi Produk

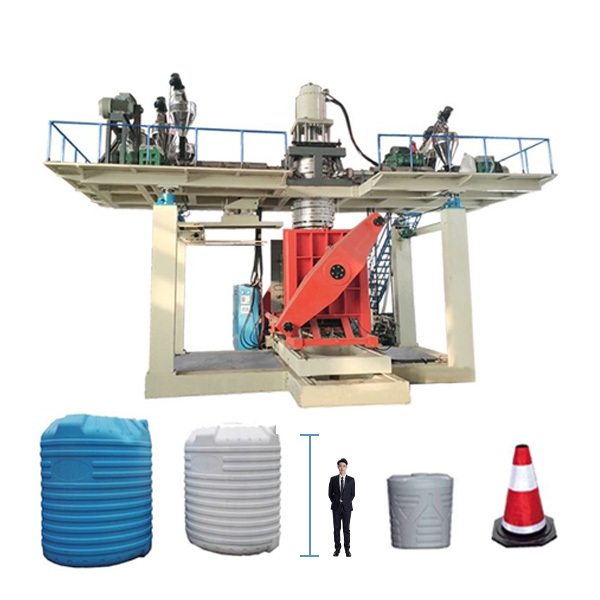

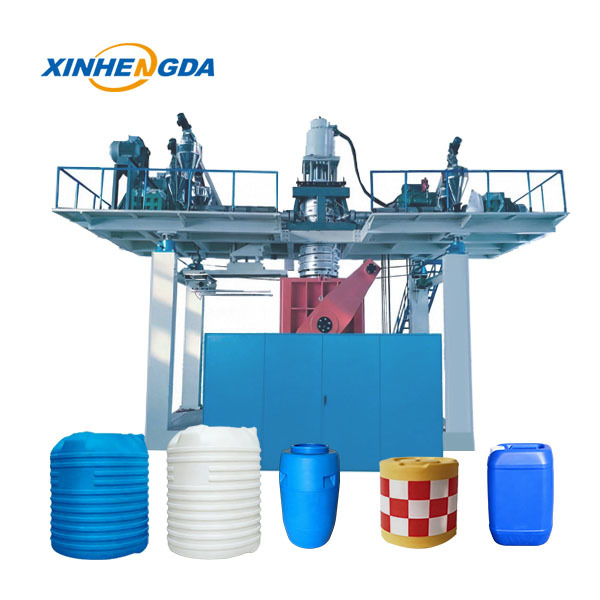

1-6 Layers Plastic Extrusion Blow Molding Machine (20-10000L Capacity) for Septic Tank

Category	Attribute Item	Corresponding Information
Key Attributes	Plastic Processed	HDPE, PE,PP,PE,HDPE/PP, HDPE PE
	Automation	Automatic
	Key Selling Points	Multi Color
	PLC Brand	Siemens
	Machinery Test Report	Provided
	Output (kg/h)	400 kg/h
	Power (kW)	500
	Dimension (LWH)	Customized
	Screw Heating Power (kW)	50 kW
	Mold Platen Size (Width) (mm)	1900 mm
	Air Pressure (MPa)	0.65 MPa
	Die Head Heating Power (kW)	100 kW
	Layers	1-6
	Capacity	20-10000L
	Clamping Force (KN)	1800
	Voltage	380v-415v
	Warranty	1 Years
	Core Components	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
	Video Outgoing-Inspection	Provided
	Place of Origin	Shandong, China
	Weight (t)	50
	Screw Diameter (mm)	120 mm
	Extruder Motor Power (kW)	90 kW
	Mold Platen Size (Height) (mm)	2100 mm
	Air Consumption (m³/h)	3 m³/min
	Automatic	Yes
	Material	HDPE PE
	PLC	SIEMENS
Packaging and Delivery	Packaging Details	Simple packaging
	Port of Dispatch	QINGDAO
	Selling Units	Single Item
	Packaging Examples	Example image (see the illustration)
Supply Capacity	Supply Ability	20 sets per Year

1-6 Layers Plastic Extrusion Fully Automatic Blow Moulding Machine 20-10000L For Septic Tank 0

1-6 Layers Plastic Extrusion Fully Automatic Blow Moulding Machine 20-10000L For Septic Tank 1

Label:

plastic fully automatic blow moulding machine
