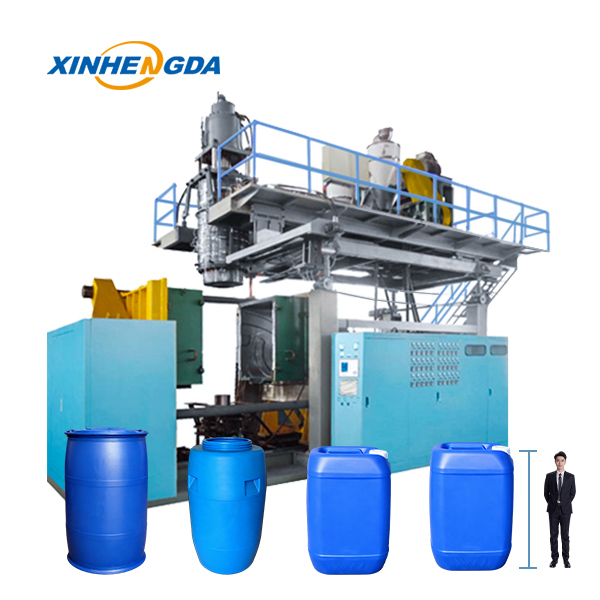

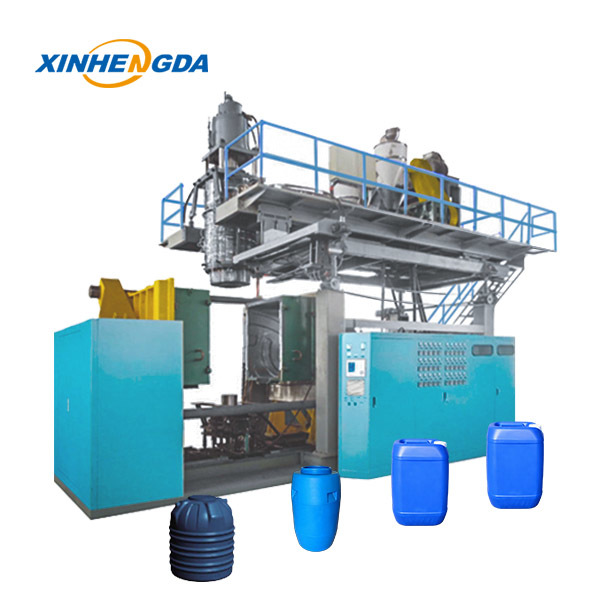

200L Intermittent Extrusion Blow Molding Machine, Energy-saving
1.This unit is compatible with PE, HDPE, PP, PVC and multiple plastic raw materials. It manufactures plastic containers and bottles in varied shapes, with a maximum volume of 25L.
2.Adopting dual-station single die head layout, the equipment ensures steady running and outstanding production throughput.
3.Key spare parts for this blow molding system are imported from globally recognized brand vendors.
4.The fully automatic workflow boosts productivity while cutting power consumption. It offers safe, fast operation plus hassle-free routine servicing.
Manufactured by Weifang Xinhengda Machinery Co., Ltd, this 200L blow molding unit is customized for PE processing and complies with GB13508-92 and SN04499.2-95 industrial specifications.
It features a dual-station single die head configuration and implements a complete automated production cycle.
Capable of handling PE, HDPE, PP, PVC and various other plastic resins, it produces differently shaped plastic bottles and storage containers up to 25L in volume.
With superior plasticizing capability, the machine ensures safe operation and convenient daily upkeep.
1.Auto Production Workflow: Integrates raw material feeding, extrusion, blow shaping and product picking. It supports top-blow and side-blow molding modes for flexible selection.
2.Accurate Parameter Tuning: Equipped with Moog 200-point axial parison wall thickness control, matched with PLC smart temperature control that adopts peak-shifting gradient heating technology.
3.Strong Compatibility: Fitted with adjustable robot with forward/backward movement, clamping, water cooling and height adjustment functions, suitable for products within 30L–125L capacity range.
4.Easy Maintenance: Comes with independent pneumatic assembly with centralized valve design. Manifold-type cooling pipelines keep the layout neat and avoid obstruction.
1.High Throughput & Reliable Operation: Features dual-station single die head setup. It achieves 180KG/H production capacity while only consuming 90KW average power for energy saving.
2.Dependable Construction: Vital components are supplied by world-renowned manufacturers. The main machine frame uses 45# and A3 steel, covered by a 12-month quality guarantee.
3.Energy Saving Design: Quick-response hydraulic system reduces power consumption by more than 40%. The smart heating assembly further decreases electricity usage.
4.User-friendly Control: Fitted with multi-language touchscreen. The clamping mechanism applies multi-row screw templates to simplify mold installation.
1.Structural Layout: Configured with a 3-layer extruder plus accumulator die head, three-section clamping mechanism, and cast steel frame integrated with lifting gear.
2.Processing Capability: Fully automated production sequence, servo-valve driven parison wall thickness adjustment, combined water-air cooling system.
3.Broad Material Adaptability: Compatible with PE, HDPE, PP, PVC and other feedstocks, able to produce plastic items in a wide range of forms.
4.Standard Compliance & Packing: Conforms to GB13508-92 and SN04499.2-95 specifications. Export-standard 40'OT container packing is adopted for transportation.
Application Scenarios

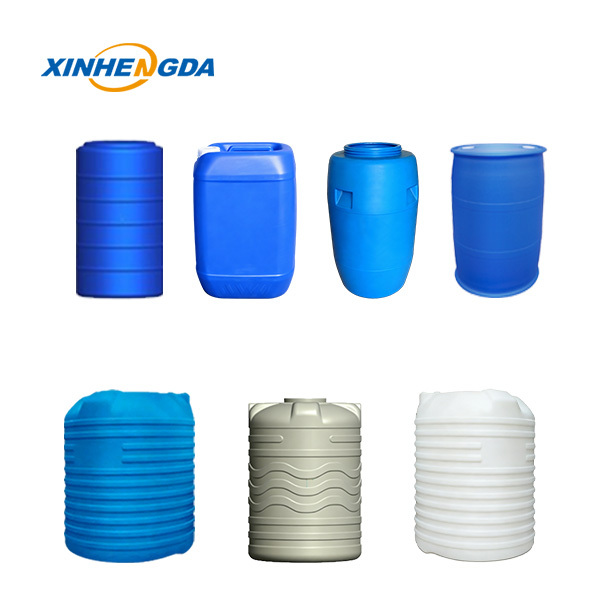

This unit manufactures assorted plastic bottles and storage containers out of PE, HDPE, PP and PVC, with a maximum product volume of 25L. It is extensively used to produce packaging containers for chemical, food, personal care and other industries. The machine needs to be placed inside an enclosed workshop, requiring a concrete base of minimum 16cm thickness and overhead crane clearance over 5m.
