Detail Information

Applications:	Storage Tanks, Containers, Industrial Use	Design:	Custom Shapes And Sizes Available
Uvprotection:	Included	Material:	High-density Polyethylene (HDPE)
Durability:	High Impact Resistance	Surfacefinish:	Smooth Or Textured
Productname:	Large-scale Plastic Blow	Coloroptions:	Customizable
Capacity:	Up To 2000 Liters	Productionmethod:	Blow Molding
Speed:	High Speed	Machine Name:	Extrusion Blow Molding Machine
Highlight:	multilayer extrusion blow molding machine , extrusion blow molding machine for water tank , 2000L extrusion blow molding machine

Product Description

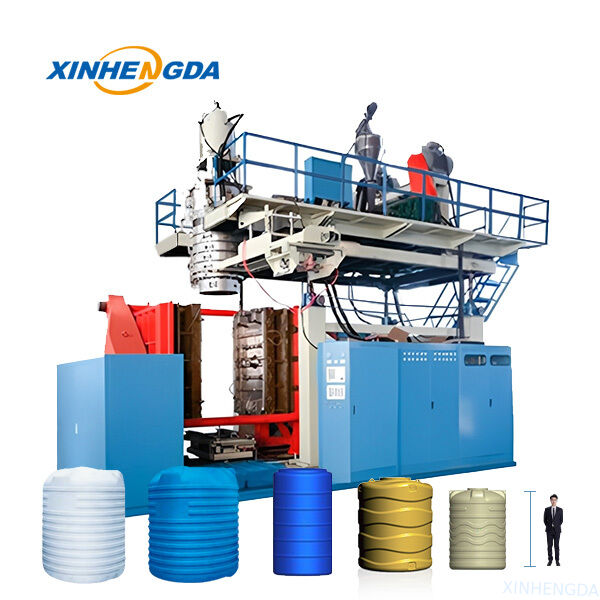

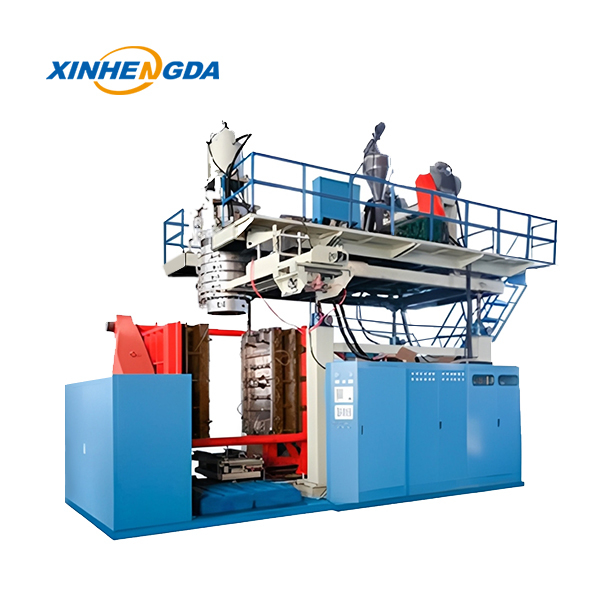

Multilayer Extrusion Blow Molding Machine, Stable Operation For 2000L Water Tank

Product Introduction

Weifang Xinhengda Machine Co., Ltd. presents its 2000L 8-layer fully automatic plastic blow molding machine, purpose-built to manufacture water tanks and liquid storage containers. Meeting GB13508-92 and SN04499.2-95 specifications, the equipment takes HDPE/HMW-HDPE as its main processing resin.

Fitted with high-grade core parts such as MOOG parison wall thickness controller, PLC control system and Delta servo hydraulic unit, the equipment enables fully automated operation covering raw material feeding to finished part pickup. Featuring outstanding productivity, low material waste and steady running performance, it perfectly fits mass fabrication of 200-2000L vertical and horizontal storage tanks.

Tabular Parameters

1. Output

CAPACITY	WEIGHT (KG)	OUTPUT (PCS/PER HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Working Condition

Working Condition	Details
Working Environment	Indoor, ventilated; away from magnetic field
Bridge crane height	≥8.5m
Plant foundation	Concrete ≥18cm
Humidity degree	≤90%
Indoor temperature	0-45℃
Power Source	3-phase 4 wires, 50Hz, 380V-415V
Cooling Water	Water temperature ≤20℃; Water pressure ≥0.3Mpa; Water consumption 50T/H
Air Source	Air source pressure 0.8Mpa; Forming air pressure 0.2-0.6mpa
Raw Material	HDPE/HMW-HDPE

3. Key Technical Specifications

Item	Details
Extruder	5 layers, 90/80/80/80/90MM; Screw L/D 30:1; Material 38CrMoAl
Machine Die Head	100L accumulator type; Heating power 80KW (5 layers)
Clamping Unit	3 pieces type with 2 pull bars; Clamping force 1250KN (Advice)/1900KN (Max)
Machine Dimension (L×W×H)	11×8×6.5M
Machine Weight	70TON
Total Power	441.5KW (5 layers)
Average Power Consumption	230KW
Melting Capacity	≈650 KGS/Hour
Product Range	500-2000L Water Tank

4. Configuration Brands

Category	Brand
LOW-VOLTAGE APPARATUS
PNEUMATIC COMPONENTS	SMTC & AIRTAC
HYDRAULIC COMPONENTS	YUKEN
SEAL	DICHTOMATIK GERMANY, TAIWAN DZ
SCREW MOTOR	HILECTRO SERVO MOTOR
FREQUENCY CONVERTERS	DELTA SERVO CONTROL
PLC & TOUCH SCREEN
WALL THICKNESS CONTROL SYSTEM	MOOG
SERVO OIL MOTOR	PHASE ITALY
SERVO OIL PUMP	SUMITOMO JAPAN

5. Machine & Mold Price (USD)

Name	Model	Price Note
Blow Molding Machine	2000L 5 Layers	Includes servo hydraulic system; Extruder motor can be upgraded to HAINTIAN servo for free
Steel Mold (Vertical Tank)	200L (2 cavity), 300L (2 cavity), 500L, 750L, 1000L, 1500L, 1800L, 2000L	To be quoted separately
Steel Mold (Horizontal Tank)	500L, 750L, 1000L, 1500L, 1800L, 2000L	To be quoted separately

Product Core Functions

1.Quality Control System: Strict quality management procedures are adopted. Every unit undergoes multi-dimensional full inspection to secure stable and flawless operating performance.

2.Complimentary Technical Training: Buyers can arrange their operators to receive free training at our factory, including machine operation, daily maintenance and basic troubleshooting. On-site training by our technicians is also available alongside equipment installation.

3.Field Installation & Commissioning: With prior arrangement from the customer, our professional engineers will provide one-week on-site installation and debugging. Customers need to bear engineers’ visa cost, round-trip flight tickets, lodging and meals.

4.12-Month Quality Guarantee: Within one year after machine commissioning, we supply free spare part replacement and professional technical support for quality failures under correct operation.

5.Premium Brand Components: The machine adopts globally famous branded parts including MOOG and YUKEN, supporting long service life and consistent dependable running.

Product Competitive Advantages

1.Material & Power Conservation: It cuts raw material consumption by 25%-35% versus rotational molded tanks. The servo hydraulic system delivers more than 40% power savings, and upgraded extruder brings an extra 10% energy reduction.

2.Superior Productivity: It outperforms rotomolding equipment in output, capable of producing 7 to 9 units of 2000L containers hourly.

3.Premium Product Performance: Finished containers feature great impact resistance with zero defects and hold multiple international qualification certificates.

4.Simple Operation & Servicing: Just two workers can run the main unit, while the whole production line only requires 3–4 operators. Modular core assemblies facilitate fast maintenance work.

Product Distinctive Features

1.Quality Safeguard: We carry out rigorous quality inspection standards. Every equipment passes multi-index testing. Machines and molds enjoy a 12-month warranty after installation completion.

2.Flexible Production Capacity: It supports manufacturing of 1 to 4 layered items, meeting production demands of vertical and horizontal storage tanks ranging from 500L to 2000L.

3.Premium Hardware Setup: Critical spare parts adopt globally well-known brands, including Italy Phase servo motors and Taiwan Yuken hydraulic valves to guarantee steady machine performance.

4.Customized Technical Support: We supply complimentary technical training, engineer-led on-site installation and debugging, plus field guidance on equipment operation and maintenance.

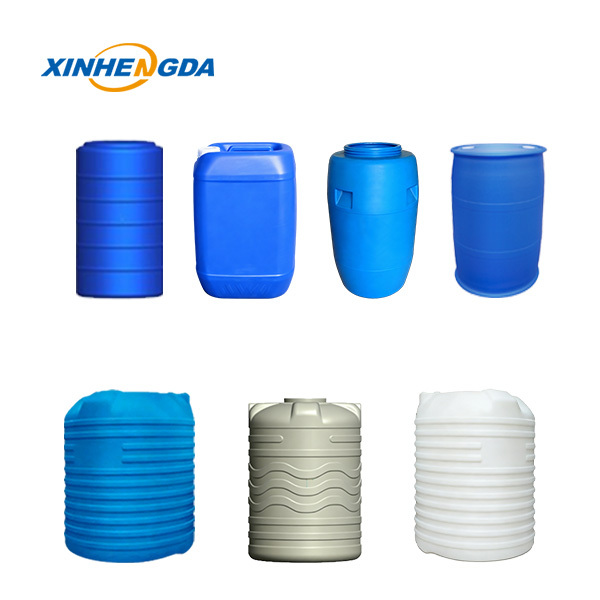

Application Scenarios

This equipment focuses on manufacturing HDPE storage tanks with capacities from 500L to 2000L, serving multiple sectors as listed below:
Industrial Sector: Storage for chemical agents, lubricants, process water and various liquid media.
Agricultural Sector: Reservoir for irrigation water, agrochemicals and liquid fertilizers.
Civil Sector: Household water preservation, rainwater collection and rural water supply systems.
Commercial Sector: Water storage for hotels, shopping malls and construction worksites; liquid containment for food processing factories.

Multilayer Extrusion Blow Molding Machine, Stable Operation For 2000L Water Tank
