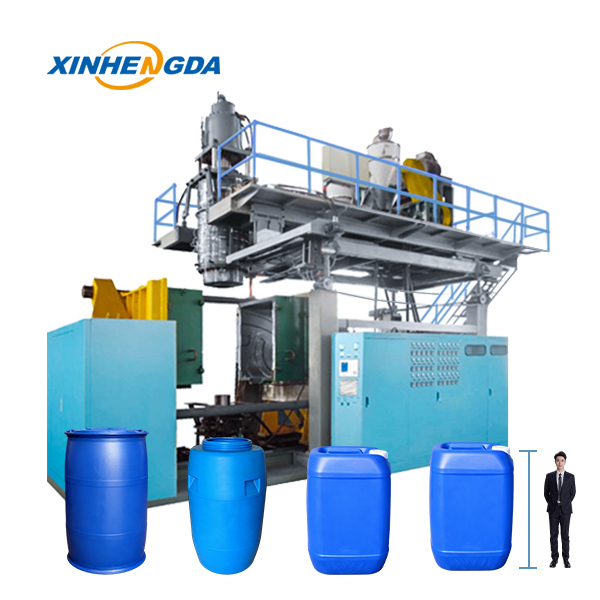

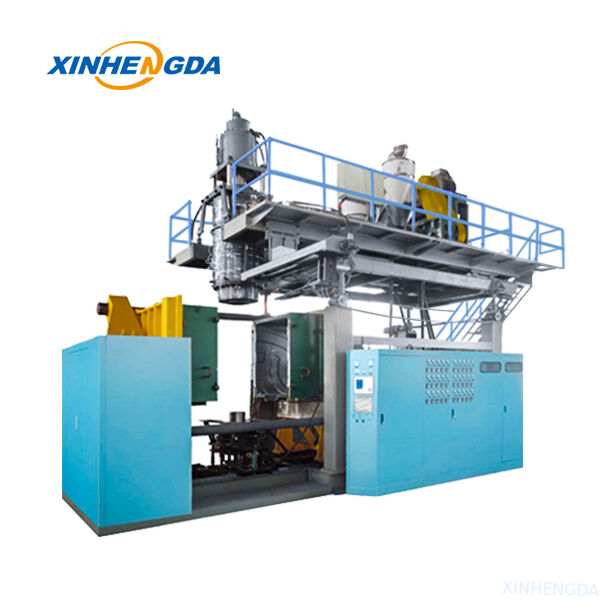

200L Intermittent Extrusion Blow Molding Machine Stable Operation High Output
1.This machine supports molding with PE, HDPE, PP, PVC and other plastic feedstocks. It can fabricate plastic bottles and storage vessels of diverse profiles, with a maximum capacity of 25L.
2.Designed with a dual-station single die head structure, it delivers consistent operation and remarkable production capacity.
3.Major core components of this blow molding equipment are sourced from world-famous international suppliers.
4.Full automatic workflow raises production efficiency and lowers energy consumption. It features secure, rapid operation together with simple daily maintenance.
Developed by Weifang Xinhengda Machinery Co., Ltd, this 200L blow molding machine is engineered for PE material forming and fully meets GB13508-92 and SN04499.2-95 industry standards.
Built around a dual-station single die head framework, it runs with a fully automatic production cycle.
Compatible with multiple raw resins such as PE, HDPE, PP and PVC, it fabricates plastic bottles and storage vessels of diverse shapes with a maximum capacity of 25L.
Boasting excellent plasticizing performance, the equipment delivers secure operation and straightforward routine maintenance.
1.Automated Production Cycle: Combines material feeding, extrusion, blow forming and part removal. It supports both top blow and side blow forming options.
2.Precise Parameter Regulation: Adopts Moog 200-point axial parison wall thickness control system, paired with PLC intelligent temperature regulation using peak-shifting progressive heating technology.
3.Wide Adaptability: Equipped with adjustable manipulator featuring forward-backward travel, clamping action, water cooling and height adjustment, compatible with products ranging from 30L to 125L.
4.Convenient Servicing: Built with standalone pneumatic unit with centralized valve layout. The cooling hoses adopt manifold arrangement for tidy layout and no blockage.
1.High Productivity & Stable Running: Adopts dual-station single die head configuration. It reaches an output of 180KG/H with average power consumption of merely 90KW for energy conservation.
2.Trustworthy Build Quality: Critical components sourced from globally famous brands. The main frame is constructed with 45# and A3 steel, backed by a 12-month warranty.
3.Low Energy Consumption: Responsive hydraulic system cuts energy use by over 40%. Intelligent heating module further lowers power demand.
4.Simple Operation: Equipped with multi-language touch panel. The clamping unit uses multi-row screw templates for convenient mold mounting.
1.Structural Design: Equipped with 3-layer extruder and accumulator die head, three-part clamping assembly, and cast-steel frame integrated with lifting mechanism.
2.Processing Performance: Full automatic production workflow, servo valve controlled parison wall thickness regulation, combined water and air cooling system.
3.Wide Compatibility: Supports various raw materials including PE, HDPE, PP, PVC, capable of manufacturing plastic products in diverse shapes.
4.Compliance & Packaging: Meets GB13508-92 and SN04499.2-95 standards. Adopts export-grade 40'OT container packaging for shipment.
Application Scenarios

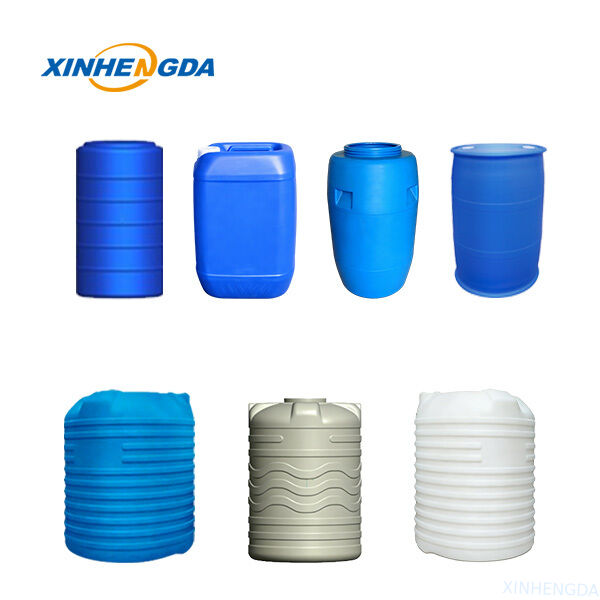

This machine fabricates diverse plastic bottles and containers from PE, HDPE, PP and PVC materials, with a maximum product capacity of 25L. It is widely adopted for packaging vessel production across chemical, food, daily chemical and other sectors. The equipment requires indoor workshop installation, with concrete foundation thickness no less than 16cm and overhead crane clearance above 5 meters.
