Detail Information

Molding Method:	Blow Molding	Material Compatibility:	Various Thermoplastic Materials
Type:	Plastic Blow Molding Machine	Durability:	High Impact Resistance
Productionmethod:	Blow Molding	Coloroptions:	Customizable
Weight:	Varies By Size, Typically 50-200 Kg	Applications:	Storage Tanks, Containers, Industrial Use
Blow Moulding Type:	Extrusion Blow Moulding,Stretch Blow Moulding,Injection Blow Moulding	Plastic Processed:	PE,PET,PP,HDPE,PVC
Highlight:	500L automatic extrusion blow molding machine , high precision plastic molding machine , 4 layer extrusion blow molder

Product Description

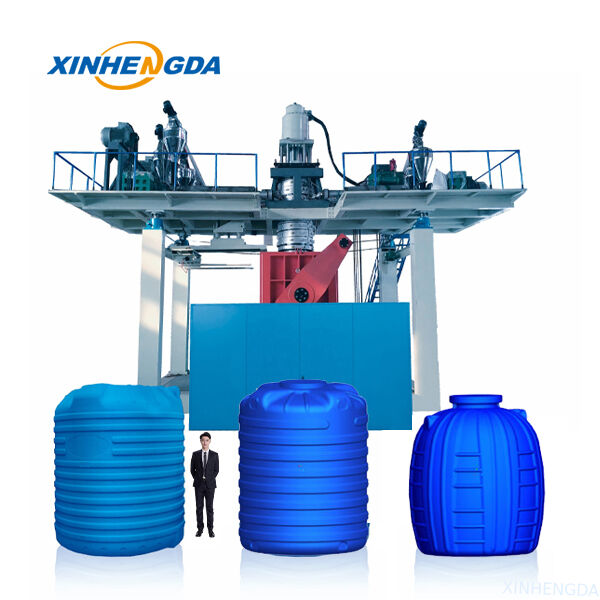

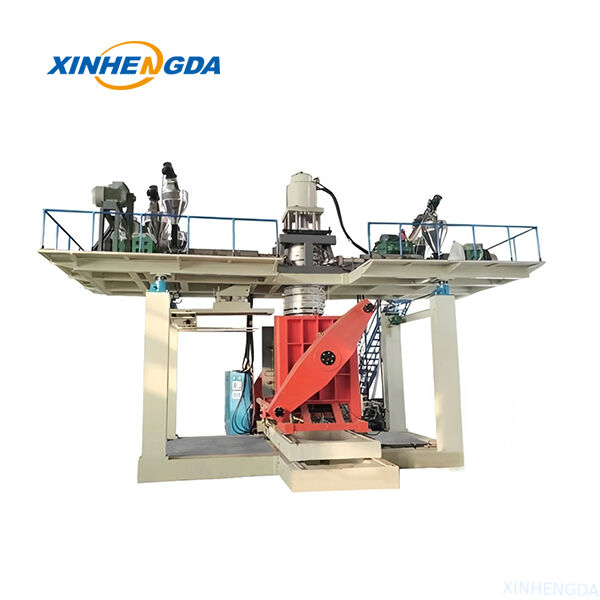

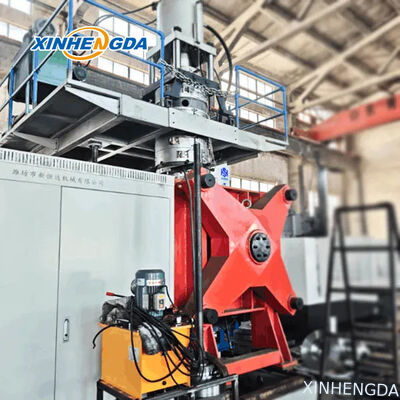

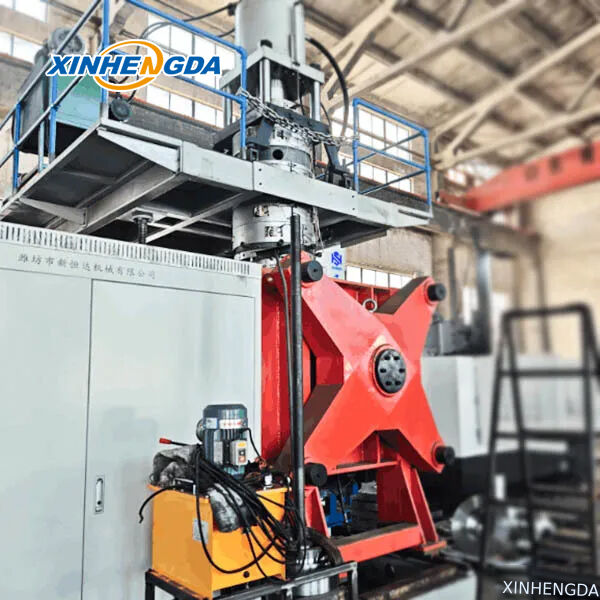

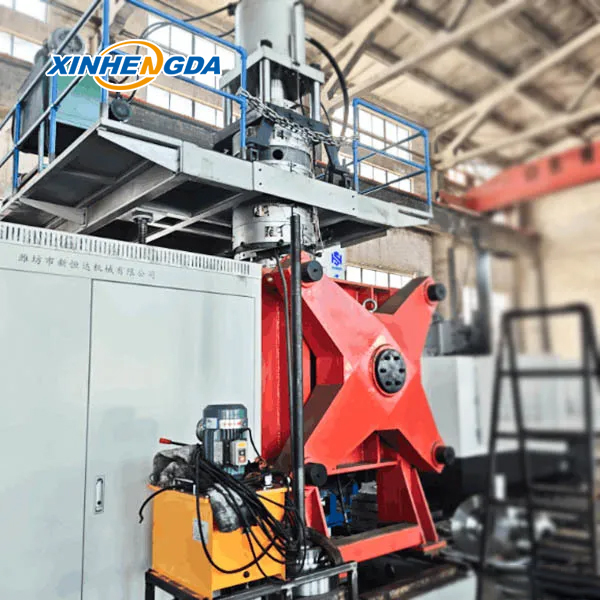

500L Automatic Extrusion Blow Molding Machine High Precision 4 Layer Plastic Molding

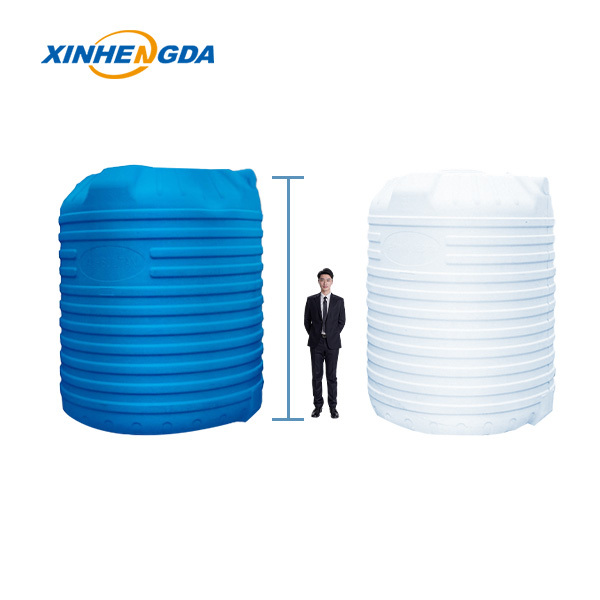

This device can mold various plastic resins including PE, HDPE, PP, PVC and other raw materials. It is capable of manufacturing plastic barrels, vessels and bottles with diversified outlines, and the maximum capacity of finished molded products can reach 25 liters.
Adopting dual-station single mold head layout, this equipment delivers smooth running performance and outstanding production throughput.
The vast majority of core spare parts equipped on this plastic blow molding equipment are supplied by globally well-known component brands.
The whole production flow runs in fully automatic mode, featuring low energy consumption and strong manufacturing capacity. It supports simple, secure operating steps and convenient routine maintenance work.

Product Introduction

This 500-liter triple-layer extrusion blow molding equipment is researched and manufactured autonomously by Weifang Xinhengda Machinery Co., Ltd. The molding unit is specially developed for forming HDPE high-density polyethylene materials and features a standardized heavy-duty frame structure. Equipped with innovative processing techniques and optimized matching parts, the equipment can steadily mass-produce large-volume plastic finished goods with excellent productivity.

Tabular Parameters

Key Attributes	Specifications
Plastic Processed	HDPE, PE, HDPE/PP
Clamping Force (kN)	1800
Automation	Automatic
Voltage	380v-415v
Key Selling Points	Multilayer
Warranty	1 Years
PLC Brand
Core Components	PLC, Gearbox, Motor, Gear, Pump
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Output (kg/h)	500 kg/h
Place of Origin	Shandong, China
Power (kw)	500
Weight (t)	70
Brand Name	SEHENDA
Dimension (LWH)	11M8M6.5M
Screw L/D Ratio	30
Screw Diameter (mm)	100 mm
Screw Heating Power (kw)	80 kW
Extruder Motor Power (kw)	75 kW
Mold Platen Size (Width) (mm)	1800 mm
Mold Platen Size (Height) (mm)	1900 mm
Air Pressure (mpa)	0.65 MPa
Air Consumption (m³/min)	2 m³/min
Die Head Heating Power (kw)	90 kW
Blow Moulding Type	Extrusion Blow Moulding
After-sales Service Provided	Online support
Material	HDPE
Certification	CE ISO
Packaging Details	Simple packaging
Port of Dispatch	QINGDAO
Selling Units	Single item
Supply Ability	20 sets per Year

500L Automatic Extrusion Blow Molding Machine High Precision 4 Layer Plastic Molding 0

500L Automatic Extrusion Blow Molding Machine High Precision 4 Layer Plastic Molding 1
