Detail Information

Power Consumption:	Low	Application:	Water Tank Manufacturing
Materialcompatibility:	HDPE, LDPE, PP	Material Compatibility:	Polyethylene (PE), Polypropylene (PP)
Machine Type:	Blow Molding Machine	Automatic:	Yes
Highlight:	full-automatic plastic blow molding machine , water tank blow molding equipment , professional plastic tank molding machine

Product Description

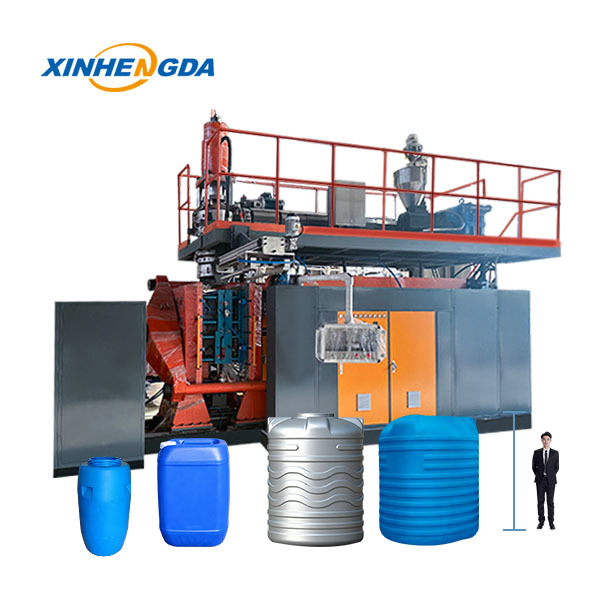

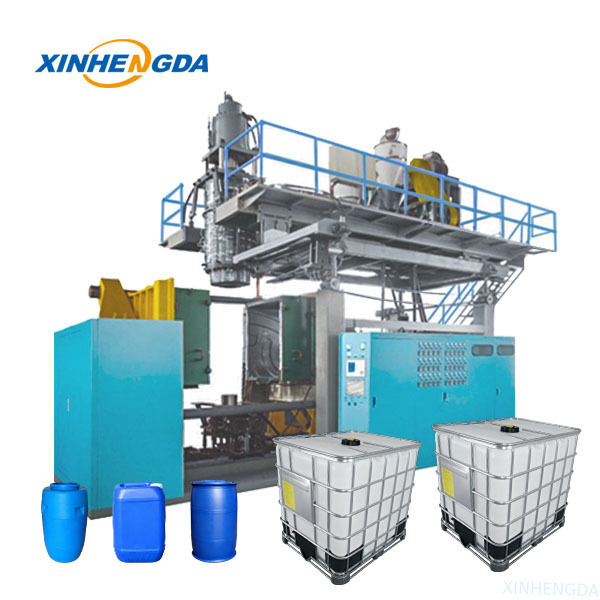

Professional Full-Automatic Plastic Blow Molding Machine for Water Tanks

Product Introduction

The XHD1000L Fully Automatic Plastic Blow Molding Machine is available in two distinct setups: the XHD1000FZ single-screw model and the XHD1000FZ twin-screw version. Designed exclusively for the production of floats, this advanced equipment uses HDPE and HMW-HDPE as its core raw materials, featuring a fully automated operational process, enhanced output capabilities, and optimized raw material usage efficiency. It has obtained both CE and SGS certifications, and comes with free on-site installation, debugging services as well as practical operational training. Additionally, it is backed by a 12-month all-round warranty that covers the complete machine and its matching molds.

Tabular Parameters

1. Operating Conditions

Working Conditions	Specific Requirements
Operating Environment	Indoor workshop with favorable ventilation; overhead crane height ≥9m; concrete foundation of the plant ≥10cm; keep away from magnetic fields; humidity ≤90%; ambient temperature 0-45℃
Power Supply	3-phase 4-wire 50Hz, 380V-415V
Cooling Water	Water temperature ≤20℃; water pressure ≥0.3Mpa; water consumption 50T/H
Air Source	Air source pressure 0.8Mpa; air pressure for product forming 0.2-0.4Mpa
Raw Material	High-density polyethylene HDPE/HMW-HDPE

2. Equipment Overview

No.	Item	Single Screw Configuration	Double Screw Configuration
1	Extruder	140MM, L/D ratio 30:1	120/120MM, L/D ratio 30:1
2	Machine Die Head	35L 26KGS, high-efficiency ceramic heating ring	35L 26KGS, high-efficiency ceramic heating ring
3	Clamping Unit	3-piece type clamping unit with 2 pull bars, clamping force 1000KN	3-piece type clamping unit with 2 pull bars, clamping force 1000KN
4	Machine Frame	Elevating machine frame	Elevating machine frame

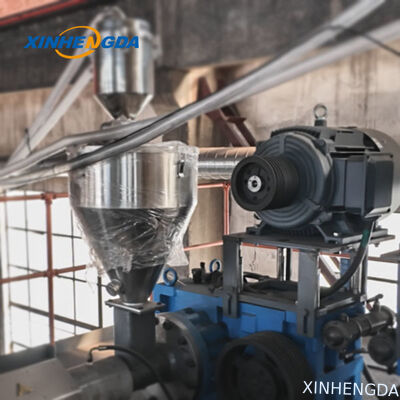

5	Material Loader	Spring-type feeding machine (2.2KW)	Spring-type feeding machine (2.2KW)
6	Blow Seat	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)
7	Robot	Adjustable 4-function robot (forward/backward movement, cooling, etc.)	Adjustable four‑function manipulator (including forward/backward travel, cooling function, and other operations
8	Hydraulic System	Taiwan Delta servo-controlled main hydraulic station + wall thickness control small hydraulic station	Taiwan Delta servo-driven main hydraulic station + independent hydraulic station for wall thickness control
9	Electrical System	Siemens PLC/Italy Gefran control system (optional)	Siemens PLC/Italy Gefran control system (optional)
10	Machine Power	Total power 252.375KW, average power 134KW	Total power 346KW, average power 176KW
11	Machine Dimension (L×W×H)	8×4×6.3M	8×4×6.3M
12	Machine Weight	25TON	30TON
13	Melting Capacity	280KGS	280KGS
14	Product Layers	1 layer	1 layer

3. Core Components Material & Configuration

Components	Material/Configuration
Screw/Barrel	38CrMoAl
Die Pin/Core Pin	45# steel
Accumulator	38CrMoAl & 45# steel (35L/26KGS)
Hydraulic Components	Taiwan Yuken pumps and valves
Pneumatic Components	STNC & AirTac pneumatic valves
Low-Voltage Apparatus	Siemens (contactors, circuit breakers, etc.)
Wall Thickness Control System	Japan MOOG 200-point axial wall thickness controller
Servo System	Delta servo motor, Italy PHASE servo control, Japan Sumitomo servo oil pump

Product Core Functions

1. Material Processing: The IKV-structured screw delivers efficient plasticization and even blending, with amelting capacity of 280KGS.
2. Molding Control: Moog 200-point wall thickness controller guarantees consistent product thickness andsupports wide-range weight adjustment.
3. Automatic Operation: The robot automatically retrieves finished products; the 5-function blow modulecompletes air blowing, venting, sealing and other procedures, realizing full automation.
4. Temperature Control: Adopting peak-shifting gradual heating, with independent temperature control for thedie head and screw, lowering power consumption.
5. Easy Maintenance: Independent pneumatic station and manifold design simplify inspection and operation,with neat and unobstructed piping layout.

Product Competitive Advantages

1. Cost Efficiency: Reduces raw material consumption by 25%-35% compared with rotational molding tanks; the frequency conversion control system contributes to the reduction of overall power consumption.

2. Enhanced Productivity: Features higher production volume than rotational molding machines; the entire production line requires only 3–4 workers to operate, and a single unit can be managed by two female employees.

3. Optimal Product Quality: The finished products offer much better impact resistance than rotational molding tanks, together with excellent uniformity in wall thickness.

4. Stable Component Setup: Adopts high-quality parts from well-known brands such as Siemens, Delta and MOOG, ensuring remarkable stability during operation.

5. Comprehensive After-sales Support: Offers free on-site installation and professional training, a 1-year warranty, as well as free replacement parts for fault diagnosis and maintenance.

Product Distinctive Features

1.Structural Design: Elevating machine frame, multi-row screw hole backplate, easy mold change (hydraulic drive, moving distance 1600MM), suitable for various float production.

2.Precise Control: Taiwan Delta servo hydraulic system with fast response and pressure rise, saving over 40% energy; PLC automatic temperature control, multilingual operation interface (including customer's native language).

3.Durable Material: Core components adopt high-quality materials such as 38CrMoAl and 45# steel; cast steel elevator, Schneider solid-state relay (AC contactor for high-temperature areas).

4.Safety & Stability: Equipped with machine protective cover and guardrail; dual protection of cooling system (barrel air cooling + feeding area water cooling), adapting to indoor environment of 0-45℃.

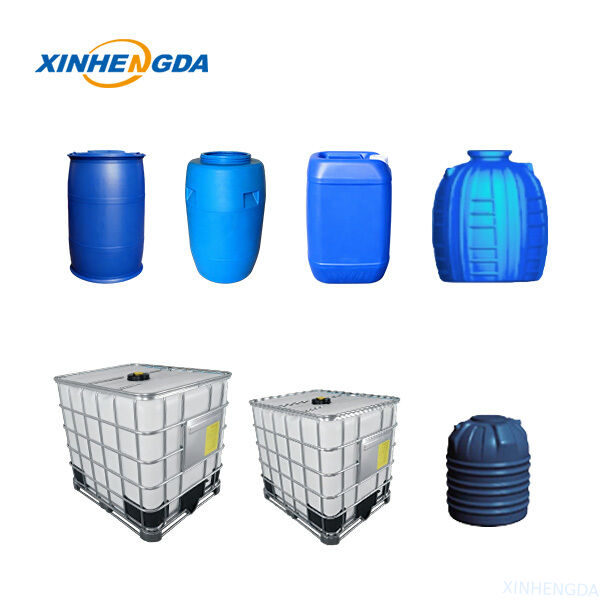

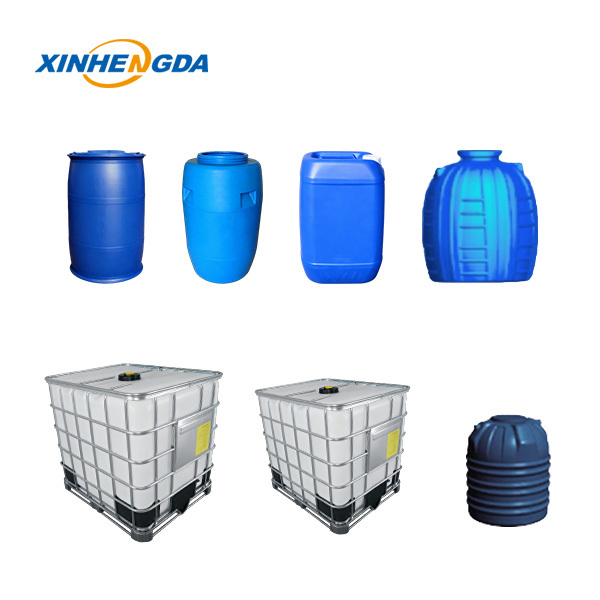

Application Scenarios

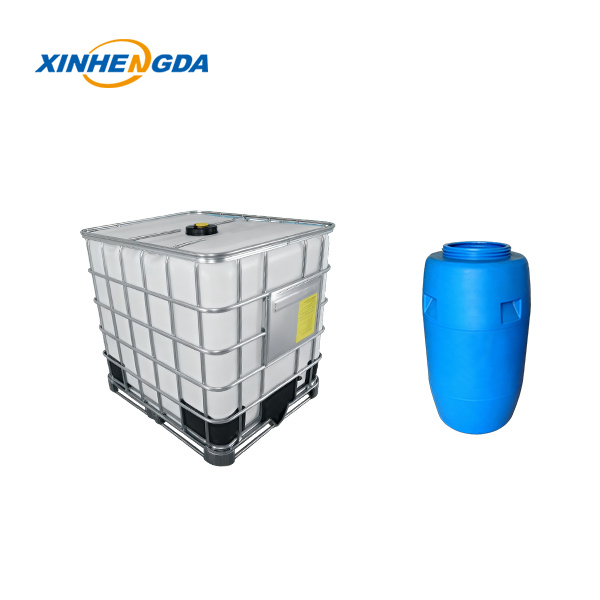

Professional Full-Automatic Plastic Blow Molding Machine for Water Tanks 1

Professional Full-Automatic Plastic Blow Molding Machine for Water Tanks 2
