Name: Automatic 4Layer Multi Layer Blow Molding Machine 500L Factory Direct Sale
Brand: Weifang Xinhengda Machine Co. Ltd
SKU: 4Layer Extrusion Plastic Blow Molding Machine
Availability: InStock

Detail Information

Shipping:	By Sea Or By Air Or By Train	Product:	Pesticide Bottle
Application:	Bottle	Material:	PP PE
Type:	Toggle Clamping System	Condition:	New
Automatic:	Yes	Plastic Processed:	PE,PET,PP,HDPE,PVC Etc.
Product Name:	PP PE Plastic Bottle Tank Extrusion Blow Molding Moulding Machine
Highlight:	4layer multi layer blow molding machine , multi layer blow molding machine 500l , automatic multi layer blow moulding machine

Product Description

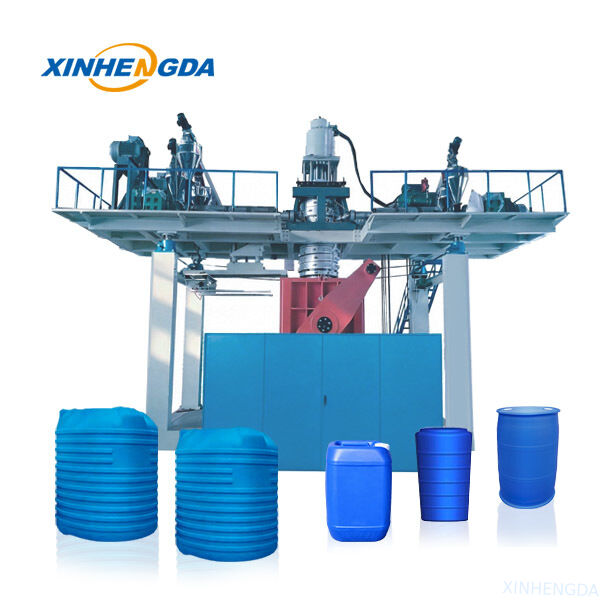

4Layer Extrusion Plastic Blow Molding Machine 500L Factory Direct Sale

1.This blow molding machine is applicable for processing PE, HDPE, PP, PVC and other common raw materials; it can produce all types of shaped plastic containers and bottles, with the maximum product volume hitting 25L.

2.It comes with a double-station single die head structure, which brings stable running state and high production efficiency for mass production.

3.The main components of this machine are procured from well-known global brands, guaranteeing excellent overall performance.

4.With a fully automated working flow, it has the advantages of low power consumption and high operational efficiency, plus safe and trouble-free operation and easy-to-implement maintenance processes.

Product Introduction

This 500L four-Layer Blow Molding Machine is independently produced by Weifang Xinhengda Machine Co., Ltd. Focused on processing HDPE (High-Density Polyethylene) raw materials as its core application, the unit features a standard weight structure. It combines leading production technology and optimized equipment configuration to achieve efficient, stable fabrication of large-size plastic products.

Tabular Parameters

Key Attributes	Specifications
Plastic Processed	HDPE, PE, HDPE/PP
Clamping Force (kN)	1800
Automation	Automatic
Voltage	380v-415v
Key Selling Points	Multilayer
Warranty	1 Years
PLC Brand	Siemens
Core Components	PLC, Gearbox, Motor, Gear, Pump
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Output (kg/h)	500 kg/h
Place of Origin	Shandong, China
Power (kw)	500
Weight (t)	70
Brand Name	SEHENDA
Dimension (LWH)	11M8M6.5M
Screw L/D Ratio	30
Screw Diameter (mm)	100 mm
Screw Heating Power (kw)	80 kW
Extruder Motor Power (kw)	75 kW
Mold Platen Size (Width) (mm)	1800 mm
Mold Platen Size (Height) (mm)	1900 mm
Air Pressure (mpa)	0.65 MPa
Air Consumption (m³/min)	2 m³/min
Die Head Heating Power (kw)	90 kW
Blow Moulding Type	Extrusion Blow Moulding
After-sales Service Provided	Online support
Material	HDPE
Certification	CE ISO
Packaging Details	Simple packaging
Port of Dispatch	QINGDAO
Selling Units	Single item
Supply Ability	20 sets per Year

Automatic 4Layer Multi Layer Blow Molding Machine 500L Factory Direct Sale 0

Automatic 4Layer Multi Layer Blow Molding Machine 500L Factory Direct Sale 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	4Layer Extrusion Plastic Blow Molding Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	90days+
