Detail Information

Surfacefinish:	Smooth Or Textured	Productname:	Large-scale Plastic Blow
Dimensions:	Custom Sizes Available	Productionmethod:	Blow Molding
Applications:	Storage Tanks, Containers, Industrial Use	Coloroptions:	Customizable
Highlight:	multi layer blow moulding machine full automatic , 1000l multi layer blow molding machine , 1000l multi layer blow moulding machine

Product Description

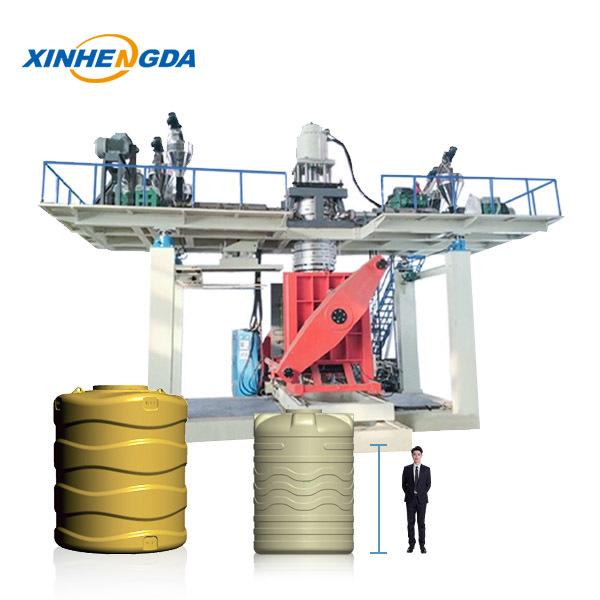

1000L 5-Layer Full-Automatic Industrial-Grade Blow Molding Machine

Product Introduction

This is a Plastic Water Tank Blow Molding Machine produced in Shandong, China. It adopts the extrusion blow moulding process, uses HDPE as the raw material, and operates fully automatically to produce plastic water tanks with a multi-layer structure.

Tabular Parameters

plastic processed	HDPE, PE, HDPE	Clamping Force (kN)	1000
automation	Automatic	voltage	380-415V
key selling points	Multilayer	warranty	1 Year
plc brand	Siemens	core components	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
machinery test report	Provided	video outgoing-inspection	Provided
output (kg/h)	350 kg/h	place of origin	Shandong, China
power (kw)	400	weight (t)	40
dimension(lwh)	786.3	Screw L/D Ratio	30
screw diameter (mm)	100 mm	screw heating power(kw)	60 kW
extruder motor power(kw)	75 kW	mold platen size(width)(mm)	1500 mm
mold platen size(height)(mm)	1700 mm	air pressure(mpa)	0.65 MPa
air comsumption(m³/min)	2 m³/min	die head heating power(kw)	65 kW
Blow Moulding Type	Extrusion Blow Moulding	Automatic	yes
After-sales Service Provided	Engineers available to service machinery overseas	Application	water tank
Raw material	HDPE	Name	Plastic water tank blow molding Machine
Weight	44TON	Clamping Force	1000KN
Power	355KW	-	-

Product Functions

1.Full-automatic operation: Equipped with adjustable robot for automatic product pick-up.
2. Precision control: Moog 100-point parison thickness controller ensures uniform wall thickness.
3. Intelligent heating: Peak-shifting progressive heating reduces energy consumption.
4. Versatile production: Supports 1-4 layer products; adaptable to 200-1000L tank production.

Product Advantages

1.Equipped with Siemens PLC for high control precision

2.Reliable configuration of core components ensures equipment stability

3.Provides test reports and outgoing inspection videos for traceable quality

4.Offers after-sales support from overseas engineers to solve subsequent operation and maintenance issues

5.Has an output of 350 kg/h to meet batch production needs

Product Features

1.High degree of automation for easy operation

2.Capable of producing multi-layer structure products (key selling point)

3.Branded core components (Siemens PLC)

4.Comprehensive inspection and warranty support

Production process

Application Scenarios

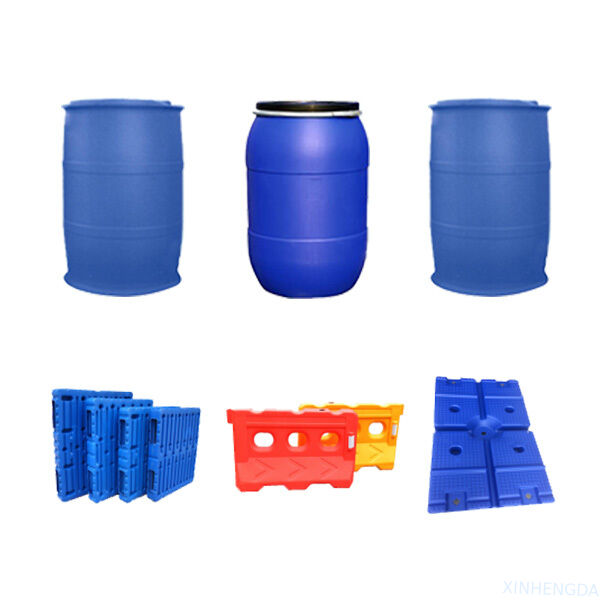

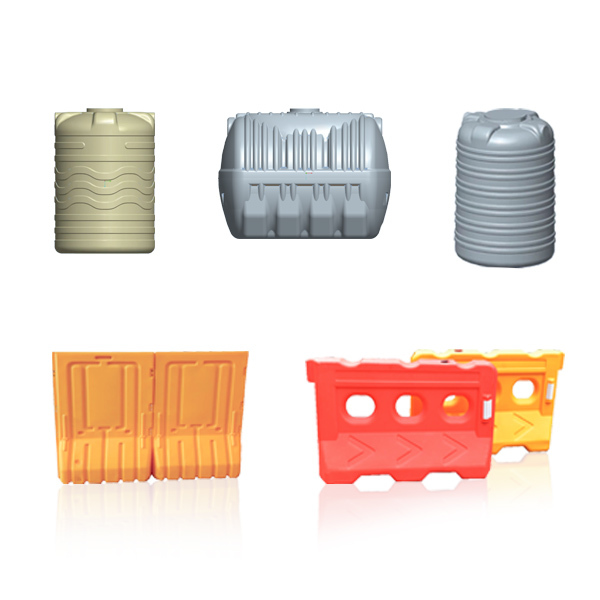

Specialized in mass production of 200-1000L HDPE water tanks (vertical/horizontal). Suitable for industries including: Civil use: Domestic water storage, rainwater harvesting. Agriculture: Irrigation water storage, pesticide/fertilizer storage. Industry: Chemical liquid storage, industrial water reserve. Commercial use: Water supply for hotels, markets, and public facilities.

1000L 5 Layer Extrusion Multi Layer Blow Moulding Machine Full Automatic Industrial Grade 1

1000L 5 Layer Extrusion Multi Layer Blow Moulding Machine Full Automatic Industrial Grade 2

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	1000L 3 Layer

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
