Detail Information

Productionmethod:	Blow Molding	Oem:	Yes
Year:	NEW	Template Distance:	150~560mm
Raw Material:	HDPE	Driven Type:	Electric And Hydrulic
Bottle Materials:	PP/PE/PC	Automatic:	Yes
Blow Moulding Type:	Extrusion Blow Moulding,Stretch Blow Moulding,Injection Blow Moulding	Key Selling Points:	Energy Saving
Highlight:	10000L extrusion blow molding machine , 3-6 layer co-extrusion forming machinery , extrusion blow molding machine with warranty

Product Description

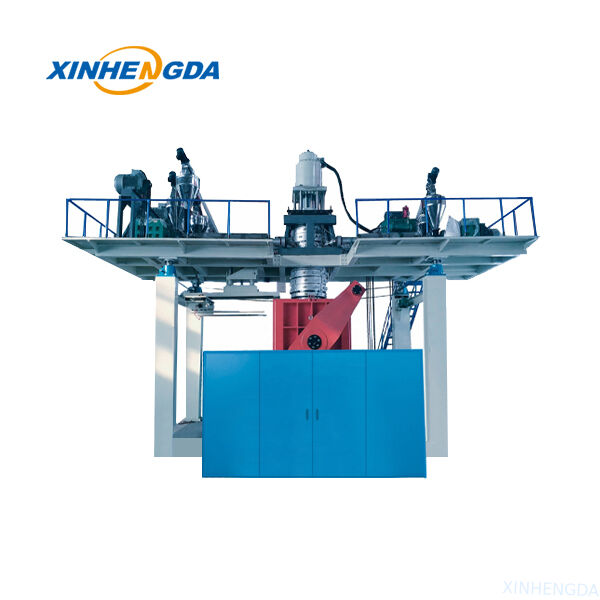

10000L Extrusion Blow Moulding Machine Manufacturers 3-6 Layer Co-extrusion Forming Machinery

Product Introduction

Custom industrial blow molding equipment for heavy-duty use, this 10000L plastic tank molding machine delivers remarkable production efficiency for customized manufacturing demands.Designed and produced in-house by a Shandong manufacturer with 30 years of technical accumulation in super-large blow molding equipment development, this machine is tailored for mass production of high-volume water storage tanks and oversized hollow plastic vessels.

Tabular Parameters

Parameter	Details
Workable Plastic Base Materials	HDPE, PE
Mould Holding Power	2000 KN
Automatic Running Mode	Automatic
Voltage	380-415V
Key Selling Point	Multi-layer Composite Build Structure
Warranty	1 Year
No. of Screw	7
Core Components	PLC Control Module, Variable Frequency Drive, Bearing Protective Cover, Drive Motor, Transmission Gear,Liquid Transfer Pump
Visual Imaging Quality Assessment	Provided
Machinery Test Report	Provided
Production Origin	Shandong, China
Power	520 kW
Complete Equipment Mass	50 Ton
Overall Equipment Dimension Data	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Station Length	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Die Head Heating Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	According to customer requirements (container, etc.)
Port of Dispatch	QINGDAO
Annual Supply Capacity	35 Units

Product Core Functions

The newly upgraded 10000L heavy blow molding equipment is oriented to standardized mass fabrication of super-large plastic water storage tanks and industrial hollow containers. Operators can realize fine adjustment of product wall thickness and overall weight in the range of 1mm to 10mm.

Boasting precise molding effect, even wall distribution and strong structural resistance to deformation, the equipment can fully fulfill customized bulk orders of large plastic containers for civil water storage and industrial fluid storage scenarios.

Product Competitive Advantages

Minimize Labor Input

Featuring highly integrated automatic control design, this production line minimizes manual intervention in the whole manufacturing process. Only two professional workers are sufficient to operate the full equipment set, greatly lowering enterprises’ long-term labor costs and daily operational management expenditures.

Full-Scale Free Technical Guidance

We provide 14-day free on-site professional technical coaching, covering equipment daily operation, parameter calibration, routine upkeep and common fault elimination. This systematic training enables on-site staff to master operational skills rapidly and achieve fast formal commissioning of the production line.

Wide Raw Material Adaptability

Optimized extrusion system and molding structure endow the equipment with excellent material compatibility. It supports stable processing of HDPE, PE and other mainstream plastic raw materials, adapting to varied material specifications and personalized production demands in different industrial fields.

Strict Whole-Process Quality Supervision

The entire equipment production and assembly process adopts full video tracking and real-time supervision. Before delivery, complete performance test documents and official quality certification files will be provided to ensure every machine fully conforms to international export quality standards and specifications.

High-Quality Branded Core Configuration

Key functional components such as intelligent PLC control system, frequency converter, drive motor and hydraulic pump adopt internationally renowned brand products. Premium accessories ensure stable operational state, low failure rate and longer equipment service cycle, effectively reducing customers’ later maintenance and replacement costs.

Rich Industrial R&D and Manufacturing Experience

Focusing on the research, development and production of large-scale blow molding equipment for 30 years, our team keeps optimizing equipment structure and upgrading core technologies iteratively. Stable equipment performance and reliable product quality help us deliver high-quality molding solutions for global plastic processing enterprises.

Product Distinctive Features

Intelligent Fully Automated Operation System

Equipped with integrated PLC intelligent control modules, the unit supports one-touch startup to complete the whole production workflow autonomously, including plastic extrusion, mold clamping, blow forming, cooling shaping and product ejection. The equipment maintains consistent operation stability and realizes remarkable production output improvement.

Synchronized Multi-Layer Blow Molding Technology

Adopting simultaneous multi-layer blow molding craftsmanship, the machine effectively boosts the pressure resistance, chemical corrosion resistance and sealing performance of large-sized water tank products. The upgraded physical properties strengthen the market competitiveness of finished hollow containers significantly.

Freely Adjustable Forming Parameters

Operators are allowed to flexibly adjust indicators including blank weight, wall thickness dimension and forming technical state. The flexible parameter setting realizes tailor-made production of large containers of diverse sizes to match differentiated customized demands from various clients.

Premium Core Components for Stable Continuous Operation

Fitted with high-power and high-precision core functional parts, the machine sustains steady working performance under long-hour continuous production. Low vibration and low running noise make it perfectly suited for round-the-clock intensive industrial mass production tasks.

Application Coverage

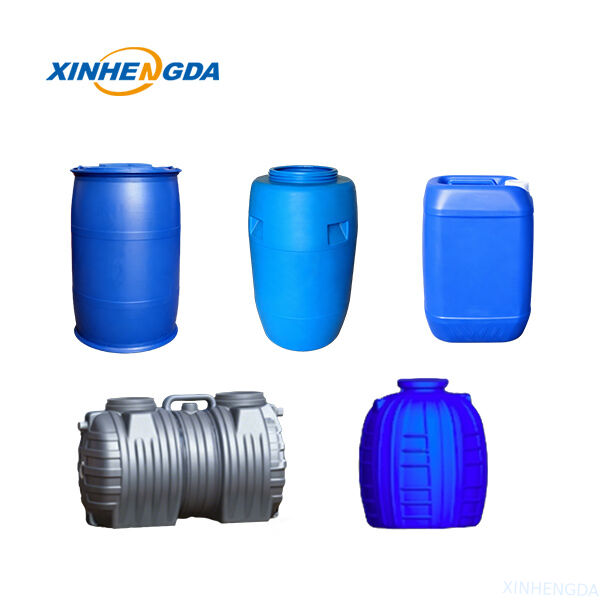

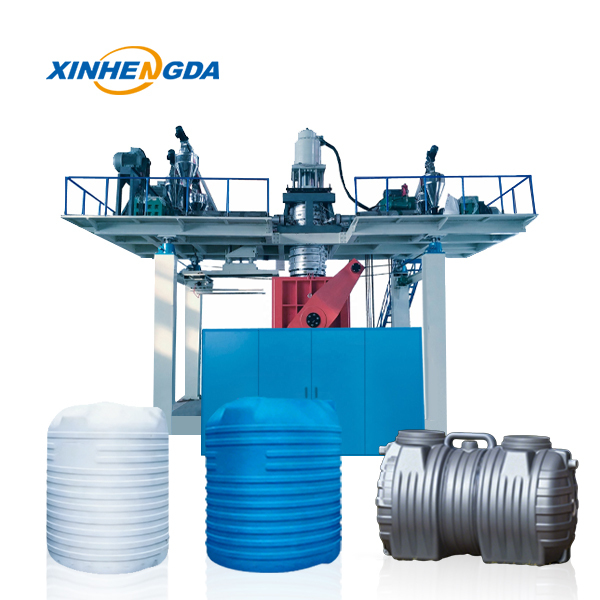

This oversized blow molding machine tailored for 10000L finished goods focuses on the fabrication of heavy-duty plastic water tanks and industrial hollow vessels ranging from 500L to 10000L capacity. Apart from various water storage tank products, the machine achieves efficient mass fabrication of plastic logistics pallets, municipal garbage bins, highway isolation guardrails, plastic septic tanks and other oversized hollow plastic components, boasting extremely wide application versatility across multiple industries.

The blow molding machine has passed authoritative international quality certification audits. Our core overseas sales territories cover Southeast Asia, South America, Europe and numerous overseas markets. Benefiting from excellent production efficiency, consistent long-term operation stability and optimized power consumption design, the equipment earns favorable word-of-mouth among plastic processing manufacturers. It has become the preferred molding device for enterprises focusing on mass manufacturing of extra-large hollow plastic finished products.
