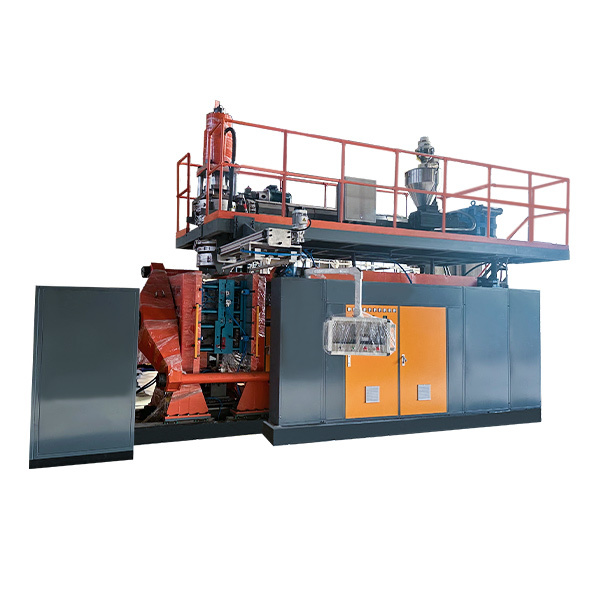

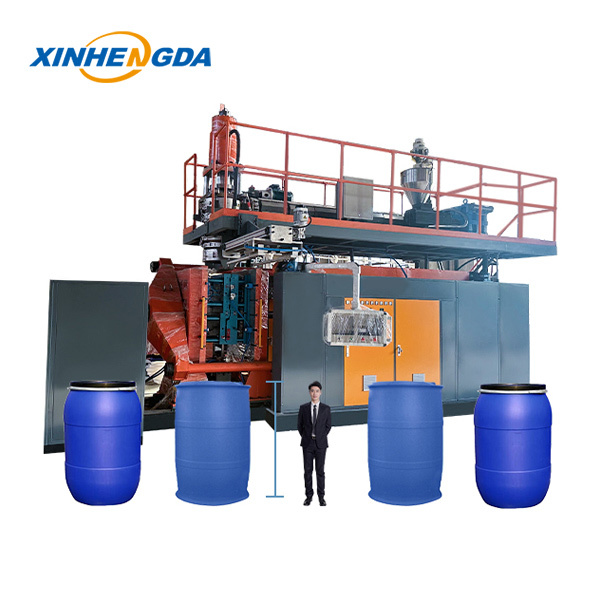

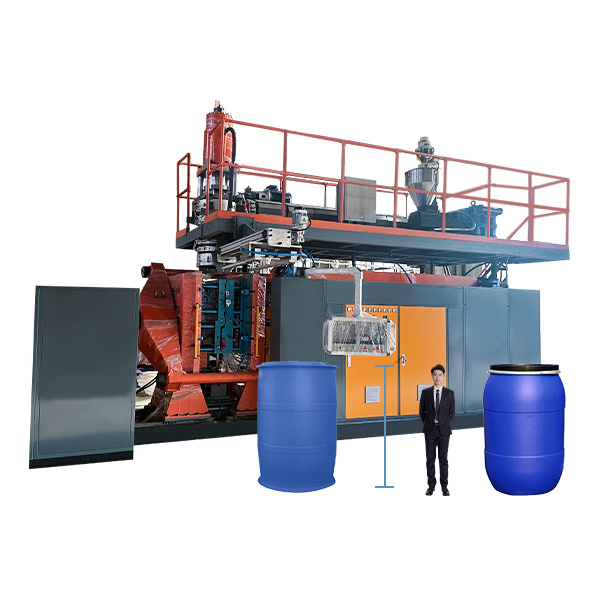

New Type Extrusion Blow Molding Machine For 50L Water Drum Plastic Bucket Mechanical

New Type Extrusion blow molding machine for 50L water drum plastic bucket mechanical

• It is suitable for producing PE,HDPE,PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 25L.
• Double station single die head design, Stable and efficient.
• Most components of the blow-molding machine are from famous world brand.
• Full automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.

Product Introduction

Tabular Parameters

(I) Basic Parameters

(II) Core Component Parameters

Product Functions

1. Fully Automatic Production: Equipped with downward shooting unit, extraction device, automatic picking, and four-function manipulator (forward/backward, clamping/unclamping, cooling, height adjustment);
2. Precision Control: Equipped with MOOG or GEFRAN wall thickness control system, staggered progressive heating method, and intelligent regulation of temperature and pressure;
3. Flexible Adaptability: Mold space can be adjusted on demand, supporting multiple raw materials, with optional spring-type or pneumatic loader;
4. Convenient Maintenance: Pneumatic valve group integrated in an independent cabinet, neat water circuit, and multi-row screw hole backplate for easy fixture installation.

Product Advantages

1. High Efficiency and Energy Saving: Fully automatic process with low power consumption, hydraulic system saving over 50% energy, and intelligent heating reducing energy consumption;
2. Stability and Reliability: Core components from well-known brands (, Haiti, Taiwan Yuken, etc.), and double-station single die head design ensuring stable operation;
3. Safe and Easy Operation: Equipped with machine protective cover, multi-language interface, enabling quick operation and convenient maintenance;
4. Quality Assurance: Cast aluminum heating plates (twice the cost of ceramic ones), efficient cooling system, and qualified product quality.

Product Features

1. High-Quality Materials: Key components made of high-strength materials such as 38CrMoAl and 45# steel, ensuring strong durability;
2. Customizable Adaptation: Mold size and feeding method can be adjusted according to customer needs;
3. Multiple Cooling Systems: Barrel air cooling + feed zone water cooling, and hydraulic system water cooling, ensuring stable oil temperature control;
4. Standardized Design: Compliant with international standards, strong component versatility, and guaranteed after-sales service.

Application Scenarios

Suitable for producing various plastic containers and bottles made of PE, HDPE, PP, and PVC, with a maximum product volume of 25L. It is widely used in the manufacturing of packaging containers in chemical, food, , daily chemical and other industries. It needs to be installed in an indoor workshop with foundation concrete ≥16cm and overhead crane height ≥5m.
