Detail Information

Design:	Custom Shapes And Sizes Available	Layers:	1-5
Capacity:	200L	Material:	HDPE
Color:	Customized	Condition:	New
Voltage:	380v-415v	Plastic Processed:	HDPE
Highlight:	200L extrusion blow molding machine , high output auto molding equipment , stable extrusion blow molding machine

Product Description

New Type Extrusion blow molding machine for 200L water drum plastic bucket mechanical

The equipment fits the forming of PE, HDPE, PP, PVC and more plastic raw materials. Various shaped plastic storage containers and bottles can be produced, whose maximum volume is 25L.
Dual-station single die head layout is adopted for steady performance and outstanding productivity.
Almost all key assemblies of this blow molding unit are imported from globally renowned manufacturers.
Fully automated workflow cuts power loss while boosting efficiency; operation is safe and fast, and routine upkeep is uncomplicated.

Product Introduction

Weifang Xinhengda Machinery Co., Ltd. launches this 200L blow molding equipment. The device is tailored to process PE materials and complies completely with GB13508-92 and SN04499.2-95 specification standards.

With dual-station single die head layout installed, the machine adopts a full-automatic manufacturing workflow.

It matches a wide range of raw resins including PE, HDPE, PP and PVC, and creates plastic bottles and storage containers in all styles, with the maximum product volume limited to 25L.

It owns outstanding plasticizing efficiency, enabling safe operating steps and trouble-free daily upkeep.

Technical Specification Chart

1. Basic & Working Condition Parameters

Category	Specific Parameters
Working Environment	Indoor air circulation; humidity ≤ 90%; temperature 0-45℃; Isolate from magnetic radiation; requires overhead crane ≥ 5m in height and concrete foundation ≥ 16cm in thickness
Power Supply	Three-phase 4-wire, 50Hz, 380V-415V
Cooling Water	Water temperature ≤ 20℃; water pressure ≥ 0.3Mpa; water consumption 50T/H
Air Source	Air supply pressure 0.8Mpa; product molding pressure 0.2-0.65MPa
Raw Materials	HDPE (High-Density Polyethylene)/PE (Polyethylene)
Machine Dimensions (L×W×H)	8×3.5×5m
Machine Weight	20 tons
Total Load Power	193KW, average consumption 90KW
Product Capacity Range	30-125L
Output Efficiency	180KG/H (maximum melting capacity 200KG/H)

2. Core Component Technical Parameters

Component	Key Parameters
Extruder	Screw diameter 80/90/80MM; L/D ratio 28:1; material 38CrMoAl; 37/45/37KW hydraulic servo motor; 12 heating zones (36KW)
Die Head	Energy storage style; capacity 13L/9.5KG; material 38CrMoAl & 45# steel; 5 heating zones (30KW)
Clamping Unit	3-piece type (with 2 tie bars); clamping force 480KN; clamping speed 500mm/s; template size H1250×W1030MM
Hydraulic System	Delta servo main hydraulic power unit; 40% energy saving; oil tank 500L (water-cooled)
Electrical System	PLC + touch screen; Multi-language display function (Chinese + English + local language)

3. Equipment Configuration & Machine Parts

Configuration/Parts	Details
Core Configuration	The machine is fitted with dedicated wall thickness adjustment devices and a conventional bottom feeding structure. The complete production line achieves fully automated blank taking and finished part unloading, equipped with a position-adjustable manipulator and a separate pneumatic power unit.
Optional Auxiliary Equipment	Automatic loader, 400-type crusher, 20HP air cooler, 15KW screw air compressor, 1.5m³ air tank
Key Component Brands	Low-voltage equipment (); pneumatic components (STNC & AIRTAC); hydraulic components (Yuken); PLC (); wall thickness control (Moog); servo oil pump (Sumitomo)

Product Functions

1. Fully automatic production: Integrates feeding, extrusion, blow molding, and picking; supports top blowing & side blowing modes

2. Precision control: Moog 200-point axial wall thickness control; PLC intelligent temperature control (peak-shifting progressive heating method)

3. Flexible adaptation: Adjustable robot (forward/backward movement, opening/closing, water cooling, height adjustment); compatible with products of 30-125L capacity

4. Easy maintenance: Independent pneumatic station (centralized valves); manifold-designed cooling hoses (neat and non-obstructive)

Product Advantages

1.High efficiency & stability: Dual-station single die head design; output 180KG/H; average power consumption only 90KW (energy-saving)

2. Reliable quality: Core parts from international renowned brands; machine body made of 45# steel & A3 steel; 12-month warranty

3. Energy saving & consumption reduction: Hydraulic system with fast response, saving over 40% energy; intelligent heating reduces power consumption

4. User-friendly operation: Multi-language touch screen; multi-row screw template for clamping unit (easy fixing)

Product Features

1.Structural characteristics: 3-layer extruder + accumulation die head; 3-piece clamping unit; frame with elevator (cast steel material)

2.Process characteristics: Fully automatic process; servo valve-controlled wall thickness; combined water + air cooling system

3.Adaptability characteristics: Compatible with multiple materials (PE, HDPE, PP, PVC); flexible product shapes

4.Standard characteristics: Complies with GB13508-92 and SN04499.2-95 international standards; export-grade 40'OT standard packaging

Application Scenarios

Suitable for producing various plastic containers and bottles made of PE, HDPE, PP, and PVC, with a maximum product volume of 25L. It is widely used in the manufacturing of packaging containers in chemical, food, , daily chemical and other industries. It needs to be installed in an indoor workshop with foundation concrete ≥16cm and overhead crane height ≥5m.

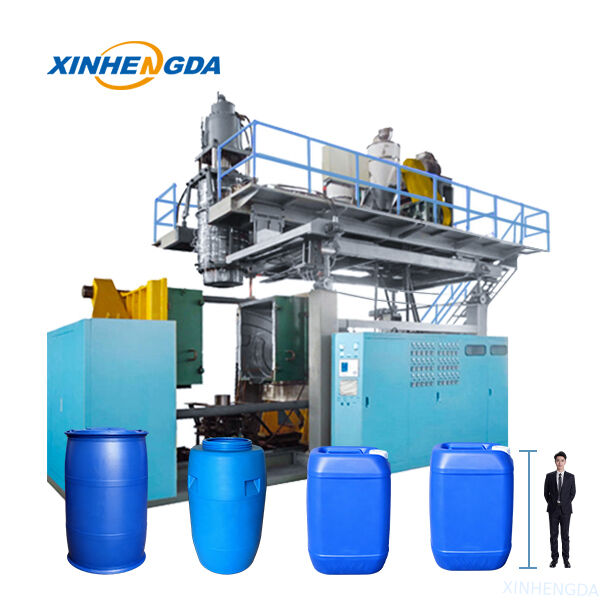

200L Extrusion Blow Molding Machine Manufacturer Stable High Output Auto Molding Equipment 0

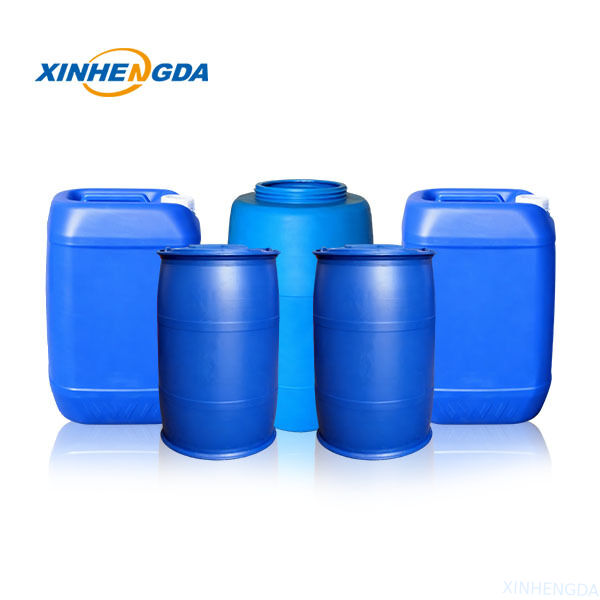

200L Extrusion Blow Molding Machine Manufacturer Stable High Output Auto Molding Equipment 1

Ratings & Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

x*n

Argentina Apr 30.2026

trustpilot.com

Helpful (100)

This mechanical equipment is well-built and runs steadily. It brings an excellent user experience.

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	150L water drum plastic bucket mechanical

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

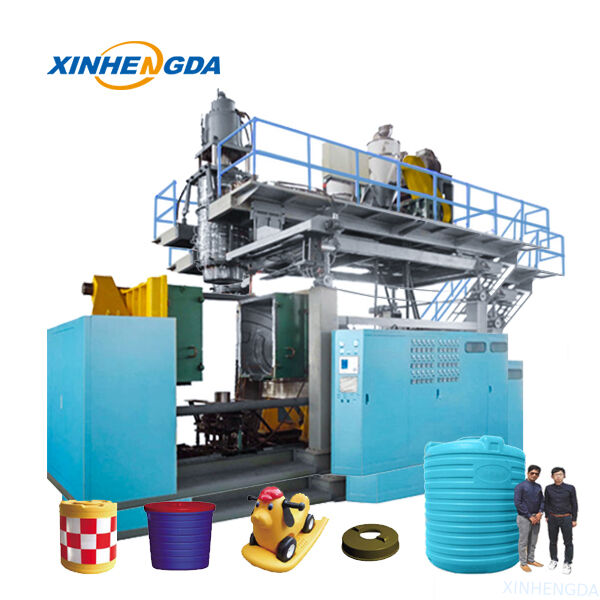

200L Extrusion Blow Molding Machine Manufacturer Stable High Output Auto Molding Equipment
