Detail Information

Hydraulic System:	Servo Hydraulic	Keywords:	High Speed Automatic
Blow Molding Type:	Extrusion Blow Molding Machine	Bottle Max Volume:	Can Be Customized
Material Application:	PP/PE/LDPE/HDPE/LLDPE/ABS/PETG/PC/PS	Material:	HDPE, LDPE, PP
Molding Method:	Blow Molding	Speed:	High Speed
Highlight:	500L plastic molding device , low noise extrusion blow molding machine , 4 layer auto extrusion machine

Product Description

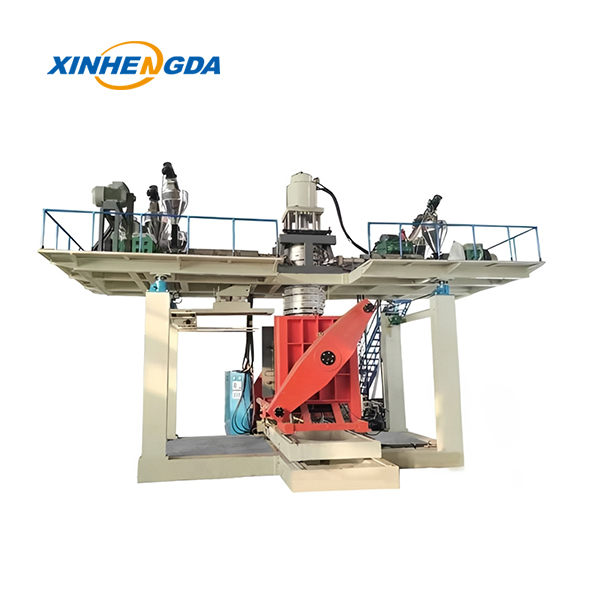

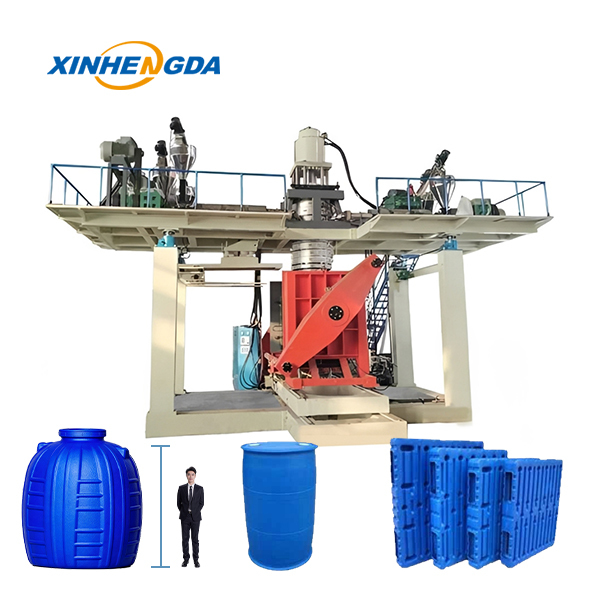

500 L Stable 4 Layer Plastic Molding Device Low Noise High Speed Auto Extrusion Blow Molding Machine

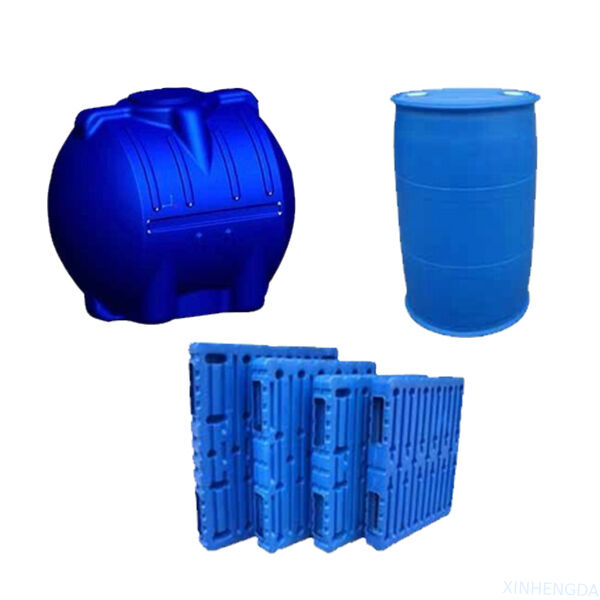

1.This molding unit supports the fabrication of multiple plastic raw materials such as PE, HDPE, PP, PVC and other resin materials. It is capable of manufacturing plastic barrels, vessels and bottles with diverse outlines, and the largest capacity of finished products can hit 25 liters.
2.Equipped with twin-station single mold head construction, the equipment maintains steady operation status and brings outstanding mass production output.
3.Most spare parts fitted on this plastic blow molding equipment are imported from globally reputable component manufacturers.
4.Designed with full-automatic operation flow, the machine features reduced energy loss and excellent working productivity. It also comes with reliable safety protection, easy daily operation and simple regular upkeep work.

Product Introduction

This 500L triple-layer extrusion blow molding equipment is self-developed and manufactured by Weifang Xinhengda Machinery Co., Ltd. The device is specially customized to process HDPE high-density polyethylene materials and adopts a robust standard frame design. With advanced manufacturing techniques and upgraded overall configurations, it enables high-yield and consistent molding of large-capacity plastic finished goods.

Tabular Parameters

Key Attributes	Specifications
Plastic Processed	HDPE, PE, HDPE/PP
Clamping Force (kN)	1800
Automation	Automatic
Voltage	380v-415v
Key Selling Points	Multilayer
Warranty	1 Years
PLC Brand
Core Components	PLC, Gearbox, Motor, Gear, Pump
Machinery Test Report	Provided
Video Outgoing-Inspection	Provided
Output (kg/h)	500 kg/h
Place of Origin	Shandong, China
Power (kw)	500
Weight (t)	70
Brand Name	SEHENDA
Dimension (LWH)	11M8M6.5M
Screw L/D Ratio	30
Screw Diameter (mm)	100 mm
Screw Heating Power (kw)	80 kW
Extruder Motor Power (kw)	75 kW
Mold Platen Size (Width) (mm)	1800 mm
Mold Platen Size (Height) (mm)	1900 mm
Air Pressure (mpa)	0.65 MPa
Air Consumption (m³/min)	2 m³/min
Die Head Heating Power (kw)	90 kW
Blow Moulding Type	Extrusion Blow Moulding
After-sales Service Provided	Online support
Material	HDPE
Certification	CE ISO
Packaging Details	Simple packaging
Port of Dispatch	QINGDAO
Selling Units	Single item
Supply Ability	20 sets per Year

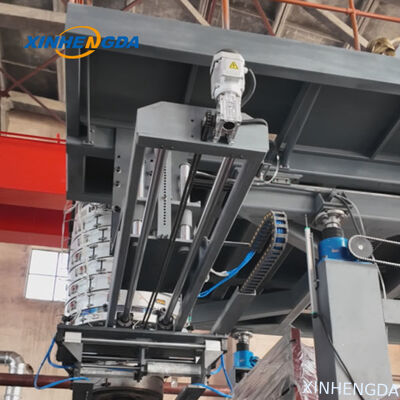

500L Stable 4 Layer Plastic Molding Device Low Noise Auto Extrusion Blow Molding Machine 0
