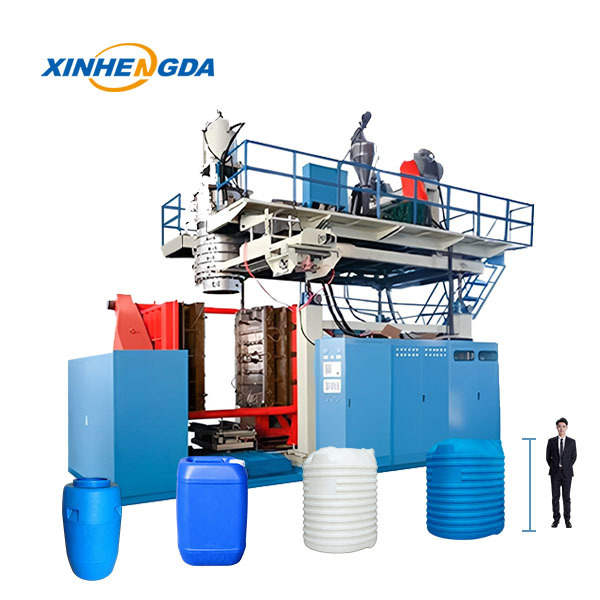

Extrusion Blow Molding Production Line for 200L Chemical Packaging Jerrycan

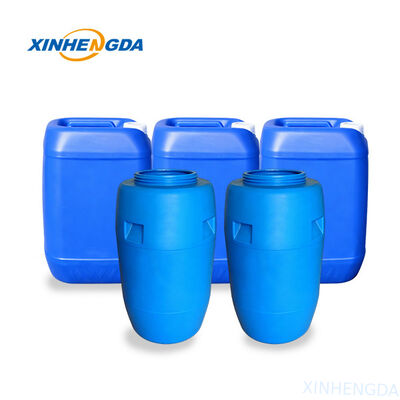

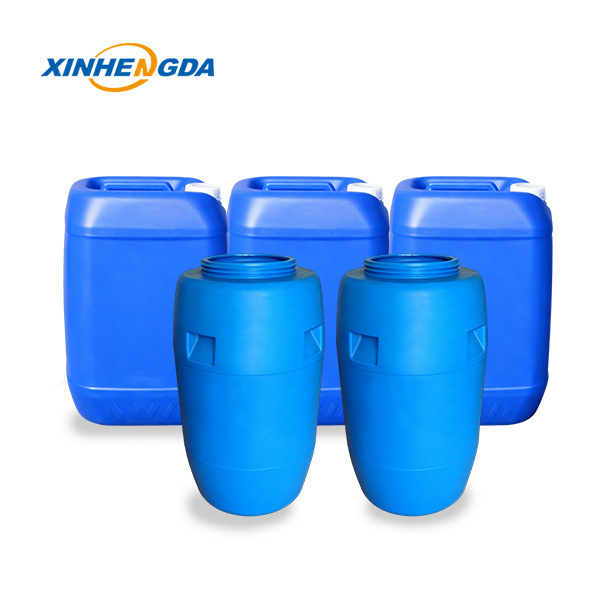

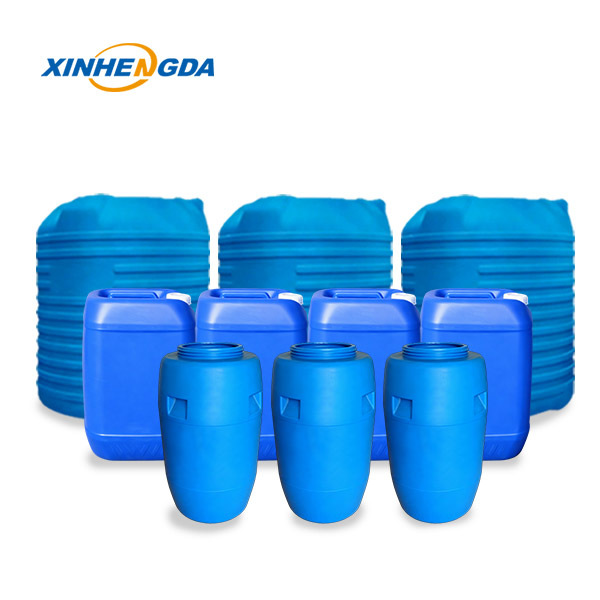

Xinhongda 200L Plastic Chemical Drum & Jerrycan Extrusion Blow Molding Production Line is engineered with well-refined extrusion blow molding technology, and integrates servo drive system, intelligent wall thickness regulation and high-precision mold locking mechanism. It is capable of manufacturing double-ring drums, open-mouth drums and other series of products with a specification scope of 100-220L, and is adaptable to raw materials including HMW HDPE. The end products feature evenly distributed wall thickness, superior airtightness and anti-leakage properties, together with high impact resistance and corrosion resistance, complying with the rigorous packaging standards for hazardous chemicals, food and various other products. This production line is extensively applied in chemical industry, petroleum, food processing, environmental protection and related sectors, and supports single-layer/multi-layer co-extrusion processing to satisfy diverse performance demands of different applications.
|
Attribute Category
|
Specific Content
|
|
Processed Material
|
HDPE, PE
|
|
Clamping Force (kN)
|
700
|
|
Automation Level
|
Automatic
|
|
Voltage
|
380
|
|
Key Selling Points
|
Energy Saving, High Speed
|
|
Warranty Period
|
1 Year
|
|
Number of Screw Heating Zones
|
5
|
|
PLC Brand
|
Siemens
|
|
Core Components
|
PLC, Gearbox, Motor, Gear
|
|
Machinery Test Report
|
Provided
|
|
Outgoing-Inspection Video
|
Provided
|
|
Output
|
300 kg/h
|
|
Place of Origin
|
Shandong, China
|
|
Power
|
55 kW
|
|
Weight
|
28 t (tons)
|
|
Brand Name
|
XHD, XINHENGDA
|
|
Dimension (L×W×H)
|
7×5×6 (Unit not specified, default in meters)
|
|
Screw L/D Ratio
|
32
|
|
Screw Diameter
|
80 mm
|
|
Screw Heating Power
|
45 kW
|
|
Extruder Motor Power
|
45 kW
|
|
Mold Platen Size (Width)
|
1350 mm
|
|
Mold Platen Size (Height)
|
1350 mm
|
|
Air Pressure
|
0.5 MPa
|
|
Air Consumption
|
0.3 m³/min
|
|
Die Head Heating Power
|
55 kW
|
|
Blow Molding Type
|
Blow 50L-220L HDPE Barrels
|
|
After-Sales Service
|
Provided, Overseas Machinery Service, Life-Long Service After Warranty
|
|
Station
|
Single
|
|
Product Name
|
Automatic Blowing Molding Machine, Chemical Drum Blow Moulding Machine
|
|
Packaging Details
|
40HQ (40ft High Cube Container, corrected from original 40OH)
|
|
Port of Dispatch
|
QINGDAO
|
|
Selling Units
|
Single item
|
|
Supply Capacity
|
100 sets per Year
|
1. High-Efficiency Extrusion Blow Molding
Optimized structural design of the screw and die head achieves high-efficiency plasticizing and uniform extrusion of raw materials, guaranteeing consistent wall thickness and steady molding of drum bodies.
2. Intelligent Wall Thickness Control
The 100-point closed-loop wall thickness control system dynamically adjusts parison thickness in real time, cutting down raw material consumption and enhancing the overall structural strength of products.
3. Stable Mold Clamping & Forming
Large mold clamping force configuration paired with a servo-hydraulic drive system ensures accurate mold closing and locking, yielding finished products with burr-free edges and highly reliable sealing performance.
4. Multi-Layer Co-Extrusion Compatibility
Supports 1 to 3 layer co-extrusion processing, and can customize functional characteristics like barrier performance and anti-static properties, meeting the specialized packaging needs of special media.
5. Automatic Temperature Control & Protection
5-zone intelligent automatic temperature control is equipped with overload and over-temperature protection mechanisms, ensuring the continuous and stable running of the whole equipment during production.
1.High Efficiency & Energy Conservation
Boasts a 25%–35% reduction in raw material consumption versus rotational molding machines; the integrated servo drive system slashes energy consumption by more than 40%, with the average operational power consumption standing at just 180kW.
2.Superior Production Capacity
Features a material melting capacity of 400KG/H, and the overall production output is significantly higher than that of conventional rotational molding equipment of the same specification.
3.Excellent Product Quality
The finished plastic containers deliver enhanced impact resistance than rotational molding products, with highly consistent wall thickness and consistently stable product performance throughout production.
4.Low Labor Cost
Requires only 2 operators for the main unit operation; the full production line can be efficiently run with a total of 3–4 staff members.
5.Comprehensive After-Sales Guarantee
Comes with a 1-year official warranty, covering on-site installation commissioning, professional operator training courses, and on-site mold testing and debugging services.
1. Mature Technology
Adopts a proven extrusion blow molding process, and is compatible with HMW HDPE and other raw material types, ensuring outstanding structural strength and chemical resistance of the finished products.
2. Optimized Structure
The double-ring drum structural design boosts stacking stability; a single drum can withstand a load of over 300kg, making it more convenient for warehousing and long-distance transportation operations.
3. Safety & Compliance
Finished products fully comply with UN packaging norms and are applicable for hazardous chemical packaging, effectively safeguarding the safety of product storage and transportation links.
4. Environmental Protection & Energy Conservation
Equipped with a servo drive system to cut down energy consumption; the finished drums are recyclable and re-usable, and fully meet RoHs environmental protection and compliance requirements.
5. Strong Compatibility
Supports a variety of raw materials and product specifications, and offers customized production solutions to fulfill the application demands of diverse industrial fields.
1. Chemical Industry
Storage and transportation of hazardous chemicals including acid-base solvents, coatings, resins and adhesives, designed to meet strict corrosion resistance demands in chemical operations.
2. Petrochemical Industry
Packaging for petroleum-derived products such as lubricants, fuel oils and antifreeze, delivering exceptional airtightness, leak-proof capability and weather durability in harsh conditions.
3. Food Industry
Filling, storage and transit of food-grade liquids like edible oil, soy sauce and alcohol, fully conforming to food contact material safety standards and hygiene requirements.
4. Agricultural Field
Storage and transportation of pesticides, chemical fertilizers, feeds and other agricultural products, well-suited for rugged outdoor environments and long-term storage needs.
5. Environmental Protection Field
Wastewater recycling, temporary storage of hazardous waste, chemical effluent treatment and related applications, complying with environmental protection regulations and compliance criteria.
6. Logistics & Warehousing
Serving as universal packaging containers for factory turnover and containerized shipping, effectively enhancing the utilization efficiency of warehousing space and logistics operations.
