Detail Information

Condition:	NEW	Driven Type:	Electric
Cap Type:	Plastic Screw Cap	Application:	Production Of Hollow Plastic Products Such As Bottles, Containers, And Medical Devices
Plasticizing Way:	By Screw	Productname:	Injection Blow Molding Machine
Highlight:	injection blow moulding machine price 200l , electric driven injection blow moulding machine price , 200l injection stretch blow moulding machine

Product Description

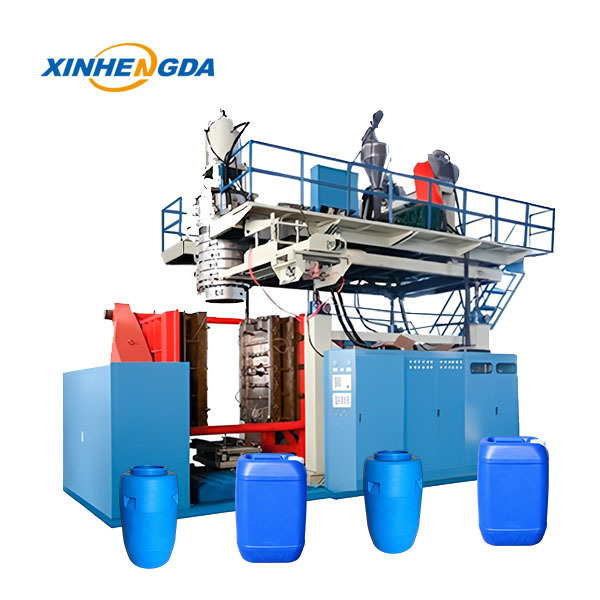

200L Plastic Chemical Drum/Jerrycan Dedicated Extrusion Blow Molding Production Line

Product Introduction

Xinhongda’s Extrusion Blow Molding Production Line – custom-engineered for 200L plastic chemical drums and jerrycans – is built on proven, time-honed blow molding technologies. This integrated production line comes equipped with three premium core modules: a servo-driven transmission mechanism, an intelligent wall thickness control system, and a high-precision mold locking unit. Boasting a versatile production scope of 100-220L, it can fabricate a full range of products such as double-loop drums and open-mouth drums, and is fully adapted for HMW HDPE and all other suitable raw materials. The finished containers deliver uniform wall thickness, excellent hermetic sealing and anti-leakage performance, as well as exceptional impact and corrosion resistance. These superior characteristics allow the end drums to meet the stringent packaging criteria for hazardous chemicals, food and other relevant products. Adaptable to both single-layer and multi-layer co-extrusion processes to meet varied performance requirements, this production line is widely utilized across core sectors including chemical engineering, petroleum, food processing, environmental protection and more.

Tabular Parameters

Attribute Category	Specific Content
Processed Material	HDPE, PE
Clamping Force (kN)	700
Automation Level	Automatic
Voltage	380
Key Selling Points	Energy Saving, High Speed
Warranty Period	1 Year
Number of Screw Heating Zones	5
PLC Brand	Siemens
Core Components	PLC, Gearbox, Motor, Gear
Machinery Test Report	Provided
Outgoing-Inspection Video	Provided
Output	300 kg/h
Place of Origin	Shandong, China
Power	55 kW
Weight	28 t (tons)
Brand Name	XHD, XINHENGDA
Dimension (L×W×H)	7×5×6 (Unit not specified, default in meters)
Screw L/D Ratio	32
Screw Diameter	80 mm
Screw Heating Power	45 kW
Extruder Motor Power	45 kW
Mold Platen Size (Width)	1350 mm
Mold Platen Size (Height)	1350 mm
Air Pressure	0.5 MPa
Air Consumption	0.3 m³/min
Die Head Heating Power	55 kW
Blow Molding Type	Blow 50L-220L HDPE Barrels
After-Sales Service	Provided, Overseas Machinery Service, Life-Long Service After Warranty
Station	Single
Product Name	Automatic Blowing Molding Machine, Chemical Drum Blow Moulding Machine
Packaging Details	40HQ (40ft High Cube Container, corrected from original 40OH)
Port of Dispatch	QINGDAO
Selling Units	Single item
Supply Capacity	100 sets per Year

Product Core Functions

1. High-Efficiency Extrusion Blow Molding Performance

By virtue of the optimized structural design for both screw and die head, the system realizes high-efficiency plastic melting and uniform material extrusion. This design not only ensures consistent wall thickness of the end products but also secures the stable forming quality of the whole drum body.

2. Smart Wall Thickness Regulation System

Equipped with a 100-point closed-loop wall thickness control unit, the line enables real-time dynamic regulation of parison thickness. This cutting-edge feature effectively reduces raw material wastage while further boosting the overall structural rigidity of the finished drums.

3. Stable Mold Clamping & Forming Precision

The equipment is configured with a high mold clamping force design and integrated with a servo-hydraulic drive system. This synergy ensures precise and tight mold closure, resulting in finished products that are free from flash blemishes and feature reliable hermetic sealing performance.

4. Compatibility with Multi-Layer Co-Extrusion Technology

This production line is compatible with 1 to 3 layers of co-extrusion processing, which allows for the customized development of special product functionalities including barrier performance and anti-static properties. It therefore fully caters to the professional packaging requirements of various special media.

5. Automatic Temperature Control & Comprehensive Protection Mechanism

The 5-zone automatic temperature control system is outfitted with both overload and over-temperature protection capabilities. This dual-protection structure effectively protects the continuous and steady operation of the entire production line equipment.

Product Competitive Advantages

1.High Efficiency & Energy Conservation:This production line delivers outstanding efficiency and energy savings: it slashes raw material consumption by 25%–35% in comparison to rotational molding machines. The integrated servo system drives energy use down by more than 40%, with the average operating power consumption standing at just 180kW.

2.Superior Production Capacity:Boasting a material melting capacity of 400KG/H, the line achieves an overall output that is significantly higher than conventional rotational molding equipment of the same specification.

3.Excellent Product Quality:The finished plastic containers feature far stronger impact resistance than rotational molding products, paired with highly consistent wall thickness and stable, reliable product performance across all batches.

4.Low Labor Cost:The main unit only requires 2 operators for daily operation and management; the entire production line can be fully run with a total of 3–4 staff members, greatly reducing labor input.

5.Comprehensive After-Sales Guarantee:A complete 1-year warranty service is provided, covering on-site installation and commissioning, professional operational training for staff, as well as on-site mold testing and trial running services.

Product Distinctive Features

1.Adopts a proven, stable extrusion blow molding process and is compatible with HMW HDPE and other applicable raw materials, effectively ensuring superior product structural strength and chemical resistance performance.

2.Featured with a double-ring drum structural design that enhances stacking stability; a single drum can withstand a load of over 300kg, greatly streamlining the efficiency of warehousing and logistics transportation.

3.The finished products fully comply with UN packaging standards and are applicable for the packaging of hazardous chemical products, effectively safeguarding the safety of the entire storage and transportation process.

4.The servo drive system effectively cuts down on energy consumption; meanwhile, the finished products are recyclable and reusable, and fully conform to RoHs environmental protection specifications and requirements.

5.Supports a variety of raw materials and product specifications, and is capable of customized production services, perfectly meeting the diversified application demands across multiple industrial fields.

Application Scenarios

1. Chemical Industry: Tailored specifically for the storage and transportation of hazardous chemicals like acid-base solvents, coatings, resins and adhesives. It boasts excellent corrosion resistance, which enables it to meet the rigorous packaging requirements for chemical products.

2. Petrochemical Industry: Specialized in packaging oil products including lubricating oil, fuel oil and antifreeze. With exceptional sealing performance, reliable leak-proof effect and strong weather durability, it effectively ensures the safety of oil product storage and transportation processes.

3. Food Industry: Suitable for the filling, storage and transportation of food-grade liquids such as edible oil, soy sauce and alcohol. The product fully adheres to the relevant standards for food contact materials, guaranteeing the safety and hygiene of food-related liquids throughout the entire circulation cycle.

4. Agricultural Field: Perfect for storing and transporting agricultural products like pesticides, fertilizers and feeds. It is specially engineered to adapt to harsh outdoor environments, maintaining stable performance even under complex climatic and terrain conditions.

5. Environmental Protection Field: Extensively applied in environmental protection scenarios including wastewater recycling, temporary storage of hazardous waste and chemical waste liquid treatment. It complies with the corresponding environmental protection compliance criteria, contributing to green and sustainable environmental management.

6. Logistics & Warehousing: Functions as universal packaging containers for factory turnover and container shipping. Its scientifically rational structural design helps enhance warehouse space utilization and optimize logistics operation efficiency.

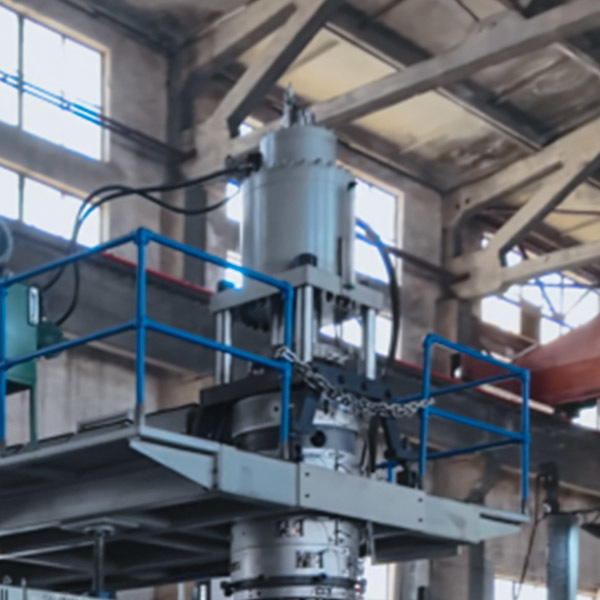

Electric Driven Injection Blow Moulding Machine Price 200L Plastic Chemical Drum / Jerrycan 0

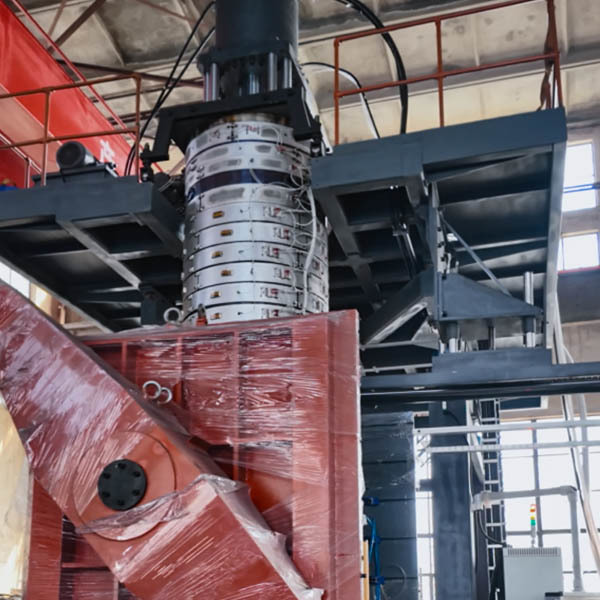

Electric Driven Injection Blow Moulding Machine Price 200L Plastic Chemical Drum / Jerrycan 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	200L Blow Molding Machines

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+

Electric Driven Injection Blow Moulding Machine Price 200L Plastic Chemical Drum / Jerrycan

injection blow moulding machine price 200l
