Detail Information

Productionmethod:	Blow Molding	Oem:	Yes
Applicable Field:	Food Industry	Plc Brand:	MITSUBISHI
Template Distance:	150~560mm	Raw Material:	HDPE
Driven Type:	Electric And Hydrulic	Bottle Materials:	PP/PE/PC
Key Selling Points:	Energy Saving	Automation:	Automatic
Highlight:	Extrusion blow molding machine with 10000L tank , Large capacity blow molding machine , Industrial water tank molding machine

Product Description

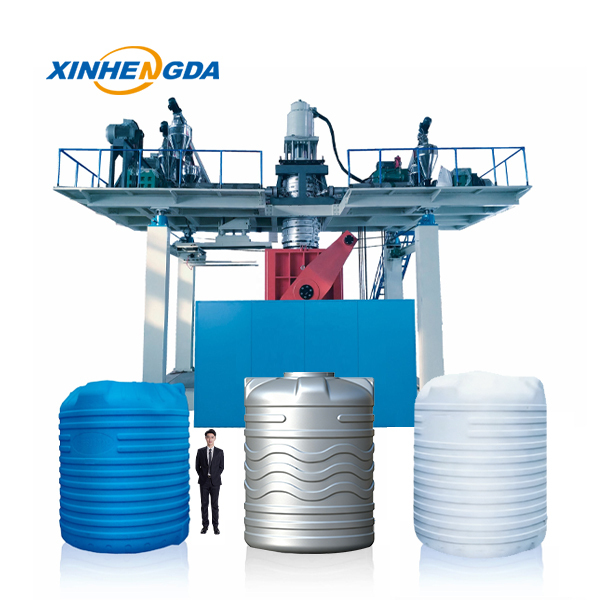

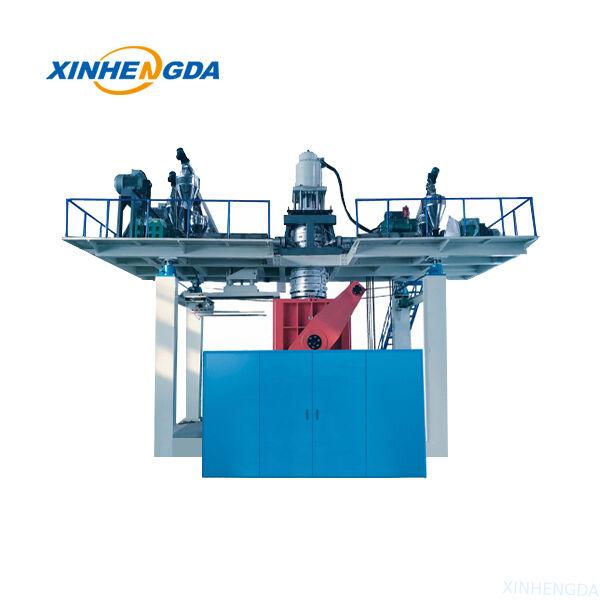

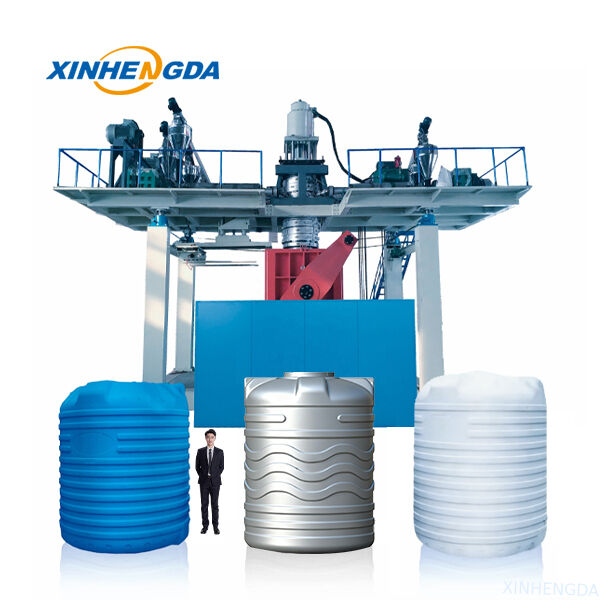

Extrusion Blow Moulding Machine Manufacturers Large 10000L Water Tank Unit

Product Introduction

Tailored for industrial production, this 10000L plastic water tank blow molding unit delivers outstanding production efficiency with customizable configuration.Designed and manufactured in-house by a seasoned Shandong enterprise boasting 30 years of R&D and production experience for oversized blow molding equipment, this unit is tailor-made for mass fabrication of big-volume water tanks and large hollow plastic vessels.It effectively solves two major points during big tank processing: low production efficiency and fluctuating molding dimensional accuracy seen on conventional blow molding devices.

Tabular Parameters

Parameter	Details
Workable Plastic Base Materials	HDPE, PE
Mould Holding Power	2000 KN
Automatic Running Mode	Automatic
Voltage	380-415V
Key Selling Point	Multi-layer Composite Build Structure
Warranty	1 Year
No. of Screw	7
Core Components	PLC Control Module, Variable Frequency Drive, Bearing Protective Cover, Drive Motor, Transmission Gear,Liquid Transfer Pump
Visual Imaging Quality Assessment	Provided
Machinery Test Report	Provided
Production Origin	Shandong, China
Power	520 kW
Complete Equipment Mass	50 Ton
Overall Equipment Dimension Data	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Station Length	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Die Head Heating Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	According to customer requirements (container, etc.)
Port of Dispatch	QINGDAO
Annual Supply Capacity	35 Units

Product Core Functions

*Revamped 10000L heavy-duty blow molding equipment is engineered for standardized mass production of extra-large plastic water tanks and industrial hollow vessels.

*The machine supports precise adjustment for product weight and wall thickness ranging from 1mm to 10mm.

*Featuring superb forming precision, even wall distribution and strong deformation resistance, it perfectly fulfills personalized production demands for large plastic containers for civil daily use and industrial scenarios.

Product Competitive Advantages

Labor Cost Reduction

Thanks to its high level of automation, this production line requires little manual work. The entire operation can be handled by just two skilled operators, effectively cutting enterprises’ long-term labor expenses and production management overheads.

Comprehensive Training Service

We offer two weeks of complimentary on-site technical training, covering equipment operation, parameter adjustment, routine maintenance and troubleshooting. This allows your staff to get proficient quickly and put the machine into formal production in no time.

Strong Material Compatibility

With optimized extrusion and molding structures, the machine works perfectly with HDPE, PE and other mainstream plastic materials. It can adapt to diverse raw material specifications and production requirements across different areas.

Rigorous Quality Management

The entire manufacturing process is recorded and monitored via video surveillance. Before shipment, we supply full performance test reports and quality certificates to guarantee every unit complies with international export criteria.

Premium Branded Core Components

Core parts including PLC system, inverter, motor and hydraulic pump are sourced from reputable brands. They deliver steady performance, low failure probability and extended service life, helping clients save on maintenance fees.

Profound Manufacturing Expertise

We have 30 years of dedicated experience in R&D and production of large blow molding machinery. Our ongoing structural and technological upgrades ensure stable performance and reliable quality, serving plastic manufacturers

Product Distinctive Features

Intelligent Full-Automatic Operating Mode

The machine utilizes a combined PLC intelligent control unit. Via single-button startup, it can automatically finish all production steps: extrusion, mold closing, blow molding, cooling and demolding. It features reliable running status and high production capacity.

Multi-Layer Synchronous Molding Craft

This equipment applies the multi-layer concurrent blow molding process. It can upgrade the pressure-bearing capacity, corrosion resistance and sealing property of large water tanks, helping products gain stronger market advantages.

Customizable Forming Parameters

All settings related to product weight, wall thickness and molding status can be regulated flexibly. It allows customized manufacturing of large containers with different specifications to satisfy individualized market requirements.

High-Grade Core Fittings & Operational Stability

Configured with high-power and high-precision key assemblies, the device keeps stable performance during prolonged operation. It generates little vibration and noise, making it ideal for non-stop industrial mass production.

Application Scenarios

This oversized 10000L blow molding machine is tailor-made for producing big plastic storage tanks and industrial hollow containers ranging from 500L up to 10000L. Beyond all types of water storage vessels, the machine supports efficient mass production of plastic pallets, environmental waste containers, highway isolation barriers, plastic septic tanks and other oversized hollow plastic workpieces with remarkable scenario versatility.

The molding equipment has passed international standardized quality inspections. Its major overseas sales markets cover Southeast Asia, South America, Europe and multiple overseas regions. Benefiting from strong production capacity, steady continuous operation and low power consumption, the machine gains favorable evaluations from plastic processing manufacturers. It has become the preferred molding equipment for factories focusing on mass production of large hollow plastic finished products.
