Detail Information

Coolingsystem:	Water Cooling	Bottle Max Volume:	Can Be Customized
Mould:	One Cavity Or Two Cavity	Specification:	ABLB65I
Plastic Material:	PE,PP	Use:	Bottle
Rawmaterial:	PP PE	Company Attribute:	Manufacturer
Highlight:	10000L water tank blow molding machine , 3-6 layer coextrusion blow molder , extrusion blow molding machine with warranty

Product Description

10000L Water Tank 3-6 Layer Coextrusion Blow Molder blow molding machines

Product Introduction

High-performance tailor-made 10000L water tank blow molding machine, independently developed and builtin Weifang, Shandong. Our plant provides a full range of plastic blow molding equipment, barrels, containerswater tanks and matching products. Please get in touch if you have any questions about our machinery.

Tabular Parameters

Parameter	Details
Workable Plastic Raw Materials	HDPE, PE
Mould Holding Power	2000 KN
Equipment Running Mode: Full-Auto Operation	Automatic
Voltage	380-415V
Main Product Highlights	Multi-layer Composite Structure
Warranty	1 Year
Quantity of Extrusion Screws	7
Vital Equipment Components	PLC Ctrl Unit
Full-process Visual Quality Monitoring	Provided
Machinery Test Report	Supplied As Std Config
Manufacturing Production Locale	Shandong, Mainland China
Power	520 kW
Equipment Weight	50 Ton
Total Equip Outline Dims Specs	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Extruder Screw Rated Heating Capacity	80 KW
Rated Power of Extrusion Drive Motor	90 KW
Eff Length of Mold Clamp Sta	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Rated Heating Capacity of Extrusion Die Head	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Goods Packing Execution Standard	Custom-made according to purchaser's technical requirements, such as container packing and other optionalextras
Port of Dispatch	QINGDAO
Annualized Functional Manufacturing Output	35 Units

Product Core Functions

Our updated 10000L blow molding equipment is dedicated to mass standard production of oversized plasticwater tanks and industrial hollow containers. The wall thickness and final product weight can be fine-calibratedwithin 1 to 10 milimeters. With excellent molding precision, consistent wall distribution and strong resistanceto deformation, it caters to bulk custom requirements for large plastic containers for domestic and industrial applications.

Product Competitive Advantages

Labor Cost Savings

High levels of automation minimize manual work on the line. The entire production process can be run by just two skilled operators, enabling companies to save substantially on recurring labor fees and daily operational overheads.

Full Set of Technical Training

Buyers are entitled to two weeks of free on-site training, including equipment operation, parameter adjustment, daily upkeep and malfunction elimination. Your team will become proficient rapidly and start official production without delay.

Broad Adaptation to Plastic Materials

Revamped extrusion and molding designs enable the unit to run smoothly with HDPE, PE and other mainstream plastic raw materials. It is compatible with different material criteria and bespoke production requirements for a wide range of industries.

End-to-end Quality Assurance

Video surveillance runs throughout all production stages for real-time quality oversight. Prior to dispatch, we supply full test records and quality certificates to guarantee compliance with global export regulations.

High-grade Original Brand Components

All core devices such as PLC, frequency converter, drive motor and hydraulic pump are genuine parts sourced from famous brands. They feature stable running, fewer malfunctions and longer service life, bringing down ongoing maintenance expenditure for users.

Profound Expertise in Equipment Production

With 30 years of specialization in large blow molding machine manufacturing, we constantly refine our structure and technologies to maintain steady performance and superior quality. Our products are trusted by plastic manufacturers worldwide.

Product Distinctive Features

Smart Full-Auto Operation

Integrated PLC control enables one-touch start. Extrusion, clamping, blow molding, cooling and demolding are fully automatic, with stable running and high output.

Multi-layer Coextrusion Molding Technology

This process enhances water tanks’ compression resistance, anti-corrosion and sealing, lifting overall market competitiveness.

Flexible Parameter Adjustment

Key indicators like weight and wall thickness are adjustable. It produces large containers of various sizes to satisfy different market needs.

Premium Core Configuration & High Stability

Fitted with high-performance components, it runs with low vibration and noise for long hours, suitable for continuous industrial mass production.

Application Scenarios

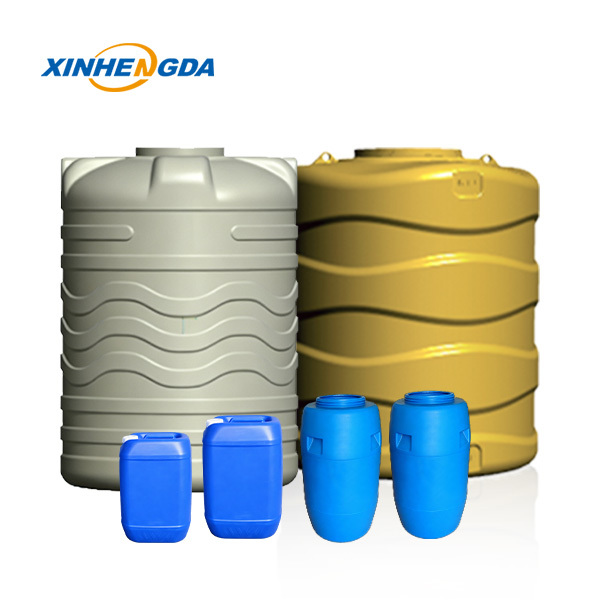

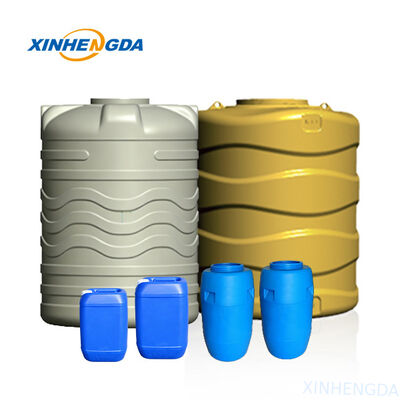

Our 10000L high-efficiency blow molding unit produces plastic water tanks and industrial containers covering500L up to 10000L. Besides these items, it can create plastic pallets, eco-friendly bins, guardrail partitions,septic tanks and various large hollow plastic products, featuring extremely wide applicability.

Built in line with international quality criteria, this machine is shipped globally. Its excellent working efficiency,steady performance and power-saving design make it a top choice for enterprises engaged in mass productionof hollow plastic wares.

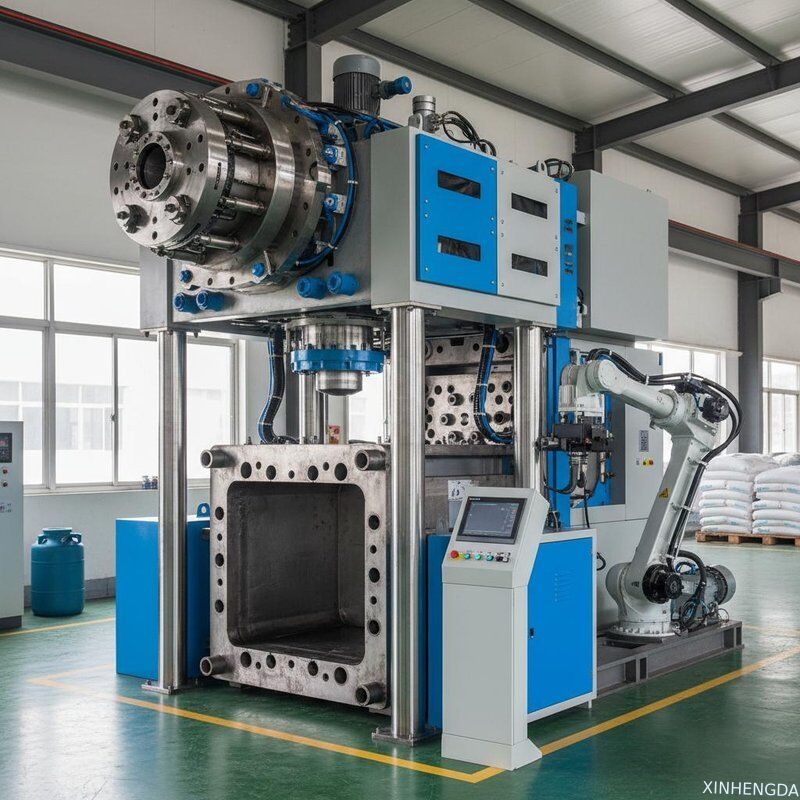

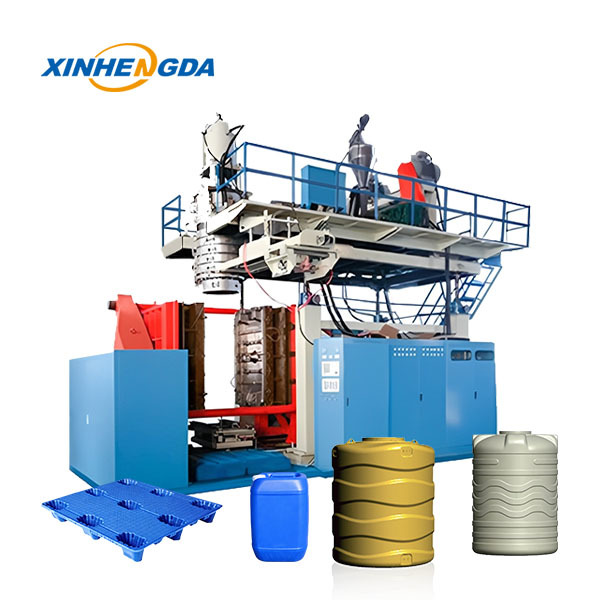

10000L Water Tank 3-6 Layer Coextrusion Blow Molder blow molding machines 0

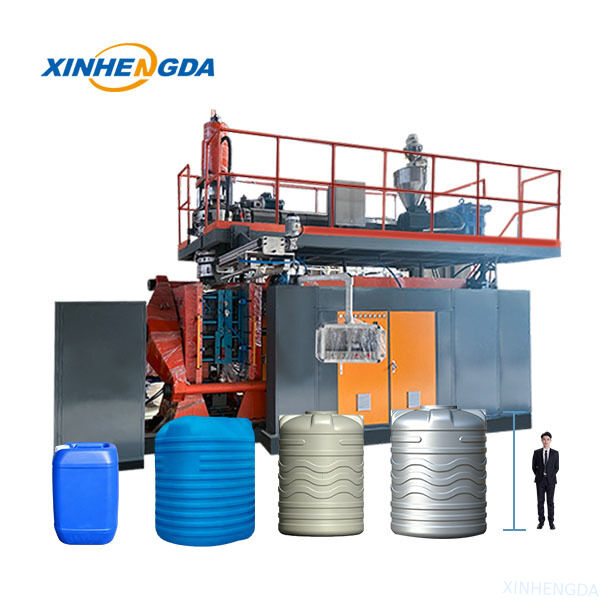

10000L Water Tank 3-6 Layer Coextrusion Blow Molder blow molding machines 1
