Detail Information

Automatic Grade:	Automatic	Product:	Chemical Bottle
Automatic Deflashing:	Yes	Hydraulic System:	Servo Hydraulic
View Strip System:	Available	Mould:	One Cavity Or Two Cavity
Condition:	New	Port:	SHANGHAI
Highlight:	3-6 ply coextrusion blow molder , 10000L water tank molding machine , accumulator blow molding machine with warranty

Product Description

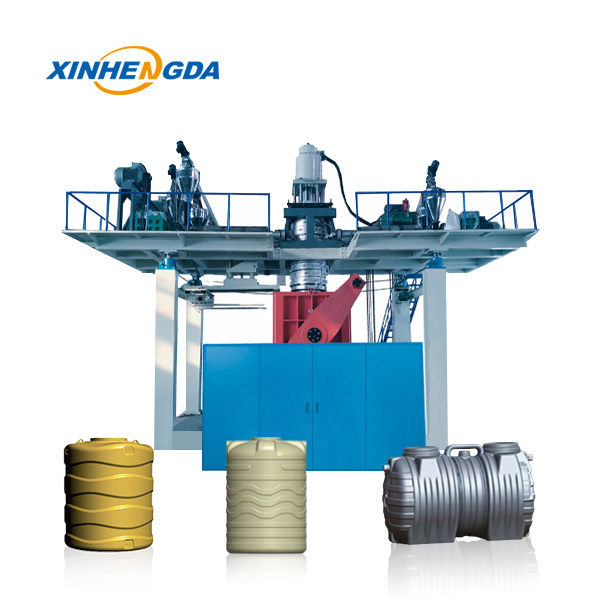

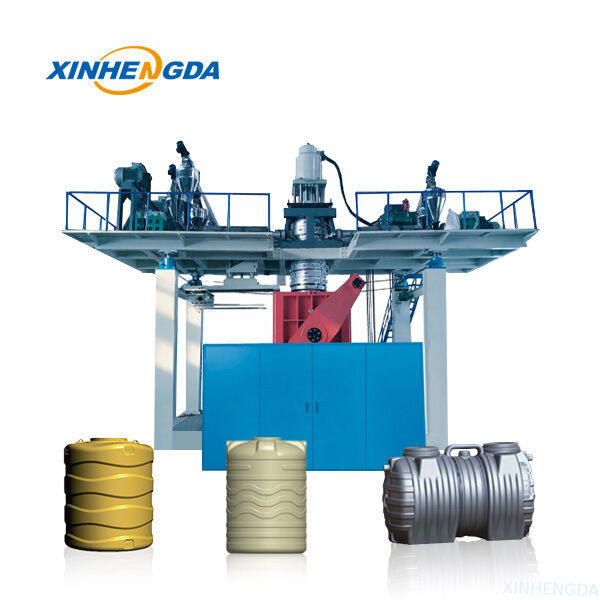

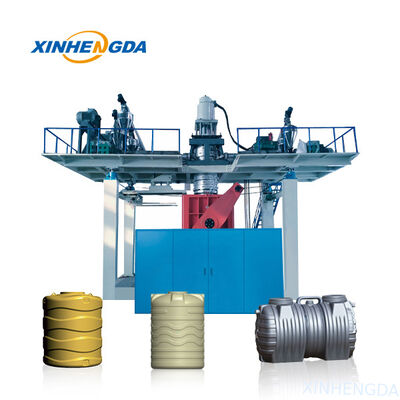

3-6 Ply Coextrusion Accumulator Blow Molder for 10000L Water Tank drum molding line

Product Introduction

High-efficiency custom 10000L water tank blow molding machine, independently designed & manufactured inWeifang, Shandong. Our factory supplies plastic blow molding equipment, drums, cans, water tanks andrelated items. Contact us for machinery enquiries.

Tabular Parameters

Parameter	Details
Processable Plastics	HDPE, PE
Mould Holding Power	2000 KN
Operation Type: Automatic	Automatic
Voltage	380-415V
Core Product Advantages	Multilayer Composite Construction
Warranty	1 Year
Quantity of Extrusion Screws	7
Core Components	PLC Ctrl Module, Freq Chgr, Bearing Prot Cover, Drv Motor, Trans Gear, Hyd Feed Pump
Full-proc Vid-based Qual Superv	Provided
Machinery Test Report	Supplied As Std Config
Manufacturing Production Locale	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Total Equip Outline Dims Specs	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Extruder Screw Rated Heating Capacity	80 KW
Rated Power of Extrusion Drive Motor	90 KW
Eff Length of Mold Clamp Sta	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Rated Heating Capacity of Extrusion Die Head	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Goods Packing Execution Standard	Customized per buyer's Spec Reqs (e.g. Cont Pack and other options)
Port of Dispatch	QINGDAO
Yearly Available Production Output	35 Units

Product Core Functions

Newly upgraded 10000L blow molding unit for standard production of oversized plastic water tanks & industrial hollow containers. Operators can accurately tune wall thickness and finished weight within 1–10mm. Boasting high forming accuracy, even wall thickness and good anti-deformation ability, it meets custom bulk demands for large plastic containers in civil and industrial fields.

Product Competitive Advantages

educed Manpower Expenditure

Thanks to high automation, the assembly line minimizes labor input. A team of just two skilled technicians can manage all production work, helping businesses save on long-term labor and daily administrative costs.

All-round Technical Training Support

Buyers will receive 2 weeks’ free on-site training on equipment use, parameter calibration, regular upkeep and fault diagnosis. Operators can master skills rapidly and launch formal production soon after.

Wide Raw Material Adaptability

With upgraded extrusion and forming design, the machine works perfectly with HDPE, PE and other mainstream plastic raw materials. It fits different material standards and custom production demands across multiple industrial sectors.

Strict Whole-process QC Control

Every production step is under real-time video supervision. Complete test documents and quality certifications are provided prior to shipment to guarantee compliance with global export norms.

Top-tier Brand Original Key Parts

Key units such as PLC, frequency converter, drive motor and hydraulic pump adopt original parts from reputable manufacturers. They deliver steady performance, fewer breakdowns and longer service span, cutting post-operation maintenance fees.

Rich Industrial Production Know-how

Boasting 30 years of expertise in large blow molding machinery, we keep optimizing structure and technology for consistent equipment performance and quality. Our products serve plastic manufacturers around the world.

Product Distinctive Features

Intelligent Fully Automated Running

Adopt integrated PLC smart control with one-button startup. Extrusion, mold closing, blow molding, cooling and demoulding are fully automated. The equipment features stable operation and excellent productivity.

Multi-layer Co-extrusion Blow Forming Craft

Our multi-layer co-extrusion blow molding technology enhances large water tanks in compression resistance, anti-corrosion and tightness, greatly boosting product market advantages.

Adjustable Customized Parameter Setup

All key parameters like product weight, wall thickness and forming indicators are adjustable. It can produce large containers of different sizes on demand to fit varied market needs.

High-Grade Core Setup with Reliable Stability

Fitted with premium high-performance core components, the unit keeps low vibration and noise in long-hour running, perfectly suited for continuous large-scale industrial production.

Application Scenarios

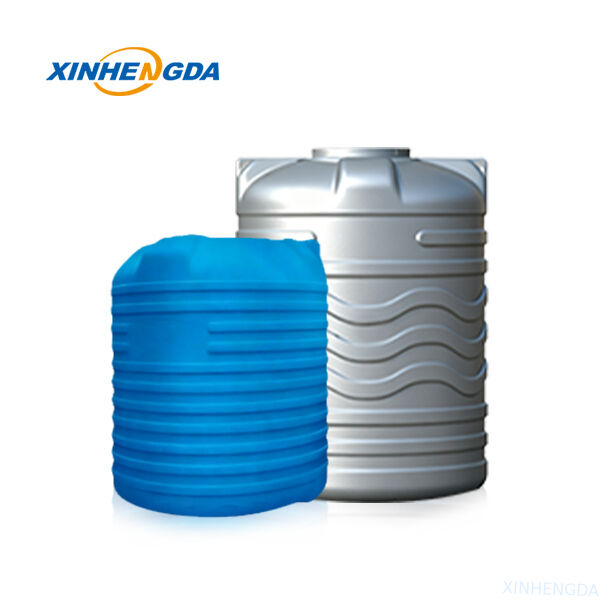

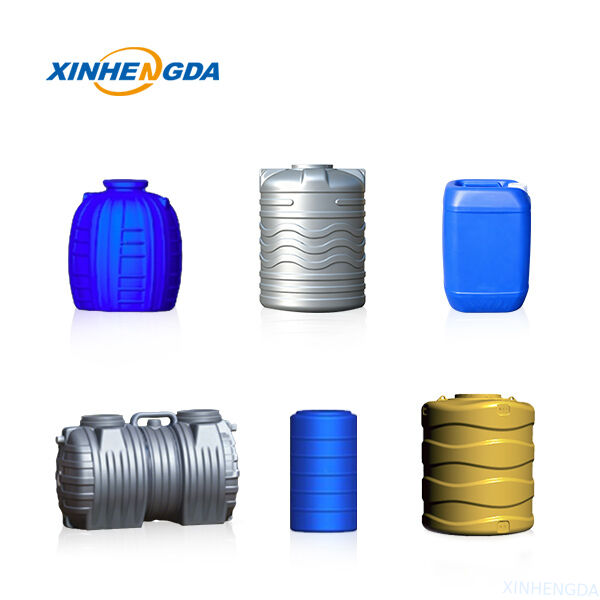

This 10000L high-output blow molding equipment makes 500L–10000L plastic water tanks and industrial containers. It also processes pallets, eco bins, guardrail separators, septic tanks and other large hollow plastic products with great versatility.

Conforming to international quality standards, it is exported worldwide. High efficiency, stable running and low power use make it a favored option for mass production of hollow plastic items across the industry.
