Detail Information

Automation:	Automatic	Packing:	Wooden
Material Source:	LDPE, HDPE, PP	Layer:	One
Useful:	Plastic Blow Molding Machine	Surfacefinish:	Smooth Or Textured
Control System:	WiseTech PLC	Rawmaterial:	PP PE
Highlight:	10000L water tank accumulator , blow molder with co-extrusion structure , extrusion blow molding machine with warranty

Product Description

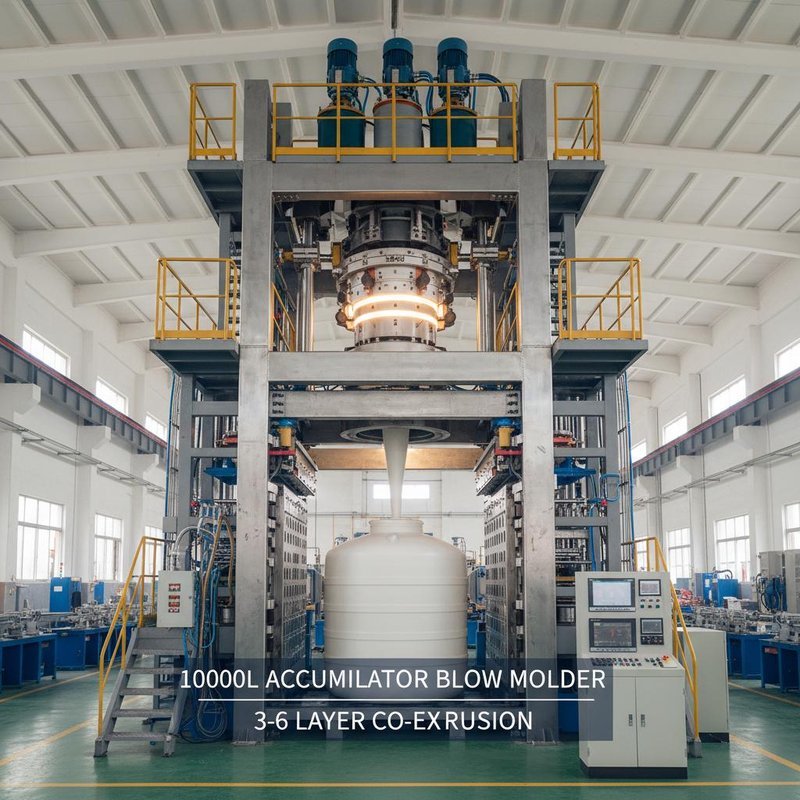

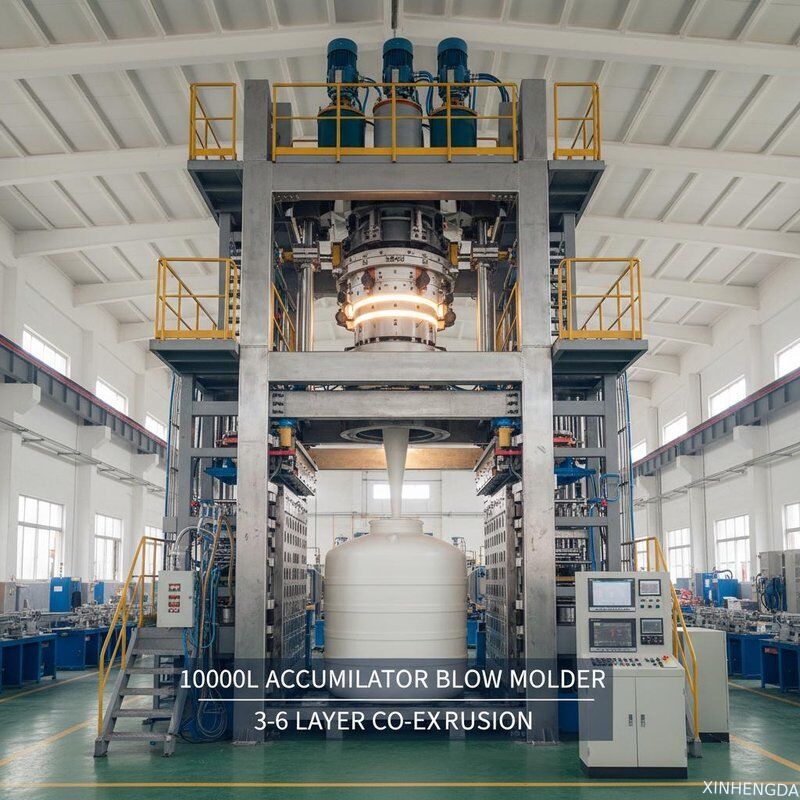

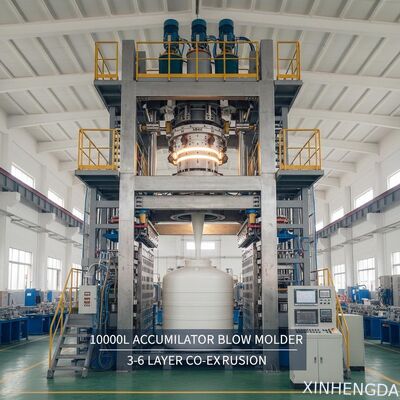

10000L Water Tank Accumulator Blow Molder with 3~6 Layer Co-extrusion Structure

Product Introduction

The 10000L water tank blow molding machine is high-efficiency custom industrial equipment. It isindependently designed and manufactured by a professional manufacturer located in Weifang City, ShandongProvince, China. Our factory specializes in the production of plastic blow molding equipment, plastic drums,plastic cans, water tanks and similar products. Please feel free to consult me for any machinery-relatedquestions

Tabular Parameters

Parameter	Details
Processable Plastic Raw Materials	HDPE, PE
Mould Holding Power	2000 KN
Automatic Operation Type	Automatic
Voltage	380-415V
Core Product Advantages	Multi-layer Composite Structural Layout
Warranty	1 Year
Quantity of Extrusion Screws	7
Core Components	PLC Control Module, Frequency Changer, Bearing Protection Cover, Drive Motor, Transmission Gear, HydraulicFeed Pump
Full-process Video-based Quality Supervision	Provided
Machinery Test Report	Supplied As Standard Configuration
Manufacturing Production Locale	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Overall Equipment Outline Dimension Specs	1158 m
Screw L/D Ratio	30
Screw Diameter	120 mm
Extruder Screw Rated Heating Capacity	80 KW
Rated Power of Extrusion Drive Motor	90 KW
Effective Length of Mold Clamping Station	1900 mm
Mold Station Size	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Rated Heating Capacity of Extrusion Die Head	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Goods Packing Execution Standard	Customized per buyer's specific demands (such as container packing and other options)
Port of Dispatch	QINGDAO
Yearly Available Production Output	35 Units

Product Core Functions

Qur newly upgraded 10000L large-scale blow molding equipment centers on standardized fabrication of extra-large plastic water tanks and industrial hollow vessels. Operators can fine-tune its wall thickness and finishedproduct weight precisely between 1mm and 1omm. Featuring superior forming precision, consistent wallthickness and reliable anti-distortion capability, it fulfills bespoke bulk orders of large plastic containers fordomestic and industrial applications.

Product Competitive Advantages

Reduced Manpower Expenditure

Benefiting from high automated design, this assembly line drastically cuts manual dependence. Merely two seasoned technicians are capable of completing full running tasks, which greatly curbs enterprises’ long-run labor spending and daily administrative overhead.

All-round Technical Training Support

Buyers get two weeks of free on-site skill coaching covering equipment manipulation, parameter calibration, daily upkeep and malfunction diagnosis. Your workforce can rapidly master operational proficiency and kick off official production in a short period.

Wide Raw Material Adaptability

Refined extrusion and forming structural design allows the machine to process HDPE, PE and other mainstream plastic feedstocks flawlessly. It flexibly matches varied raw material specs and customized manufacturing needs from multiple industrial fields.

Strict Whole-process QC Control

Real-time video tracking covers every production link for continuous supervision. Complete performance test slips and quality credentials will be furnished before dispatch to ensure every finished machine meets international export specifications.

Top-tier Brand Original Key Parts

Vital fittings including PLC control system, frequency converter, drive motor and hydraulic pump are sourced from established famous manufacturers. These components feature stable running state, low malfunction rate and prolonged service cycle, helping customers slash regular maintenance spending.

Rich Industrial Production Know-how

We own 30 years of specialized experience in developing and fabricating large blow molding equipment. Continuous structural and technical iteration stabilizes machine performance and product quality, serving plastic processing manufacturers across the globe.

Product Distinctive Features

Intelligent Fully Automated Running
It is equipped with an all-in-one PLC smart control platform supporting one-touch startup; procedures from extrusion, mold clamping, blow forming, cooling to product ejection run automatically. The machine boasts steady running status and outstanding production efficiency.

Multi-layer Co-extrusion Blow Forming Craft
The equipment enables simultaneous multi-layer blow molding, effectively upgrading large-sized water tanks in compression resistance, anticorrosion property and tightness, thus lifting the finished goods’ market competitive edge.

Adjustable Customized Parameter Setup
Operators can flexibly modify finished product weight, wall thickness and forming indexes, supporting tailor-made fabrication of large containers in diverse sizes to satisfy differentiated market requirements.

High-Grade Core Setup with Reliable Stability
Fitted with high-output and high-accuracy core spare parts, the unit features low vibration and low noise during long-term continuous operation, perfectly fitting uninterrupted industrial mass production.

Application Scenarios

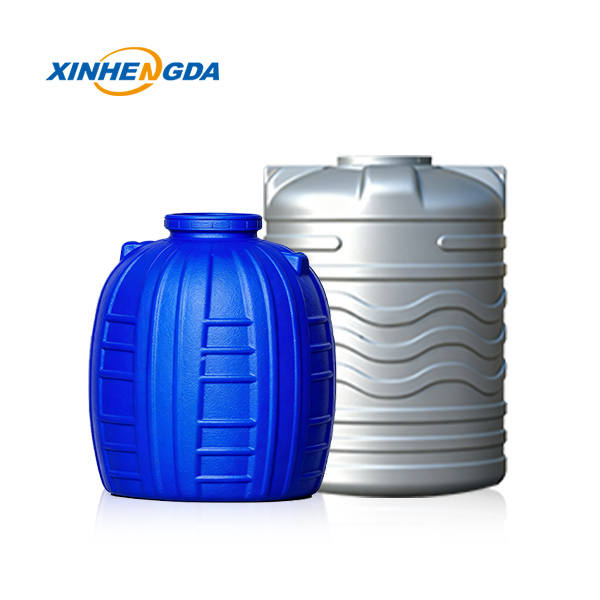

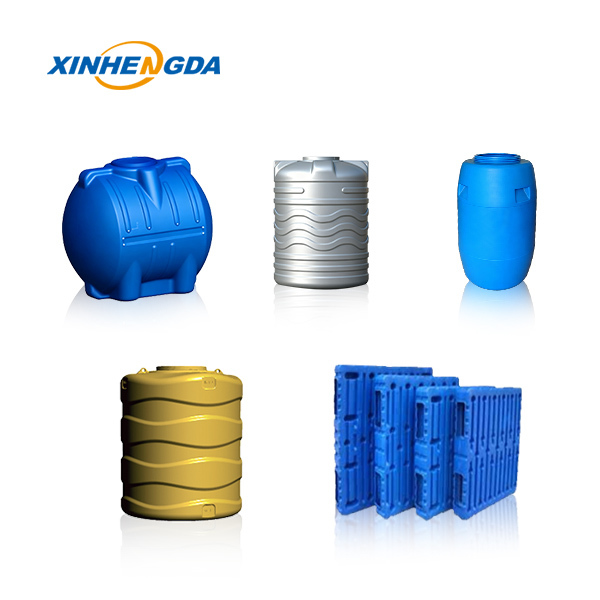

This high-volume 10000L blow molding unit is primarily engineered to manufacture large plastic water tanksand industrial containers with capacities spanning 50oL up to 1000oL. Beyond tank items, the machine iscapable of efficient fabrication of plastic pallets, eco-friendly garbage bins, highway guardrail separators,plastic septic tanks and various other bulky hollow plastic goods, delivering extensive production versatility.

The machine complies with global standard quality verification norms and gets exported to Southeast Asia,South America, Europe and numerous overseas territories. Thanks to its efficient output, reliable operation andlow power usage, it gains favorable recognition from plastic processing factories, standing as the idealproduction gear for mass hollow plastic manufacturing workshops.

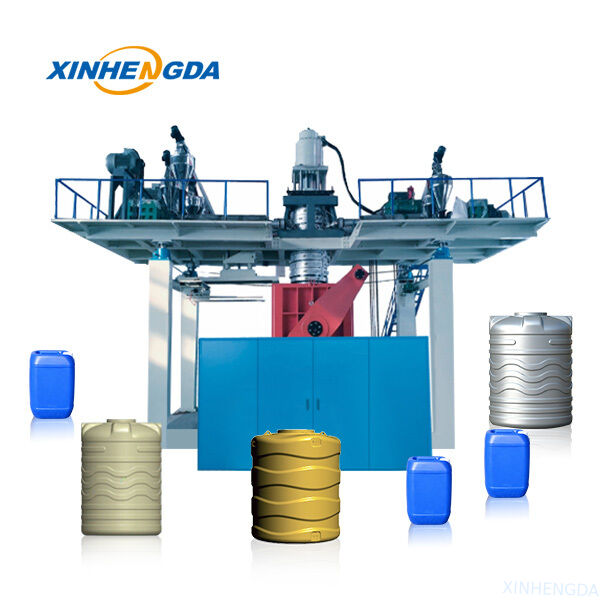

10000L Water Tank Accumulator Blow Molder with 3~6 Layer Co-extrusion Structure 0

10000L Water Tank Accumulator Blow Molder with 3~6 Layer Co-extrusion Structure 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	10000L Blowing Mould Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
