Detail Information

Controlsystem:	PLC With Touch Screen	Model No:	ABLB65I
Head:	Four Heads	Plc Brand:	Mitsubishi
Bottle Weight:	20~200g	Layer Design:	Double Layer Design
Prodcut Capacity:	Customize Size	Mould:	One Cavity Or Two Cavity
Pneumatic:	Festo From Germany Or SMC From Japan	Marketing Type:	Hot Sale Product
Heating Power:	2.8kw	Website:	Www.sky-machine.com
Highlight:	10000L water tank blow molding machine , 3-6 layer co-extrusion accumulator machine , large capacity extrusion blow molding machine

Product Description

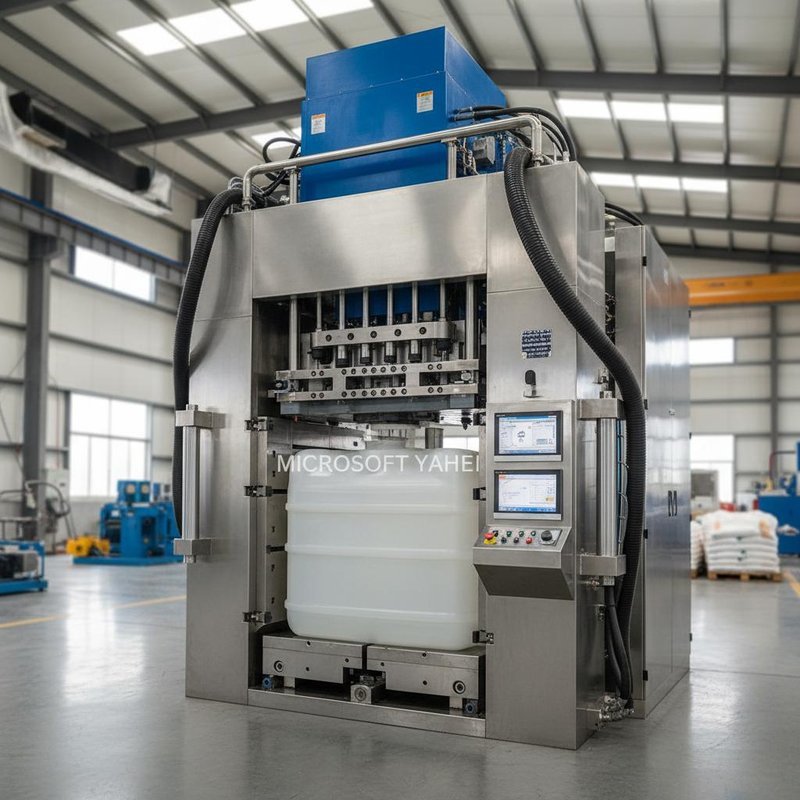

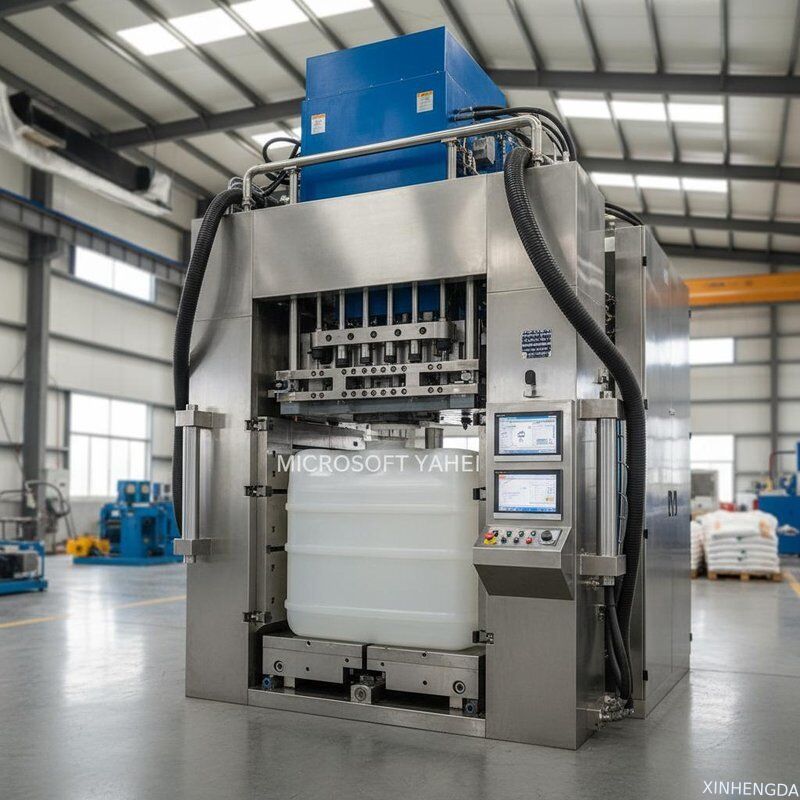

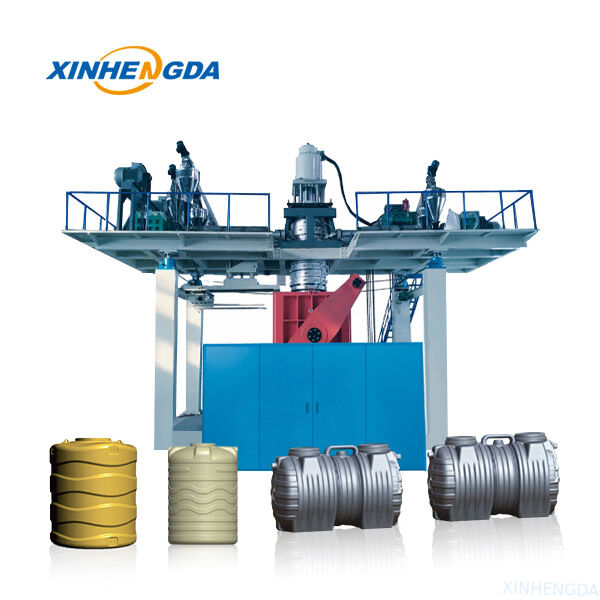

10000L Capacity 3-6 Layer Co-extrusion Accumulator-Based Water Tank Blow Molding Machine

Product Introduction

Tailored for industrial application, this 10000L water tank blow molding equipment features outstandingproduction efficiency. Developed and produced independently by an experienced Shandong manufacturerspecializing in large-scale plastic blow molding with three decades of industry know-how, the machine isrefined for bulk fabrication of big-sized plastic water tanks and hollow packaging vessels. It well resolvesprevalent industrial troubles including insufficient production yield and uneven forming precision seen inoversized tank processing across the sector.

Tabular Parameters

Parameter	Details
Applicable Processable Plastic Materials	HDPE, PE
Mold Clamping Tonnage	2000 KN
Automatic Operation Type	Automatic
Voltage	380-415V
Key Selling Point	Multilayer
Warranty	1 Year
No. of Screw	7
Core Components	Hydraulic Pump PLC Control System, Frequency Converter, Bearing Protective Cover, Industrial Motor, Transmission Gear,
Video Quality Inspection	Provided
Mechanical Equipment Inspection Report	Provided
Production Origin	Shandong, China
Power	520 kW
Equipment Weight	50 Ton
Equipment Dimension	1158 m
Screw L/D Ratio	30
Extruder Screw Outer Diameter	120 mm
Screw Heating Power	80 KW
Extruder Motor Power	90 KW
Mold Station Length	1900 mm
Mold Mounting Station Dimension	2100 mm
Air Pressure	0.65 MPa
Air Consumption	3 m³/min
Extrusion Die Head Heating Rated Power	100 KW
Automatic Function	Yes
Single Unit Weight	50 TON
Packaging Method	According to customer requirements (container, etc.)
Port of Dispatch	QINGDAO
Annual Supply Capacity	35 Units

Product Core Functions

This revamped 1000oL big-volume blow molding equipment centers on the standardized manufacturing ofextra-large plastic water tanks as well as industrial hollow vessels. Users are allowed to accurately adjust itsproduct wall thickness alongside component weight ranging from 1 mm up to 10 mm. Boasting superiorforming precision, consistent wall dimension and great resistance to deformation, the unit satisfies bespokebulk orders for big plastic vessels used in domestic and industrial fields.

Product Competitive Advantages

Manpower Expense Cutbacks

Owing to sophisticated automated setup, the complete production setup minimizes human operation demand. Only a pair of seasoned workers can take charge of all operational workflows, effectively reducing producers’ long-term labour outlay and daily production administrative costs.

All-round Technical Training Support

We provide free two-week on-location skill coaching involving equipment operation setup, parameter modification, regular upkeep as well as fault diagnosis. Such systematic tutoring enables your workers to master relevant know-how rapidly and launch official production promptly.

Wide Raw Material Adaptability

Refined extruding and forming structural design enables the equipment to run smoothly on HDPE, PE plus other prevailing plastic feedstocks. It flexibly fits varied raw material specs and personalized production demands from multiple industry sectors.

Strict Full-process Quality Control

Real-time video tracking records and supervises every production step throughout fabrication. Prior to cargo delivery, complete performance inspection documents and quality certification files will be provided to ensure each machine meets global export standard specifications.

High-grade Brand Original Key Parts

Critical assemblies such as PLC control unit, frequency converter, drive motor and hydraulic pump are purchased from well-known branded suppliers. These accessories feature consistent running stability, fewer breakdown risks and prolonged service cycle, cutting users’ subsequent maintenance outlay effectively.

Rich Industry Manufacturing Know-how

Our firm boasts three decades of focused research development and fabrication experience for large-scale blow molding gear. Continuous structural improvement and technical iteration secure stable running performance and dependable product quality to serve plastic processing factories globally.

Product Distinctive Features

Fully Automated Smart Control

Outfitted with integrated PLC intelligent control unit, the machine realizes one-touch startup; extrusion, mold clamping, blow forming, cooling and ejection procedures run automatically in sequence, ensuring steady running and excellent manufacturing efficiency.

Multilayer Co-extrusion Blow Molding Craft

It is compatible with synchronous multi-layer blow forming technique, effectively boosting large water tanks’ compression tolerance, anti-corrosion property and sealing capability, hence lifting the finished goods’ market competitive edge.

Adjustable Customized Parameter Setting

Operators can flexibly modify finished product weight, wall thickness and forming data, supporting tailor-made production of large-size containers in diverse specs to satisfy differentiated market requirements.

Top-tier Core Setup for Superior Operational Stability

Fitted with high-output and precision critical spare parts, the equipment sustains long-period continuous operation with slight vibration and low noise, perfectly matching uninterrupted industrial batch production.

Application Scenarios

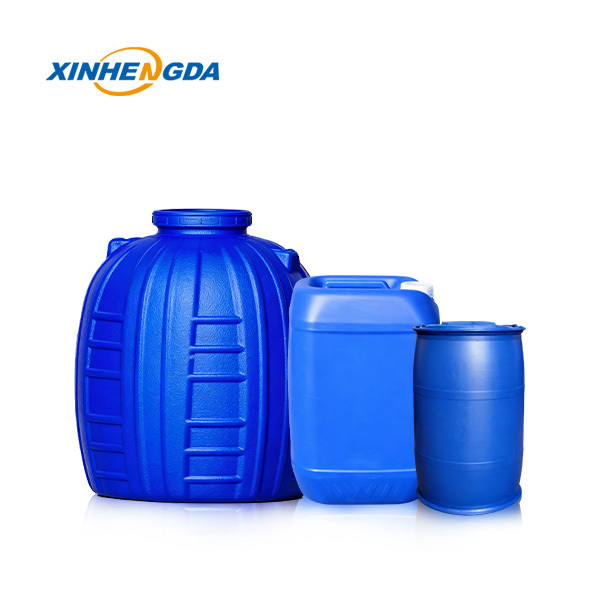

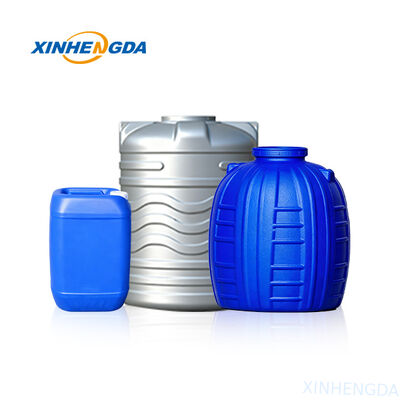

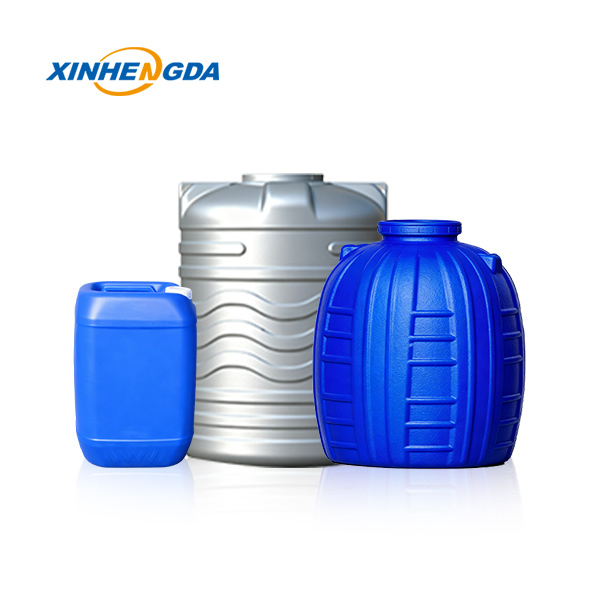

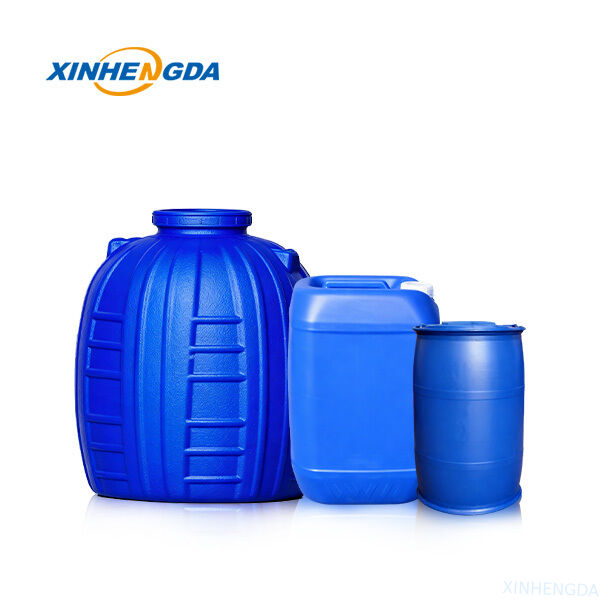

This high-volume 1000oL blow molding unit is primarily used for manufacturing large plastic water tanks andindustrial vessels with capacities ranging from 50oL up to 1000oL. Apart from tank manufacturing, the unit canefficiently fabricate plastic pallets, eco-friendly waste bins, highway isolation baffles, plastic septic tanks andassorted oversized hollow plastic goods, featuring broad production adaptability.

The machine conforms to international quality testing specifications, with core sales territories indudingSoutheast Asia, South America, Europe and other global areas. Favored by downstream plastic fabricators forits high productivity, stable operation and low power consumption, it stands as the ideal processing equipmentfor mass-production hollow plastic assembly lines.

10000L Capacity 3-6 Layer Co-extrusion Accumulator-Based Water Tank Blow Molding Machine 0

10000L Capacity 3-6 Layer Co-extrusion Accumulator-Based Water Tank Blow Molding Machine 1

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	10000L Blowing Mould Machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+

10000L Capacity 3-6 Layer Co-extrusion Accumulator-Based Water Tank Blow Molding Machine
