Detail Information

Maxmoldsize:	Customizable	Molding Method:	Extrusion Blow Molding
Productname:	Water Tank Blow Molding Machine	Machinetype:	Blow Molding Machine
Automatic:	Yes	Layer:	Customizable
Dimensions:	Length 6000mm X Width 2500mm X Height 3000mm	Application:	Water Tank Manufacturing
Highlight:	chemical drum blow molding machine , plastic machinery manufacturing equipment , water tank blow molding machine with warranty

Product Description

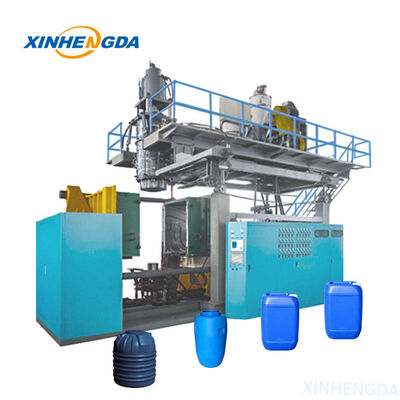

XHD1000L chemical drum blow molding machine Plastic Machinery Manufacturing

Product Introduction

The XHD100oL Fully Automatic Plastic Blow Molding Machine comes in two versions: the single-screw type(HD1000FZ single screw) and the twin-screw type (XHD1000FZ double screw). This machine is speciallydeveloped for the float production line, mainly using HDPE and HMW-HDPE as raw materials. It realizes fullyautomatic operation, higher output and more efficient material utilization. Equipped with CE and SGscertifications, we provide free on-site installation, commissioning and operational training, as well as a 12-monthcomplete warranty covering the whole machine and supporting molds.

Tabular Parameters

1. Working Conditions

Working Conditions	Specific Requirements
Operating Environment	Indoor workshop with favorable ventilation; overhead crane height 9m; concrete foundation of workshop> 10cm; keep away from magnetic fields; relative humidity s90%; ambient temperature 0-45°C
Power Supply	3-phase 4-wire 50Hz, 380V-415V
Cooling Water	Cooling water temperature ≤20℃; water pressure ≥0.3MPa; water flow rate 50T/H
Air Source	Air supply pressure 0.8MPa; air pressure required for product molding 0.2–0.4MPa
Raw Material	High-density polyethylene HDPE/HMW-HDPE

2. Equipment Overview

No.	Item	Single Screw Configuration	Double Screw Configuration
1	Extruder	140MM, L/D ratio 30:1	120/120MM, L/D ratio 30:1
2	Machine Die Head	35L 26KGS, high-efficiency ceramic heating ring	35L 26KGS, high-efficiency ceramic heating ring
3	Clamping Unit	3-piece type clamping unit with 2 pull bars, clamping force 1000KN	3-section clamping structure with 2 tension rods, clamping force 1000KN
4	Machine Frame	Elevating machine frame	Elevating machine frame
5	Material Loader	Spring-type feeding machine (2.2KW)	Spring-type feeding machine (2.2KW)
6	Blow Seat	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)
7	Robot	Adjustable 4-function robot (forward/backward movement, cooling, etc.)	Adjustable four-function manipulator (forward/backward travel, cooling, etc.)
8	Hydraulic System	Main hydraulic station with Taiwan Delta servo control + small hydraulic station for wall thickness control	Taiwan Delta servo-controlled main hydraulic station + wall thickness control small hydraulic station

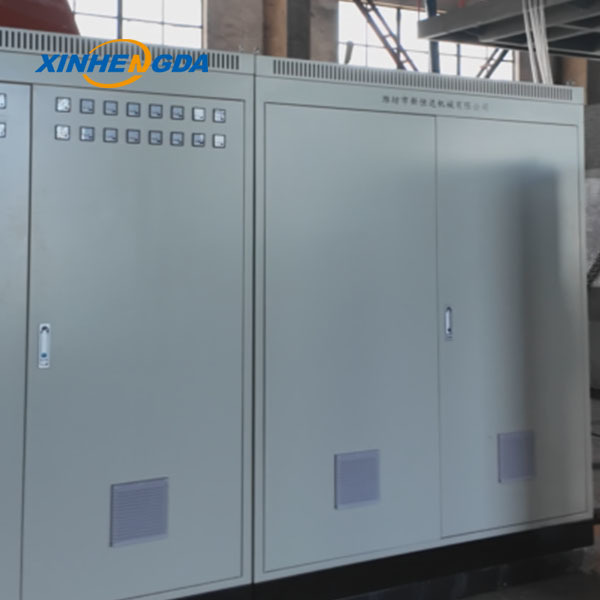

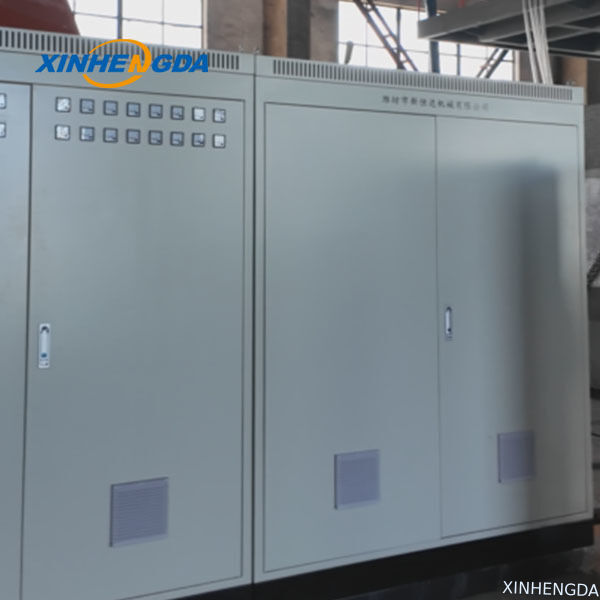

9	Electrical System	Siemens PLC/Italy Gefran control system (optional)	Siemens PLC/Italy Gefran control system (optional)
10	Machine Power	Total power 252.375KW, average power 134KW	Total power 346KW, average power 176KW
11	Machine Dimension (L×W×H)	8×4×6.3M	8×4×6.3M
12	Machine Weight	25TON	30TON
13	Melting Capacity	280KGS	280KGS
14	Product Layers	1 layer	1 layer

3. Core Components Material & Configuration

Components	Material/Configuration
Screw/Barrel	38CrMoAl
Die Pin/Core Pin	45# steel
Accumulator	38CrMoAl & 45# steel (35L/26KGS)
Hydraulic Components	Taiwan Yuken pumps and valves
Pneumatic Components	STNC & AirTac pneumatic valves
Low-Voltage Apparatus	Siemens (contactors, circuit breakers, etc.)
Wall Thickness Control System	Japan MOOG 200-point axial wall thickness controller
Servo System	Delta servo motor, Italy PHASE servo control system, Japan Sumitomo servo oil pump

Product Core Functions

1.Material Processing: The IKV optimized screw provides high-efficiency plasticization and uniform mixing, with amelting capacity of 280KGS.
2.Molding Control: The MO0G 200-point wall thickness controller ensures stable and uniform product wallthickness, supporting a wide range of weight adjustment.
3.Automatic Operation: Finished products are automatically discharged by a robot arm; the 5-function blowhead completes air blowing, venting, sealing and other processes to achieve full-line automatic production.
4.Temperature Control: Adopting time-sharing and step-by-step heating, the die head and screw adoptindependent temperature control, which effectively reduces energy consumption.
5.Easy Maintenance: Independent pneumatic station and pipeline manifold design make inspection andoperation more convenient, with clean and orderly piping layout.

Product Competitive Advantages

1.Cost Efficiency: Cuts down raw material waste by 25%-35% in comparison with rotational moldingtanks; the variable frequency control system helps achieve substantial savings in overall powerconsumption.
2.Enhanced Productivity: Boasts higher production efficiency than rotational molding equipment; theentire production line needs only 3-4 operators to operate, and a single machine can be runindependently by just two female workers.
3.Optimal Product Quality. The finished products manufactured have far better impact resistance thanrotational molding tanks, along with outstanding wall thickness uniformity for all outputs.
4.Stable Component Setup: Utilizes high-quality components from renowned brands like Siemens,Delta and MOOG, ensuring excellent and dependable operational stability during the productionprocess.
5.Comprehensive After-sales Support: Provides free on-site installation and professional technicaltraining, a 12-month warranty period, as well as free replacement parts for fault diagnosis and regularmaintenance.

Product Distinctive Features

1.Structural Design: Elevated machine frame equipped with a multi-row screw hole backplate allows for easy mold replacement through hydraulic transmission (1600MM moving distance), rendering the equipment suitable for manufacturing various types of floats.

2.Precise Control: The Taiwan Delta servo hydraulic system offers quick response and pressure accumulation, reducing energy consumption by over 40%; PLC intelligent automatic temperature control is combined with a multilingual operation interface (customizable to the customer’s mother tongue).

3.Durable Material Selection: Core parts are made of high-quality materials such as 38CrMoAl and 45# steel; the unit is equipped with a cast steel elevator and Schneider solid-state relays (AC contactors are used in high-temperature working zones).

4.Safety & Operational Stability: Equipped with full-machine protective covers and safety railings; the cooling system adopts dual protection (barrel air cooling + feeding zone water cooling), ensuring stable operation in indoor environments with temperatures ranging from 0-45℃.

Application Scenarios

This machine is specially developed for float production, ideal for the mass production of HDPE floatingproducts such as marine buoys, vessel floats and water platform floating bodies. It is widely used in aquaculture,marine engineering, ship supporting facilities and other related industries.

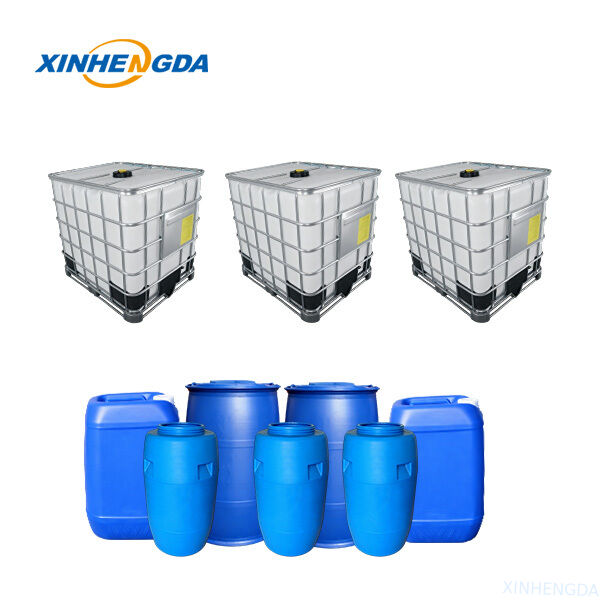

XHD1000L chemical drum blow molding machine Plastic Machinery Manufacturing 1

XHD1000L chemical drum blow molding machine Plastic Machinery Manufacturing 2

Tag:

Place of Origin:	Shibu Industrial Park Changyi City Shandong Province China
Brand Name:	XINHENGDA
Model Number:	Pallet machine

Minimum Order Quantity:	1
Price:	Contact me
Delivery Time:	Regular orders ship in 90 days; for customized products, please contact me for the timeline.
Payment Terms:	L/C,D/A,T/T,Western Union,D/P
Supply Ability:	90+
