Detail Information

Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump	Plastic Processed:	HDPE, PE, HDPE
Place Of Origin:	Shandong, China	Voltage:	380-415V
Dimension(lwh):	786.3	Clamping Force (kN):	1000
Plc Brand:	Siemens	Screw L/D Ratio:	30
Screw Diameter (mm):	100 Mm	Output (kg/h):	350 Kg/h
Automation:	Automatic	Screw Heating Power(kw):	60 KW
Extruder Motor Power(kw):	75 KW	Mold Platen Size(width)(mm):	1500 Mm
Mold Platen Size(height)(mm):	1700 Mm	Air Pressure(mpa):	0.65 MPa
Air Comsumption(m³/min):	2 M³/min	Die Head Heating Power(kw):	65 KW
Power (kw):	400	Weight (t):	40
Key Selling Points:	Multilayer	Warranty:	1 Year
Blow Moulding Type:	Extrusion Blow Moulding	Automatic:	Yes
After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support	Application:	Water Tank
Raw Material:	HDPE	Name:	Plastic Water Tank Blow Molding Machine
Weight:	44TON	Clamping Force:	1000KN
Power:	355KW	Condition:	New
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service	Applicable Industries:	Building Material Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food & Beverage Shops, Other
Local Service Location:	None	Showroom Location:	None
Accumulator Capacity(L):	50 L	Port:	QINGDAO

Product Description

Weifang Sehenda Blow Molding Machine

5000L Plastic water tank blow molding Machine

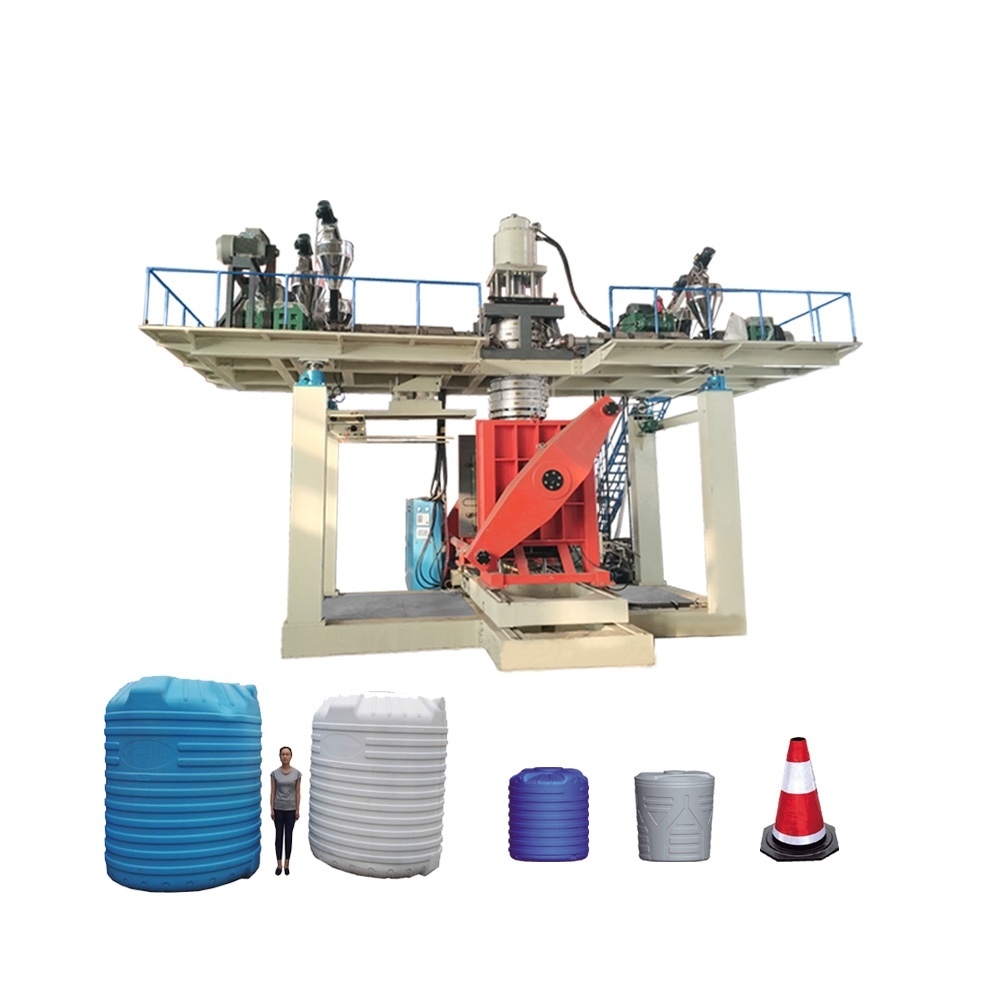

plastic drum blow molding machine pe large blow molding machine 0

Application:

This Blow Molding Machine can produce plastic blow molding products such as wter tanlk,pallets, fuel tank of vehicle, chemical container etc. The maximum container volume is 10000L.

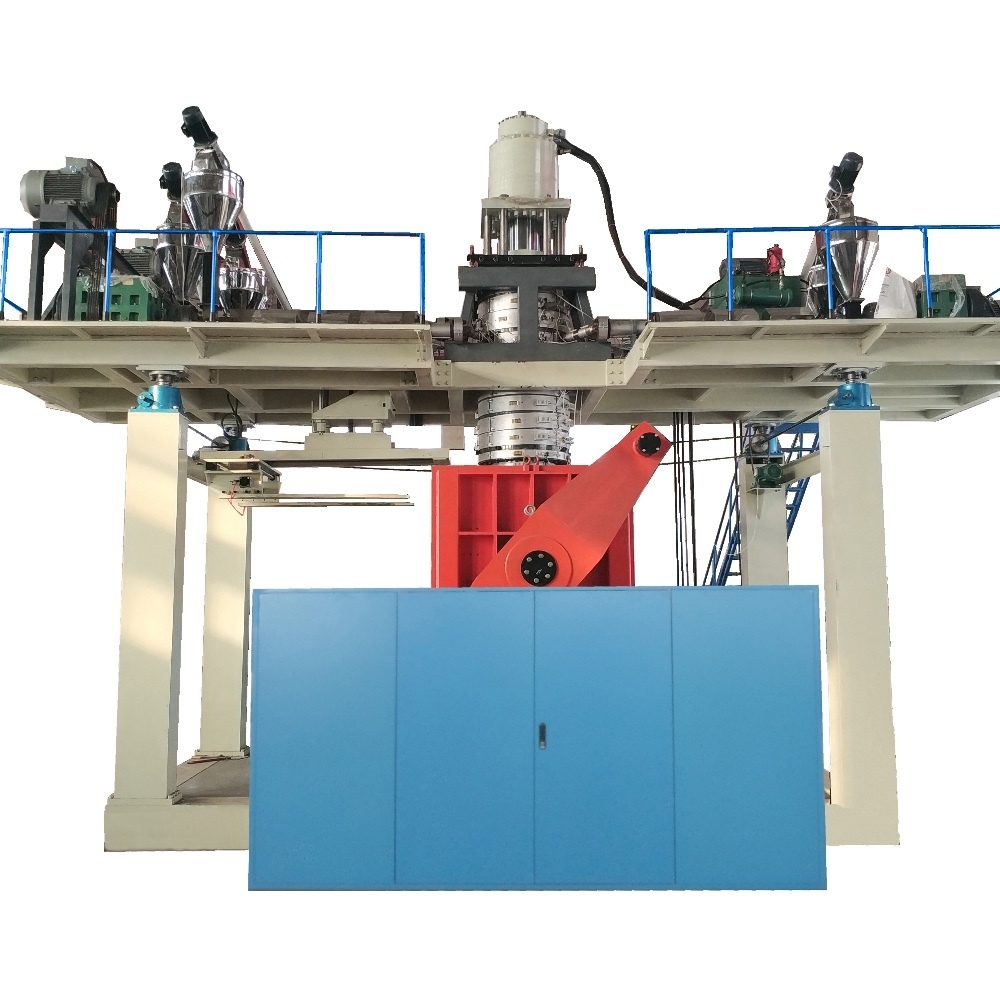

plastic drum blow molding machine pe large blow molding machine 1

Machine Features:

-The screw adopts IKV design, with high potency melt to make sure the material well mixed.

-Adopt frequency control of motor system to reduce the power consumption.

-Adopt Parison thickness controller Moog 100 points, to make thickness even and adjust the tank weight in big span.

-Fully automatic, easy to operate, two women can operate machine, whole production line need 3 or 4 person only.

-High output versus Roto molding machine

-Save raw material 25% - 35% versus Roto tanks.

-Perfect impact resistance versus Roto tanks.

-Multi layers co-extrusion.

-The mechanical arm can take out the product automatically.

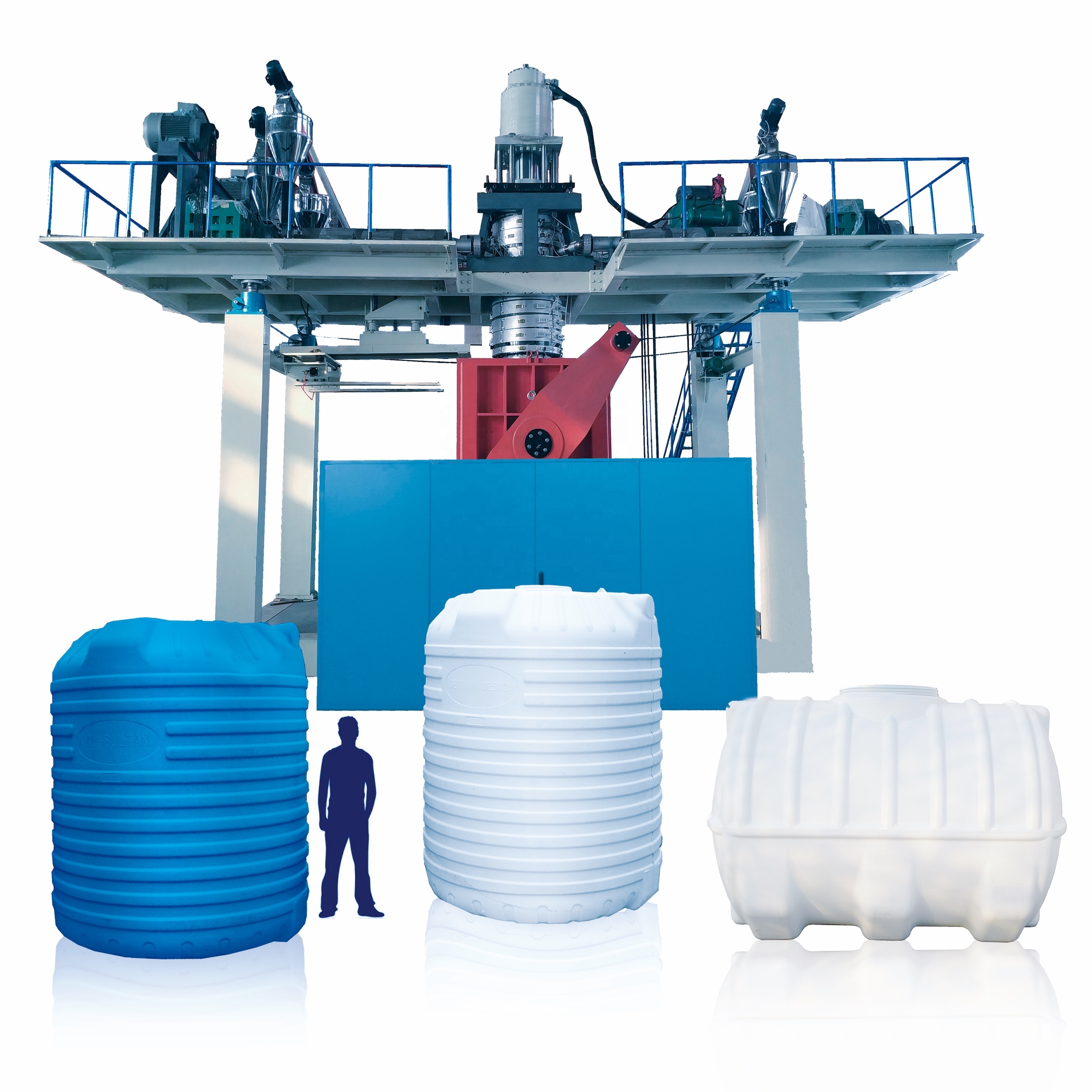

plastic drum blow molding machine pe large blow molding machine 2

plastic drum blow molding machine pe large blow molding machine 3

plastic drum blow molding machine pe large blow molding machine 5

Application	Water tank, septic tank, plastic pallet, chemical tank, road barrier, frp vessel, IBC, L-ring drum, floating dock, fish tank and other customer-made products
Capacity	Tanks and containers from 200 to 5,000 liter, pallet up to 1600*1800 mm
Layers	1 layer, 2 layer, 3 layer, 4 layer
Material	HDPE, HMW-HDPE, Recycle material
Features	Tanks produced never leakage Save cost of production High productivity automatically

Certification:	CE and ISO9001:2008

Price:	CN¥1,683,024-2,103,780/sets
Packaging Details:	standard package
Supply Ability:	30 Set/Sets per Year
