Detail Information

Machinetype:	Blow Molding Machine	Materialcompatibility:	HDPE, LDPE, PP
Layer:	3	Condition:	New
Application:	Water Tank Manufacturing	Productname:	Water Tank Blow Molding Machine
Automation:	Automatic	Production Speed:	Adjustable
Highlight:	PE blow molding machine 1000L , corrosion resistant water tank machine , water storage tank blow molding

Product Description

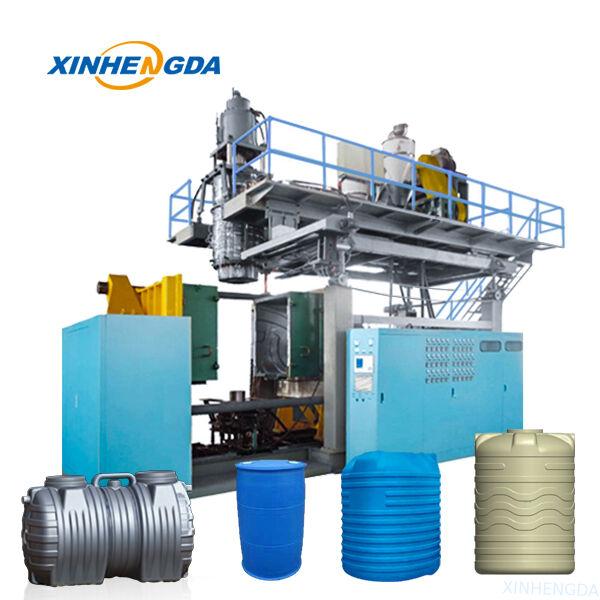

Corrosion Resistant PE Blow Molding Machine For 1000L Water Storage Tanks

Product Introduction

Xinhengda custom water tank blow molding machine utilizes extrusion blow molding technique, equipped with premium accumulator, MOOG parison thickness controller and servo hydraulic system. It realizes 1 to 5-layer co-extrusion and automates production of plastic water tanks covering 20L to 10000L.
Outfitted with PLC and HMI, the unit adopts robotic arms for automatic part handling and works well with HDPE materials. Balancing high throughput and low power consumption, this machine finds broad applications in household water storage, industrial auxiliary equipment and new energy sectors.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1.Accurate Extrusion & Parison Thickness Management

Fitted with FIFO accumulator and MOOG thickness regulating unit, the machine enables delicate adjustment of parison dimension. It keeps even wall distribution on finished water tanks, strengthens structural rigidity and prolongs product service life.

2.Fast Mold Movement & Stable Clamping

Linear guide rails and electronic ruler stroke positioning support mold movement speed up to 600mm/s. Adequate clamping force is supplied to sustain consistent forming accuracy and dependable running performance.

3.Full Automatic Production Workflow

A robotic handler takes finished products automatically, cutting manual operations drastically. It boosts overall throughput and helps enterprises save labor expenditure.

4.Servo Hydraulic Power Saving Design

Adopting servo hydraulic control, the equipment reduces power consumption by 40% versus conventional hydraulic setups, lowering long-term operational costs.

5.Multi-Layer Coextrusion Forming Capability

It supports 1-layer to 5-layer co-extrusion, capable of manufacturing functional composite water tanks to satisfy special requirements like UV resistance and excellent barrier performance.

6.Smart Control & Real-Time Status Tracking

PLC system paired with user-friendly HMI shows live running data, production parameters and fault reminders. The design simplifies daily operation and equipment maintenance.

Product Competitive Advantages

1.Superior Cost Performance

Compared with enamel liner manufacturing lines, hollow plastic liners made by this machine cut raw material spending and raise forming speed to reduce overall manufacturing outlay. Plastic liners outperform stainless steel counterparts in heat preservation, lowering energy expenses in the end-use phase.

2.Reliable Product Quality

Precise wall thickness control delivers seamless one-piece liners with excellent sealing, corrosion resistance and anti-ageing properties to extend service life. Brand-name core components maintain stable machine running and effectively lower reject rates.

3.Simple Operation & Servicing

The fully automatic control system works with a user-friendly HMI for quick operator training. Thoughtful machine layout simplifies maintenance work, and responsive after-sales service helps enterprises cut long-run operation and upkeep costs.

4.Flexible Customization Options

Custom machine specifications are available upon client requests. The unit can fabricate inner tanks from 120L to 1500L to accommodate unique production demands from various solar water heater manufacturers.

Product Distinctive Features

1.High Throughput & Energy Saving

The servo hydraulic unit delivers remarkable power-saving results. Multi-layer co-extrusion technology lifts raw material utilization, while automated production workflows greatly slash labor demands and time investment.

2.Stable & Dependable Operation

High-grade die steel including 38CrMoAlA and precision-machined parts are adopted. The machine runs steadily with low malfunction risks and enjoys an extended service cycle.

3.Superior Forming Accuracy

MOOG parison thickness controller and electronic ruler stroke tuning ensure uniform wall thickness and consistent dimensional precision for tanks, elevating the overall quality of finished goods.

4.Strong Production Flexibility

It supports interchangeable molds of different sizes to manufacture water tanks with various volumes. Compatible with HDPE and other plastic materials, the equipment meets diversified market demands.

5.User-Friendly Operation

The HMI features a clean and straightforward layout. Simplified fault diagnosis and parameter modification reduce skill barriers for operators and cut training expenditure.

Application Scenarios

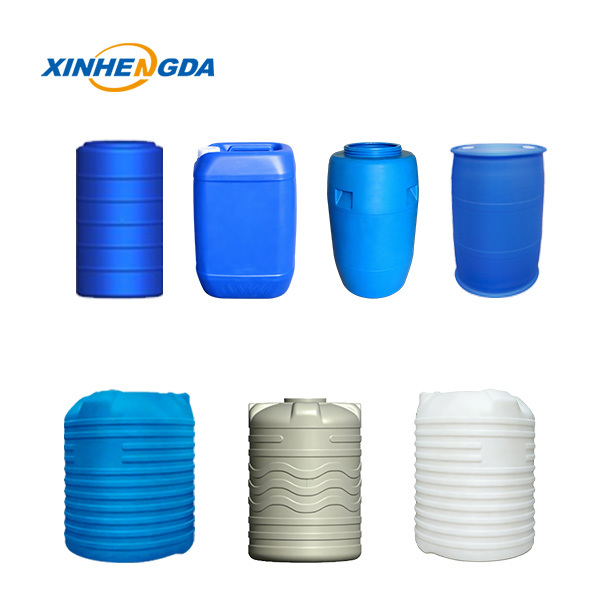

1.Domestic Water Storage Sector

This machine is developed to manufacture compact household water containers and secondary water supply tanks. It addresses daily water storage requirements and fits residential households, apartment compounds and other living-area applications.

2.Industrial Auxiliary Sector

It produces chemical storage vessels, waste liquid holding tanks and industrial circulating cooling water tanks, satisfying diverse liquid containment needs throughout factory production workflows.

3.Agricultural Irrigation Sector

The equipment makes farm irrigation tanks and aquaculture water storage containers. These products serve agricultural water-saving irrigation and livestock water reserve systems, offering solid support for farming activities.

4.New Energy Sector

It is well suited to produce solar water heater liners and heat pump water tanks. Multi-layer co-extrusion technology effectively enhances the finished tanks’ heat retention and corrosion resistance.

5.Municipal & Construction Sector

The unit manufactures water tanks for temporary municipal projects and construction site water storage. It can also produce auxiliary equipment such as fire water tanks for related engineering works.

Corrosion Resistant PE Blow Molding Machine For 1000L Water Storage Tanks
