Detail Information

Machinedimensions:	Varies By Model	Mold Type:	Extrusion Blow Molding
Average Power Consumption:	302kw	Production Speed:	Adjustable
Application:	Water Tank Manufacturing	Machinetype:	Blow Molding Machine
Materialcompatibility:	HDPE, LDPE, PP	Cooling System:	Water Cooling
Moldingcapacity:	Up To 2000 Liters	Condition:	New
Highlight:	Double Ring Drum Blow Molding Machine , High Efficiency Water Tank Blow Molding Machine , Corrosion Resistant Blow Molding Machine

Product Description

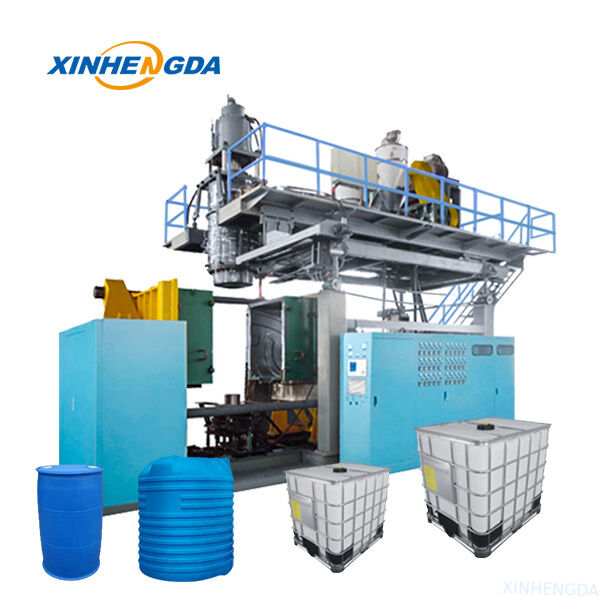

Double Ring Drum Blow Molding Machine High Efficiency Corrosion Resistant

Product Introduction

Xinhengda extrusion blow molding equipment is engineered for plastic water tank fabrication. It is fitted with premium FIFO accumulator head, MOOG parison thickness regulator and servo hydraulic setup. The unit enables 1 to 5 layer co-extrusion and automated manufacturing of plastic tanks covering 20L to 10000L. Controlled by PLC and HMI, it comes with robotic part retrieval and works well with HDPE resin. The equipment balances high throughput and low power consumption, serving civil water storage, industrial auxiliary and new energy industries.

Tabular Parameters

Key attributes

plastic processed

PE, HDPE

Clamping Force (kN)

800

automation

Automatic

voltage

380-415V

key selling points

Energy Saving

warranty

1 Year

plc brand

core components

PLC, Gearbox, Motor

machinery test report

Provided

video outgoing-inspection

Provided

output (kg/h)

240 kg/h

place of origin

Shandong, China

power (kw)

weight (t)

brand name

XINGHENGDA

dimension(l*w*h)

10*3*5

Screw L/D Ratio

screw diameter (mm)

110 mm

screw heating power(kw)

31.5 kW

extruder motor power(kw)

40 kW

mold platen size(width)(mm)

1350 mm

mold platen size(height)(mm)

1350 mm

air pressure(mpa)

0.8 MPa

air comsumption(m³/min)

0.2 m³/min

die head heating power(kw)

30 kW

Blow Moulding Type

Extrusion Blow Moulding

Automatic

Yes

After-sales Service Provided1

Field installation, commissioning and training

After-sales Service Provided2

Engineers available to service machinery overseas

Weight

25TON

Certification

CE and ISO9001:2008

Clamping Force

800KN

Power

229-292KW

Product Core Functions

1.Precision Parison Extrusion & Thickness Regulation: FIFO accumulator head pairs with MOOG thickness controller to fine tune parison dimension. It maintains consistent tank wall thickness and boosts structural strength and service life of final products.

2.Rapid Mold Movement & Reliable Clamping: Linear rail guidance plus electronic ruler positioning delivers mold opening speed up to 600mm/s. Adequate clamping force sustains stable forming and high dimensional precision.

3.Full Automatic Manufacturing Line: Integrated robotic pick-up unit cuts manual operations, lifts overall throughput and minimizes labor expenditure.

4.Power Efficient Servo Hydraulic Unit: Servo hydraulic technology achieves 40% energy reduction versus conventional hydraulic setups, cutting long-run operational expenses.

5.Multi-Layer Coextrusion Capability: Supports 1 to 5 layer coextrusion to manufacture functional composite water tanks with UV resistance and barrier properties for specialized applications.

6.Intelligent Control & Real-Time Status Tracking: PLC system together with user-friendly HMI monitors machine status, production data and fault alerts in real time, simplifying daily operation and routine maintenance.

Product Competitive Advantages

1.Economic Merits: Plastic hollow liners made by this equipment cut material expenses and boost forming efficiency versus enamel liner manufacturing systems, lowering total production expenditure. When compared to stainless steel alternatives, plastic liners deliver superior thermal insulation and consume less energy in practical applications.

2.Reliable Product Quality: Precision wall thickness control yields seamless one-piece liners that boast outstanding sealing, corrosion resistance and anti-aging traits for extended service cycles. Fitted with branded spare parts, the machine runs steadily and efficiently minimizes defective output.

3.Simplified Operation & Servicing: Full-auto control paired with intuitive HMI shortens operator learning curves. Optimized machine layout facilitates routine upkeep, and dedicated after-sales assistance helps enterprises slash maintenance overheads.

4.Customizable Solutions: Equipment configurations can be tailored to client specifications to fabricate inner tanks from 120L to 1500L, satisfying diverse demands from various solar water heater manufacturers.

Product Distinctive Features

1.Boosted Productivity & Energy Saving The servo hydraulic drive delivers outstanding energy efficiency to lower running expenses. Combined with multi-layer co-extrusion, it maximizes raw material usage. Automated workflows reduce manual work, saving both labor input and production cycle time.

2.Reliable Performance & Long Service Life Built with premium die steel (38GYMOALA) and precision machined parts, the machine runs steadily with few breakdowns. It maintains stable output and prolongs equipment lifespan, bringing better ROI for manufacturers.

3.High Molding Precision & Uniformity Fitted with MOOG wall thickness regulator and electronic ruler stroke tuning, the unit achieves precise tank dimensions. Even wall thickness across finished goods upgrades product quality and surface finish to satisfy global market requirements.

4.Strong Production Adaptability It supports interchangeable molds for tanks of different volumes and processes HDPE and other plastic resins. This flexible design enables manufacturers to respond quickly to changing and varied market orders.

5.User-Friendly Operation Layout The HMI adopts a neat logical layout for easy handling. Simplified fault detection and parameter setup reduce operators’ skill requirements. It cuts training expenditure and improves overall production efficiency.

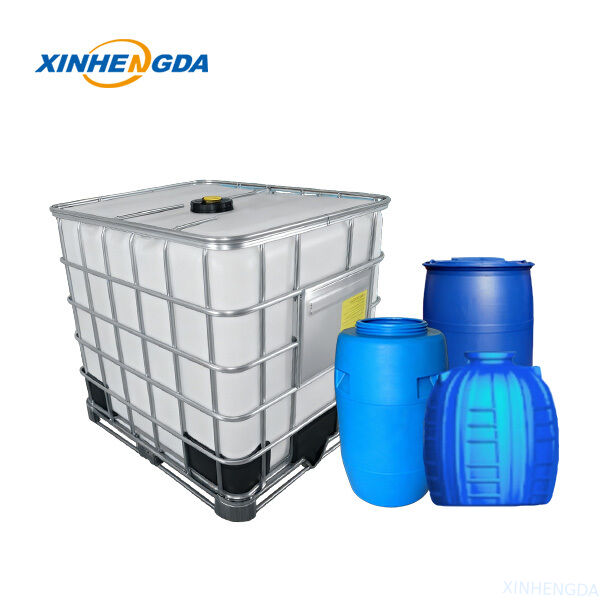

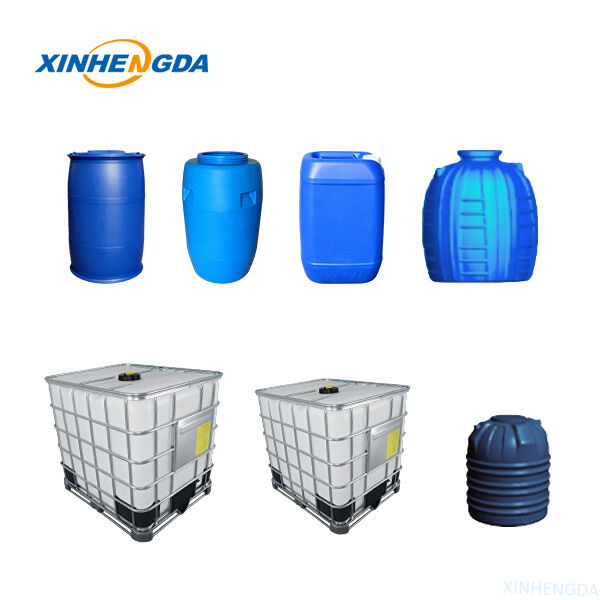

Application Scenarios

1.Civil Water Storage Sector: The machine fabricates compact household water tanks and secondary water supply containers to satisfy daily water storage demands. It fits residential houses, apartment compounds and other living-related settings.

2.Industrial Auxiliary Sector: It produces vessels for chemical raw materials, waste liquid containment and industrial cooling circulation. These tanks cover various liquid storage requirements throughout factory production workflows.

3.Agricultural Irrigation Sector: It manufactures farm irrigation tanks and breeding water reservoirs. These products serve agricultural water-saving irrigation and livestock water storage, providing solid backing for farming activities.

4.New Energy Sector: It is well-suited to produce solar water heater liners and heat pump storage tanks. Multi-layer co-extrusion technology enhances the thermal insulation and anti-corrosion performance of finished tanks.

5.Municipal & Construction Sector: The equipment makes tanks for temporary water storage in municipal works and construction sites. It also manufactures auxiliary facilities including fire protection water tanks for engineering projects.
