Detail Information

Applications:	Storage Tanks, Containers, Industrial Use	Design:	Custom Shapes And Sizes Available
Material:	High-density Polyethylene (HDPE)	Durability:	High Impact Resistance
Surfacefinish:	Smooth Or Textured	Productname:	Large-scale Plastic Blow
Coloroptions:	Customizable	Capacity:	Up To 2000 Liters
Productionmethod:	Blow Molding	Blow Molding Type:	Extrusion Blow Molding Machine
Highlight:	2000L extrusion blow molding machine , automatic blow molding machine 1-8 layers , energy saving extrusion molding machine

Product Description

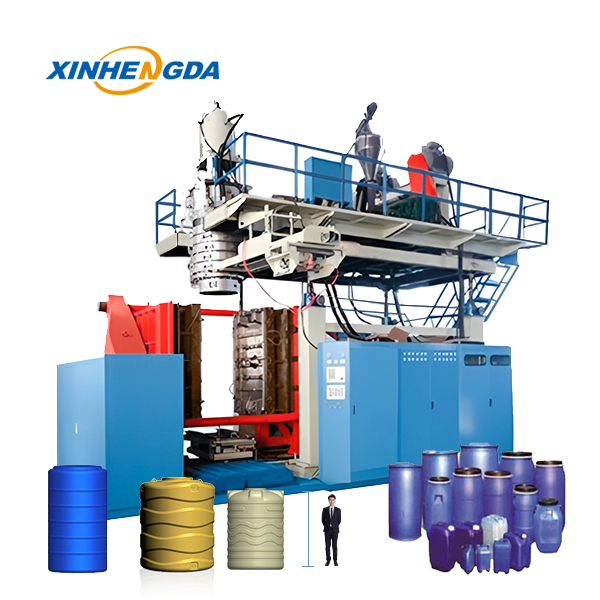

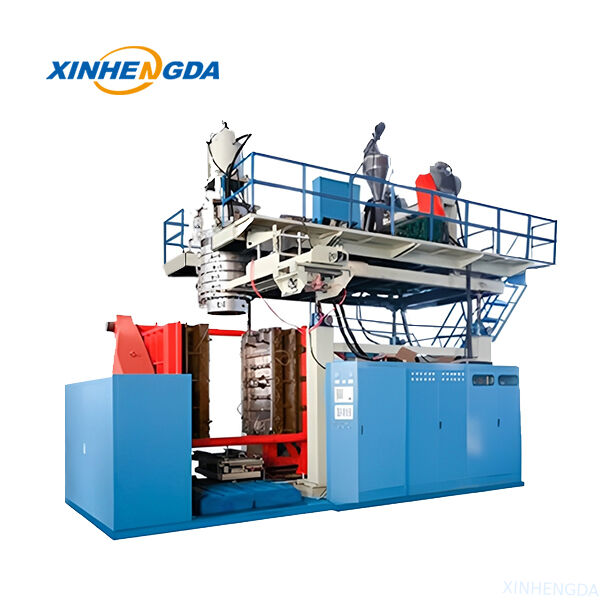

2000L Automatic Extrusion Blow Molding Machine 1-8 Layers Energy Saving

Product Introduction

Weifang Xinhengda Machine Co., Ltd. presents its 2000L 8-layer automatic plastic blow molding machine, tailor-made for manufacturing water tanks and liquid storage containers. It supports HDPE and HMW-HDPE raw materials and meets GB13508-92 and SN04499.2-95 industry standards.

itted with top-tier parts such as Japanese MOOG parison thickness controller, PLC control unit and Delta servo hydraulic system, the equipment realizes fully automatic operation from material feeding to finished part picking. Featuring stable running performance, high productivity and raw material savings, it is well suited for mass production of vertical and horizontal storage tanks ranging from 200L to 2000L.

Tabular Parameters

1. Output

CAPACITY	WEIGHT (KG)	OUTPUT (PCS/PER HOUR)
2000L	35-40	7-9
1500L	30-35	8-10
1000L	15-20	12-14
750L	14-15	13-15
500L	10-13	15-19

2. Working Condition

Working Condition	Details
Working Environment	Indoor, ventilated; away from magnetic field
Bridge crane height	≥8.5m
Plant foundation	Concrete ≥18cm
Humidity degree	≤90%
Indoor temperature	0-45℃
Power Source	3-phase 4 wires, 50Hz, 380V-415V
Cooling Water	Water temperature ≤20℃; Water pressure ≥0.3Mpa; Water consumption 50T/H
Air Source	Air source pressure 0.8Mpa; Forming air pressure 0.2-0.6mpa
Raw Material	HDPE/HMW-HDPE

3. Key Technical Specifications

Item	Details
Extruder	5 layers, 90/80/80/80/90MM; Screw L/D 30:1; Material 38CrMoAl
Machine Die Head	100L accumulator type; Heating power 80KW (5 layers)
Clamping Unit	3 pieces type with 2 pull bars; Clamping force 1250KN (Advice)/1900KN (Max)
Machine Dimension (L×W×H)	11×8×6.5M
Machine Weight	70TON
Total Power	441.5KW (5 layers)
Average Power Consumption	230KW
Melting Capacity	≈650 KGS/Hour
Product Range	500-2000L Water Tank

4. Configuration Brands

Category	Brand
LOW-VOLTAGE APPARATUS
PNEUMATIC COMPONENTS	SMTC & AIRTAC
HYDRAULIC COMPONENTS	YUKEN
SEAL	DICHTOMATIK GERMANY, TAIWAN DZ
SCREW MOTOR	HILECTRO SERVO MOTOR
FREQUENCY CONVERTERS	DELTA SERVO CONTROL
PLC & TOUCH SCREEN
WALL THICKNESS CONTROL SYSTEM	MOOG
SERVO OIL MOTOR	PHASE ITALY
SERVO OIL PUMP	SUMITOMO JAPAN

5. Machine & Mold Price (USD)

Name	Model	Price Note
Blow Molding Machine	2000L 5 Layers	Includes servo hydraulic system; Extruder motor can be upgraded to HAINTIAN servo for free
Steel Mold (Vertical Tank)	200L (2 cavity), 300L (2 cavity), 500L, 750L, 1000L, 1500L, 1800L, 2000L	To be quoted separately
Steel Mold (Horizontal Tank)	500L, 750L, 1000L, 1500L, 1800L, 2000L	To be quoted separately

Product Core Functions

1.Guaranteed Product Quality: A strict quality control procedure is carried out across the manufacturing stage. Every finished machine undergoes comprehensive multi-parameter testing to ensure flawless performance and operational stability.

2.Free Operator Training: Buyers may dispatch their staff to the supplier's plant for cost-free training, including equipment operation, routine upkeep and basic troubleshooting skills. Alternatively, supplier technicians can offer on-site instruction during the machine installation process.

3.On-Site Setup & Commissioning: With advance appointment from the purchaser, the supplier arranges professional engineers to deliver one-week on-site installation and commissioning support. Please note that the buyer is responsible for engineer visa fees, round-trip flight costs, accommodation and meal expenses.

4.Twelve-Month Warranty: Within 12 months following normal machine operation, we supply free replacement of defective parts and professional technical guidance for any quality-related failures caused by proper usage conditions.

5.Long-Life Core Components: Premium components sourced from world-renowned brands (such as MOOG, YUKEN, etc.) are installed on the machine. This guarantees extended operational life and stable, dependable performance over the long term.

Product Competitive Advantages

1.Energy & Raw Material Efficiency: It cuts raw material consumption by 25%-35% versus rotational molding tanks. The servo hydraulic system reduces power consumption by more than 40%, and optimized extruder design delivers an extra 10% energy saving.

2.High Production Capacity: Outperforming rotomolding equipment in throughput, this unit can produce 7 to 9 pieces of 2000L containers hourly.

3.Superior Product Performance: Finished tanks feature great impact resistance, consistent quality, and hold a full set of international certifications.

4.Simple Operation & Maintenance: The main machine only requires 2 operators, while the full production line needs 3–4 workers. Modular core assemblies greatly simplify maintenance work.

Product Distinctive Features

1.Reliable Quality Guarantee: Rigorous quality inspection standards are adopted. Every unit passes multi-parameter tests. Machines and molds come with a 12-month warranty post installation.

2.Wide Production Compatibility: Supports 1 to 4 layered finished goods, meeting manufacturing demands of 500L‑2000L vertical and horizontal storage tanks.

3.Premium Component Setup: Key spare parts adopt globally famous brands, including Italy Phase servo motors and Taiwan Yuken hydraulic valves to maintain steady equipment operation.

4.Comprehensive Technical Support: Free technical training is available. Professional engineers offer on-site installation, commissioning as well as operational and maintenance guidance.

Application Scenarios

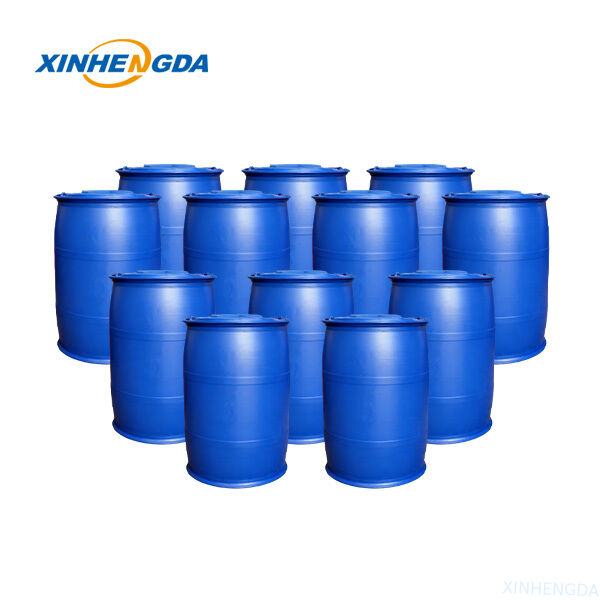

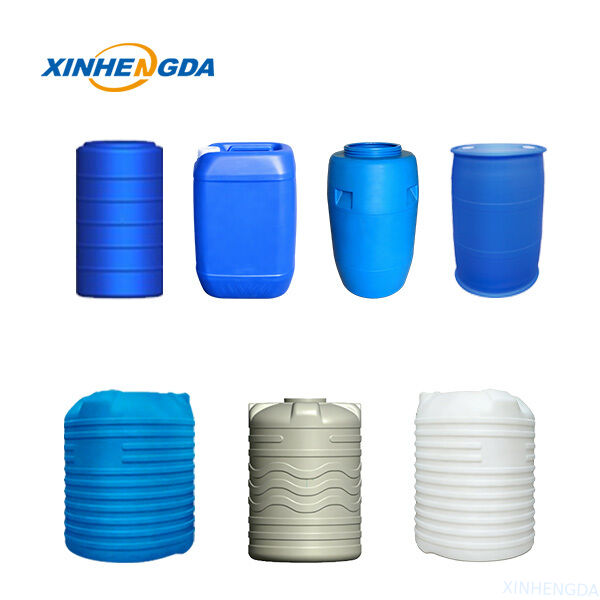

This equipment is engineered to manufacture HDPE storage tanks ranging from 500L to 2000L, serving multiple sectors as below:
Industrial Sector: Storage for chemical agents, lubricants, process water and various industrial liquids.
Agricultural Sector: Farm irrigation water reserve, as well as containment for agrochemicals and liquid fertilizers.
Civil Sector: Household water storage, rainwater collection and rural water supply systems.
Commercial Sector: Water storage for hotels, supermarkets and construction sites; liquid holding for food processing factories.

2000L Automatic Extrusion Blow Molding Machine 1-8 Layers Energy Saving
