Fully Automatically Jerry Can Moulding Machine , Plastic Bottle Blow Molding Machine

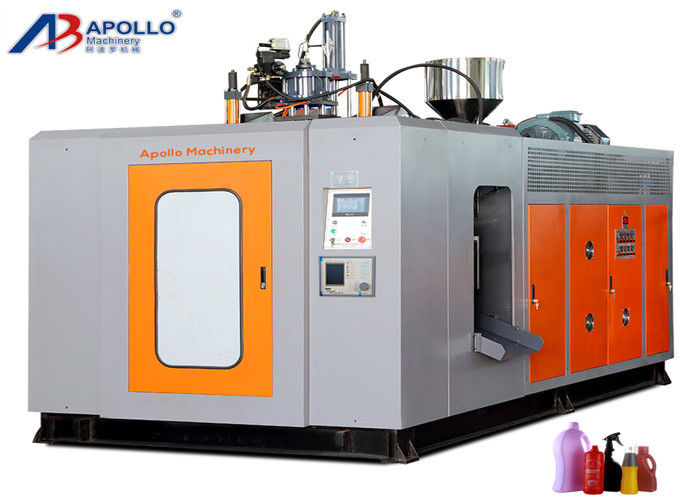

Large Image : Fully Automatically Jerry Can Moulding Machine , Plastic Bottle Blow Molding Machine

Product Details:

Place of Origin:	JIANGSU, CHINA
Brand Name:	ABC
Certification:	CE/SGS

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Film packing/Carton packing/Wooden packing
Delivery Time:	40 working days
Payment Terms:	L/C, T/T
Supply Ability:	20 sets per month

Contact Now

Detailed Product Description

Output Capacity:	900-1100pcs/h	Screw Diameter:	75mm
Screw L/D Ratio:	24 L/D	Screw Drive Power:	22 KW
Screw Heating Capacity:	7 KW	Blowing Pressure:	0.6 Mpa
Highlight:	plastic bottle moulding machine , water bottle moulding machine

Full automatic plastic bottle blow molding machine

Brand: ABC
Code: 8477309000

Product Description

Max. Product volume	8 liter
Output capacity	900-1100pcs/h
Screw diameter	75mm
Screw L/D ratio	24 L/D
Screw drive power	22 KW
Screw heating capacity	7 KW
No.of heating zone	4 zones
Output of HDPE	100KG/H
Oil pump drive power	11 KW
Clamping force	78KN
Max.size of mold	400*450mm
Mold stroke	148-568mm
Max.die diameter	160mm
Blowing pressure	0.6 mpa
Air Volume	0.8 M/MIN
Cooling water pressure	0.3mpa
Water consumption	80 L/MIN
Size of Machine	3.8x2.2x2.8m
Weight of machine	8 ton
