Product Details:
Payment & Shipping Terms:
|
| Air Volume: | 0.7 M³/MIN | Max.die Diameter: | 140mm |
|---|---|---|---|
| Max.size Of Mold: | 330X360mm | Oil Pump Drive Power: | 5.5 KW |
| No.of Heating Zone: | 3 Zones | Screw Drive Power: | 18.5 KW |
| Highlight: | bottle moulding machine,auto blow moulding machine |
||

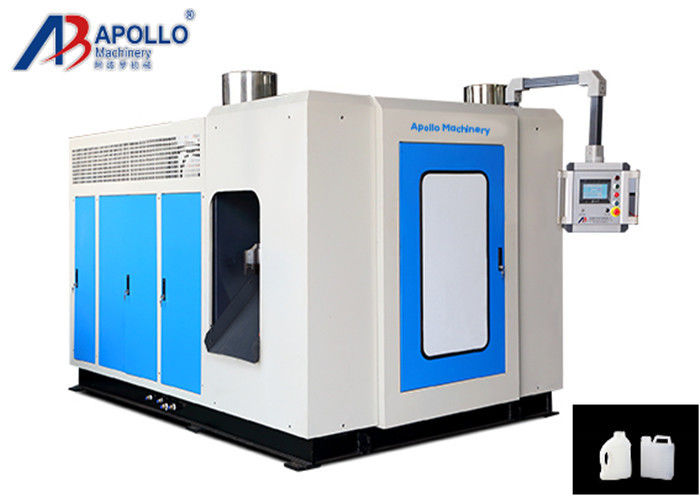

Automatic blow molding machine 5ml-2L Automatic bottle blow molding machine ABLB65II
ABLB65II This type of machine is sutiable to produce different shapes of plastic bottles from 50ml to 1.5L.
Adopt Misubishi PLC from Japan Contactor use Schneider from France Most of spareparts of hydraulic system and pneumatic system are impored from Japan,Korea,France and Taiwan,china to ensure the quality of the machine.
For more info.,please contact us.
Related technical parameter:: (ABLB65II)
| Max. Product volume | 1.5 liters | Dry cycle | 800X2pc/h |
| Screw diameter | 65mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 18.5 KW | Screw heating capacity | 5.7 KW |
| No.of heating zone | 3 zones | Output of HDPE | 80 KG/H |
| Oil pump drive power | 5.5 KW | Clamping force | 45 KN |
| Max.size of mold | 330X360mm | Mold stroke | 148-508mm |
| Max.die diameter | 140mm | Blow pressure | 0.6mpa |
| Air volume | 0.7 M³/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 65 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
Contact Person: Ms. Haidee
