Product Details:
Payment & Shipping Terms:
|
| Clamping Force: | 110KN | Out Put Capacity: | 130-140pcs/h |
|---|---|---|---|
| Dry Cycle: | 500*2pcs/h | Screw Diameter: | 90mm |
| Screw L/D Ratio: | 24 L/D | Screw Drive Power: | 37KW |
| High Light: | 4 Zones Jerry Can Moulding Machine,Jerry Can Moulding Machine 140pcs/H,jerry cans jars gallons blow molding machine |
||
Total Machine Control System
- Brand of Wisetech made in Hongkong
- True color man machine control interface
- Simple but humanized pages easy for operation
- 100 point parison thickness controller & profile eddition
- Production technics and parameter saving for 20 moulds
- Professional engineer setting pages for problem diagnosis
- Short-cut key board & emergency stop for safety production
- Aluminum cantilever operation box and easy adjustment
- Remote technical support & program updating
- Mould material S50C, P20, magnalium for your choice
- Reasonable cold water runner design for heat transmission
- Cutting blade length & flatness for deflashing effect
- Parison over-flow groove depth equal to product weight
- Suitable water inlet & outlet position for easy production
- Precise cold shrinkage calculation to insure filling volume
- Be-cooper for handle area to reduce deflashing burrs
- Bottom rods for clamping force bearing in balance
- Mould thickness matches with platen opening distance
- High hardness bimetalic screw for longer lifespan
- Good screw and teeth design for better plasticizing effect
- Reialble performance of gear box, motor and inverter
- Belt wheel speed rate is calculated according to target output
- Pre-heating with intelligent protection for screw and motor
- Screen filter is optional for small or light weight bottles
- Reasonable head runner design for color change quickly
- Die & core individualized according to your product width
- Each cylinder at each side for head lifting smoothly

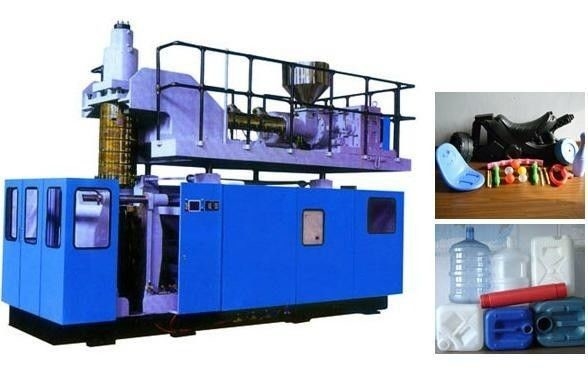

The products of ABLB90II full automatic small plastic products blow moulding machine
| Max. Product volume | 18 liters(round product) |
| Out put capacity | 130-140pcs/h |
| Dry cycle | 500*2pcs/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 37KW |
| Screw heating capacity | 8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 110KN |
