| Output Capacity: | 900-1100pcs/h | Screw Diameter: | 75mm |
|---|---|---|---|
| Screw L/D Ratio: | 24 L/D | Screw Drive Power: | 22 KW |
| Screw Heating Capacity: | 7 KW | Blowing Pressure: | 0.6 Mpa |

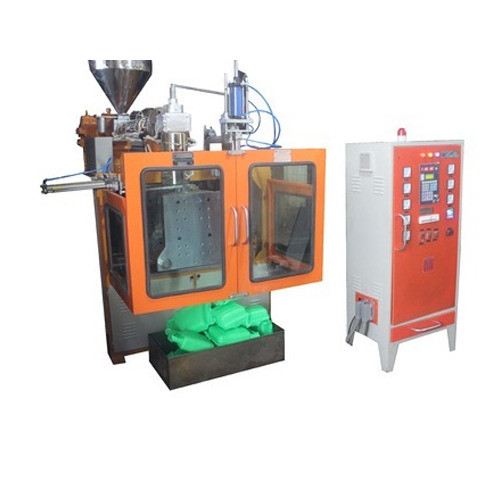

| High Light: | Plastic Jerry Can Extrusion Moulding Machine,Hdpe Bottle Jerrycan Blow Molding Machine,75mm Jerrycan Blow Molding Machine |
||
1: Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2: Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3: High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4: Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5: Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6: Multiple-way PID controlled temperature heating is precise and stable.
|
Clamping system
|
Fixed clamping system
|
|||
|
Injection system
|
Hardeoed face gear redocer + lmponed freqooncy inverter
|
|||
|
Die system
|
Special steel center-feeding die
|
|||
|
Hydraulic system
|
All imported hydraulic valve +hydraulic servo control system
|
|||
|
Control system
|
Imported PLC + Europe imported complete machine control system (GEFRAN from Italy )
|
|||
Product Description
| Max. Product volume | 8 liter |
| Output capacity | 900-1100pcs/h |
| Screw diameter | 75mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW |
| Screw heating capacity | 7 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 100KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 78KN |
| Max.size of mold | 400*450mm |
| Mold stroke | 148-568mm |
| Max.die diameter | 160mm |
| Blowing pressure | 0.6 mpa |
| Air Volume | 0.8 M/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
| Size of Machine | 3.8x2.2x2.8m |
| Weight of machine | 8 ton |
