Product Details:
Payment & Shipping Terms:
|
| Max. Product Volume: | 60 Liters | Dry Cycle: | 300pc/h |
|---|---|---|---|
| Screw Diameter: | 90mm | Screw L/D Ratio: | 25 L/D |
| Screw Drive Power: | 37 KW | Screw Heating Capacity: | 18 KW |
| High Light: | Jerry Can Extrusion Moulding Making Machine,Jerrycan Blow Molding Machine 90mm,37 KW Jerrycan Blow Molding Machine |
||

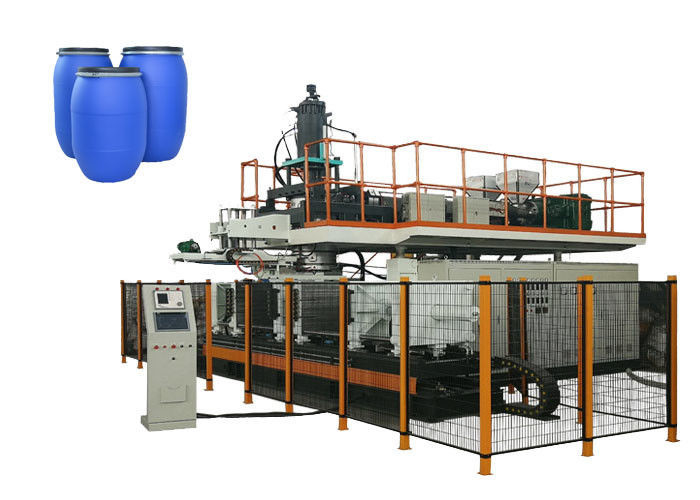

This is our best series machine.This is double station and this is electric-hydraulic.It is high speed and energy-saving.The blow pin,die-head up & down, platform up & down is controlled by electric.The main movement is controlled by hydraulic servo system.Clamping unit is elbow style and the clamping force is big.This machine is suitable for the 20L~30L stacking jerry can.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Product Description
| Max. Product volume | 60 liters |
| Dry cycle | 300pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 37 KW |
| Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 150 KG/H |
| Servo oil pump drive power | 18.5 KW |
| Clamping force | 320 KN |
| Template size | 900*900mm |
| Max.size of mold | 700X1050mm |
| Mold stroke | 550-1200mm |
| Max.die diameter | 340mm |
| Die heating power | 18 KW |
| Die heating segments | 4 zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.0 M/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
| Size of machine | 5.2*2.9*4.6 |
| Weight of machine | 13.5ton |
