| Max. Product Volume: | 60 Liters | Dry Cycle: | 300pc/h |
|---|---|---|---|
| Screw Diameter: | 90mm | Screw L/D Ratio: | 25 L/D |
| Screw Drive Power: | 37 KW | Screw Heating Capacity: | 18 KW |
| High Light: | Jerry Can Blowing Machine,4Zones Heating Jerry Can Blowing Machine,90mm Jerry Can Blowing Machine |
||

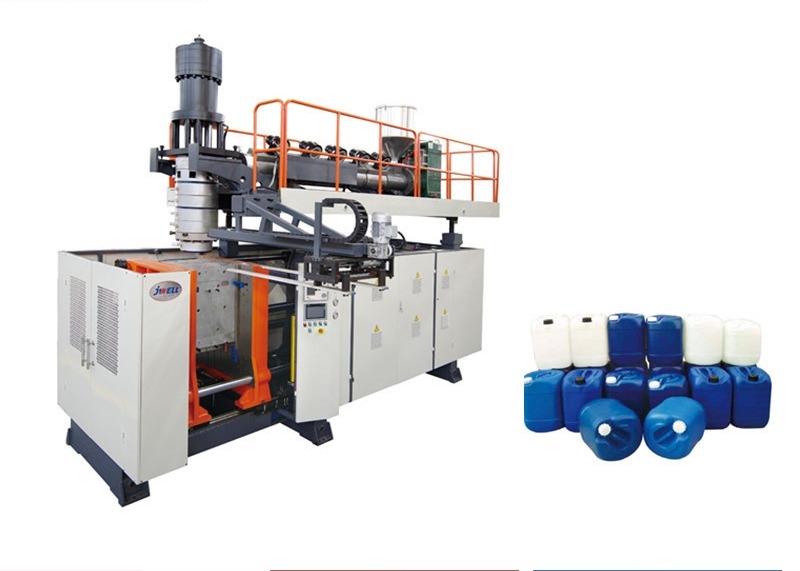

Extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines,chemical products, pesticides&detergents, water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
1. Reply the email and take action in 24 hours.
2. 100% Quality inspection before the shipment.
3. Can trainning clients operator for free in seller`s factory.
4. Engineer overseas is avilable. Introduce our engineer come to customer’s factory working.
5. Blowing mould and injection mould made orginal.
6. Auxiliary machines for complate line.
7. Custimized design as requirements.
Product Description
| Max. Product volume | 60 liters |
| Dry cycle | 300pc/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 25 L/D |
| Screw drive power | 37 KW |
| Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 150 KG/H |
| Servo oil pump drive power | 18.5 KW |
| Clamping force | 320 KN |
| Template size | 900*900mm |
| Max.size of mold | 700X1050mm |
| Mold stroke | 550-1200mm |
| Max.die diameter | 340mm |
| Die heating power | 18 KW |
| Die heating segments | 4 zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.0 M/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
| Size of machine | 5.2*2.9*4.6 |
| Weight of machine | 13.5ton |
