| Clamping Force: | 110KN | Out Put Capacity: | 130-140pcs/h |
|---|---|---|---|
| Dry Cycle: | 500*2pcs/h | Screw Diameter: | 90mm |
| Screw L/D Ratio: | 24 L/D | Screw Drive Power: | 37KW |
| High Light: | Plastic Jerry Cans Blow Molding Machine,500ml Jerry Cans Blow Molding Machine,500*2pcs/h Jerry Cans Molding Machine |
||

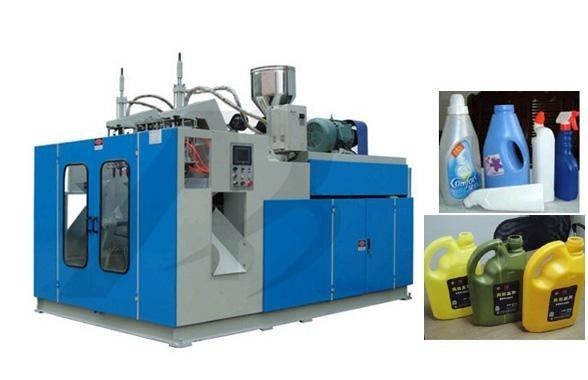

HDPE Small Bottle Making Machine SRB65-4 is single station blow moulding machine for 500ml as maximum, specially used for 50ml to 500ml plastic bottles, small containers and jars. Its output for 50~100ml bottle is 1000 Pcs/hour, for 200~350ml bottle is 950 Pcs/hour, for 500ml round bottle is 900 Pcs/hour. SRB65 is popular due to its high quality and price rate, stable working performance, easy operation and maintenance.
The products of ABLB90II full automatic small plastic products blow moulding machine
| Max. Product volume | 18 liters(round product) |
| Out put capacity | 130-140pcs/h |
| Dry cycle | 500*2pcs/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 37KW |
| Screw heating capacity | 8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 110KN |
Features & Advantages
1. Reasonable structure design and solid frame manufacturing to insure running stability.
2. Good head material runner deisgn and precision metal process for changing color easily.
3. According to your specified request, our machine can be made with co-extrusion of 2~4 layers and view stripe line.
4. Colorful touch screen, cantilever operation box, bottle collective shelves, scraps sliding channel and safety protection.
5. Total machine control system well match with scraps on-line deflashing, angle adjustable blowing unit, neck rotary cutting, in-mould labeling, weight testing and leakage testing, product conveying & packing.
