| Clamping Force: | 110KN | Out Put Capacity: | 130-140pcs/h |
|---|---|---|---|
| Dry Cycle: | 500*2pcs/h | Screw Diameter: | 90mm |
| Screw L/D Ratio: | 24 L/D | Screw Drive Power: | 37KW |
| Highlight: | plastic bottle moulding machine,water bottle moulding machine |
||
Product Description

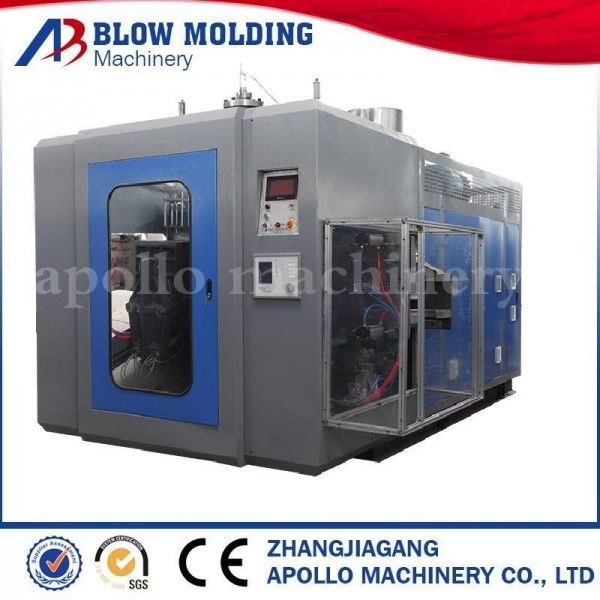

ABLB90Ⅱautomatic high speed small plastic products blow moulding machine was specially designed for making plastic water gallons, lubricant oil bottles, tool boxes, plastic drums, and other plastic containers not over 20L.
The features of this automatic high speed small plastic products blow moulding machine :
(1) It is suitable for producing PE,HDPE,PP, PVC so on,plastic containers and bottles in all shapes are available, the max. product volume is up to 20L.
(2) Double station single die head design,Stable and efficient.
(3) Most components of the blow moulding machine are from famous world brand.
(4) Full automatic process with low power consumption,high efficiency,quick and safe operation,easy for maintenance.
(5) Multiple screw available for double layer or tranparent liquid lever line.
(6) Auto deflashing device available,can remove the extra parts of bottles.
(7) Auto lubricant system controlled by PLC.
(8) Special screw cut device available
(9)The most important: this small plastic bottle blow moulding machine is equipped with servo system , it can save 30% power than traditional machines. It can help you make more money.
The products of ABLB90II full automatic small plastic products blow moulding machine
| Max. Product volume | 18 liters(round product) |
| Out put capacity | 130-140pcs/h |
| Dry cycle | 500*2pcs/h |
| Screw diameter | 90mm |
| Screw L/D ratio | 24 L/D |
| Screw drive power | 37KW |
| Screw heating capacity | 8 KW |
| No.of heating zone | 4 zones |
| Output of HDPE | 130KG/H |
| Oil pump drive power | 11 KW |
| Clamping force | 110KN |
