| Screw Diameter: | 90mm | Screw Drive Power: | 37 KW |
|---|---|---|---|
| Oil Pump Drive Power: | 30 KW | Max.size Of Mold: | 700X950mm |
| Max.die Diameter: | 340mm | Air Volume: | 1.0 M/MIN |
| Highlight: | plastic bottle moulding machine,water bottle moulding machine |
||

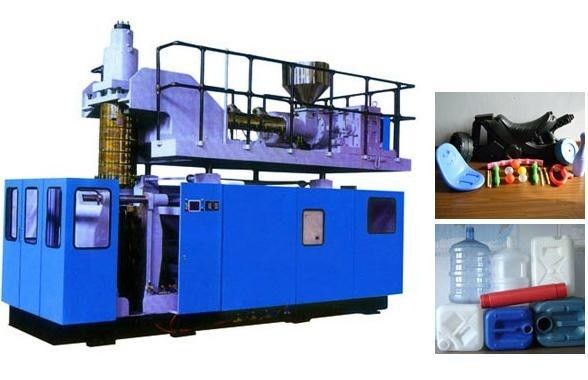

ABLD90 full automatic blow molding machine is suitable for various kinds of plastic bottles in all shapes from 13L to 60L.It is widely used to produce tool boxes and big volume bucket,plastic boards and related containers.Equipment with sevo parion control system can control the thickness of the product precision to 1/1000mm. It can also meet the requirement of different thickness of plastic.
Easy to operate,saved labor cost,saved enery,high efficiency to promote your productivity
You can regain the machine cost with 1-2 years.
The machine looks neat and nice
Perfect function with economic investment.
For more information about the machine,please don't hesitate to contact us.
Related technical parameter(ABLD90)
| Max. Product volume | 50 liters | Dry cycle | 450pc/h |
| Screw diameter | 90mm | Screw L/D ratio | 25 L/D |
| Screw drive power | 37 KW | Screw heating capacity | 18 KW |
| No.of heating zone | 4 zones | Output of HDPE | 130 KG/H |
| Oil pump drive power | 30 KW | Clamping force | 260 KN |
| Max.size of mold | 700X950mm | Mold stroke | 450-1000mm |
| Max.die diameter | 340mm | Die heating powe | 7.6 KW |
| Die heating segments | 4 zones | Blowing pressure | 0.8mpa |
| Air volume | 1.0 M/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 90 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
Pairs of spiral type flow dishes of first-in first-out store material mould hair, remove and converge the line completely, guarantee the purity of the products.
Multi- import wall thickness control system use, Can satisfy each irregular product to wall thickness request.
Gathers when the mold diffraction grating induction protective device, Increased the operation security.
Various kinds of functions suitable for matching special products, for instance; Leave and blow and go up and down, prop up the material ,the internal and external whorl is rotated, the drawing of patterns,the sub mould is opened and close, seal automatically, automatically take out/manipulator/,etc.
