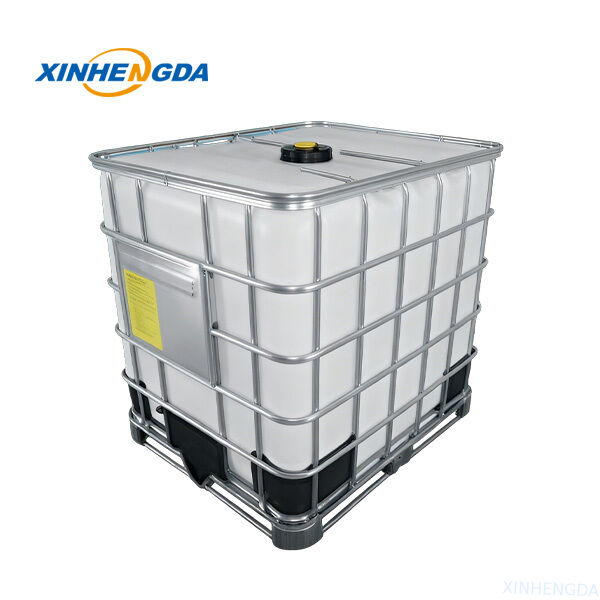

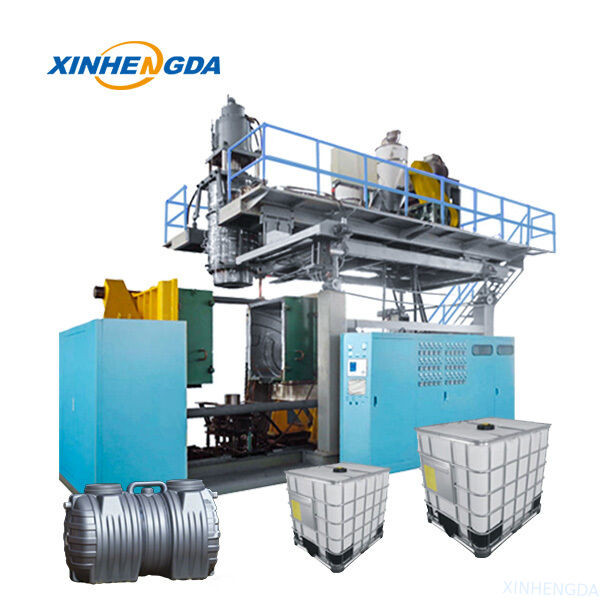

1000L Ibc Tank Blowing Machine Water‑Cooled Durable for IBC Tank Production
Adopting extrusion blow‑molding principle, Xinhengda blow molding unit is fitted with FIFO accumulator, MOOG wall thickness regulator and servo hydraulic setup. It realizes 1‑5 layer co‑extrusion and automates production of 20L‑10000L plastic water tanks. Equipped with PLC control system and HMI plus robotic part removal, this HDPE‑compatible equipment delivers high output with low power consumption, covering civil water storage, industrial auxiliary and new‑energy application segments.
Key attributes
video outgoing-inspection
mold platen size(width)(mm)
mold platen size(height)(mm)
die head heating power(kw)
After-sales Service Provided1
Field installation, commissioning and training
After-sales Service Provided2
Engineers available to service machinery overseas
1.Precision Extrusion & Parison Thickness Management: Featuring FIFO accumulator paired with MOOG wall‑thickness controller, it fine‑tunes parison dimension. Even tank wall distribution strengthens structural performance and extends service life of finished products.
2.High‑speed Mould Movement & Reliable Locking: Linear guide rails and electronic displacement sensors drive mould movement up to 600mm/s. Ample clamping force guarantees consistent forming precision throughout manufacturing cycles.
3.Unattended Automated Operation: Integrated robot performs automatic part demoulding. It minimizes manual involvement, boosts throughput and cuts labour expenditure effectively.
4.Power‑Saving Hydraulic Solution: Servo‑based hydraulic architecture achieves 40% energy saving against conventional hydraulic systems, lowering long‑term operational expenses.
5.Multi‑Layer Co‑Extrusion Capability: It supports 1‑5 layer co‑extrusion to manufacture functional composite water tanks, fulfilling anti‑aging and anti‑permeation special application requirements.
6.Smart Operation & Status Supervision: PLC controller together with HMI presents real‑time device data, process parameters and fault reminders, simplifying daily operation and maintenance work.
1.Cost‑Effective Performance: This machine yields plastic hollow liners with less material consumption and faster forming cycles versus enamel liner manufacturing gear, bringing down total production outlay. When pitted against stainless‑steel liners, plastic alternatives deliver superior heat retention to cut energy expenses in practical application scenarios.
2.Outstanding Product Quality: Precise wall‑thickness regulation produces weld‑free liners with reliable sealing, corrosion and aging resistance for longer service cycles. Internationally renowned brand components stabilize machine performance and suppress defective item outputs.
3.Convenient Operation & Upkeep: Full‑automatic system along with intuitive HMI lowers operator learning difficulty. Optimized structural layout facilitates routine repairs, while responsive after‑sales support helps enterprises slash daily maintenance spending.
4.Versatile Customization Service: Custom‑modified machine versions are available to fabricate 120L‑1500L inner tanks, catering to varied production requirements from diverse solar water heater producers.
1.High Energy‑Saving Performance: The servo‑hydraulic setup achieves remarkable power reduction. Multi‑layer co‑extrusion boosts material usage ratio, while automated workflows cut manpower input and time‑related expenditures.
2.Solid Operational Dependability: Constructed with premium die material 38GYMOALA and high‑precision spare parts, the machine runs smoothly with low failure frequency and realizes prolonged service lifespan.
3.Superior Forming Accuracy: MOOG wall‑thickness regulator paired with electronic ruler stroke monitoring guarantees accurate dimensions and even wall distribution for finished water tanks, elevating overall product grade.
4.Strong Compatibility & Flexibility: It supports interchangeable moulds for multi‑capacity tank manufacturing. Good material compatibility covers HDPE and other feedstocks to satisfy diversified market orders.
5.User‑Centric Operation: The intuitive HMI simplifies parameter adjustment and fault troubleshooting. It lowers skill requirements for operators and helps enterprises save staff training expenses.

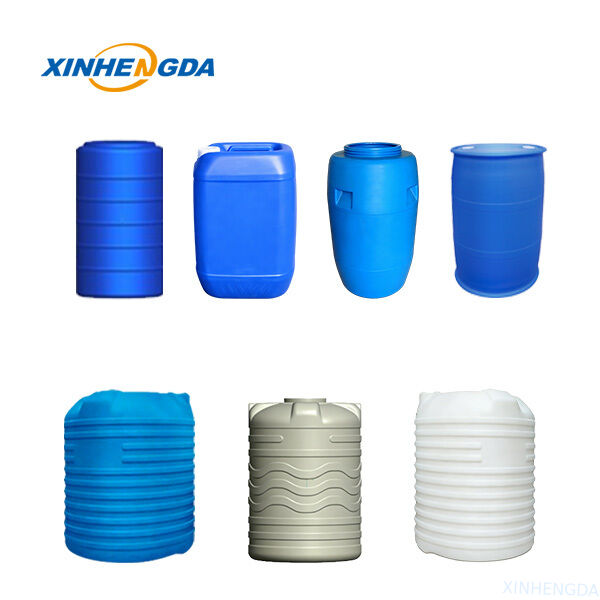

1.Civil Water Storage: It manufactures compact household water containers and secondary water‑supply tanks for daily water usage, fitting individual homes and residential communities.
2.Industrial Auxiliary Usage: It fabricates chemical stock tanks, waste‑liquid holding vessels and industrial circulating cooling tanks, covering various liquid‑storage requirements during factory production procedures.
3.Agricultural Irrigation & Breeding: Farm irrigation tanks and aquaculture water containers can be produced for farm water‑saving irrigation and livestock water reservation, assisting daily agricultural operations.
4.New‑Energy Industry: Ideal for producing solar water heater inner liners and heat‑pump storage tanks. Multi‑layer co‑extrusion enhances thermal retention and anti‑corrosion performance of finished components.
5.Municipal & Construction Works: The equipment makes fire‑water tanks and other auxiliary products, catering to temporary water storage for municipal projects and water containment demands at construction sites.
