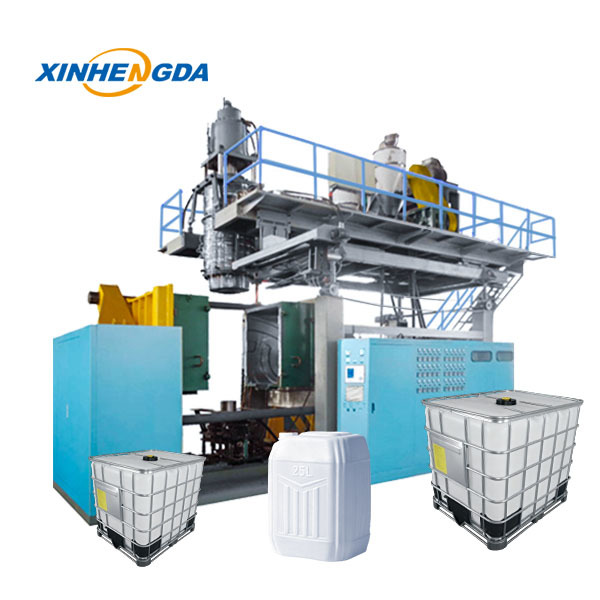

1000L Automatic Extrusion Blow Moulding Machine Easy Operation IBC Tank Making
Xinhengda extrusion blow molding machine leverages accumulator head blow molding technology, fitted with MOOG parison wall thickness controller and servo hydraulic drive system. It supports 1 to 5 layers co-extrusion and auto production of plastic water tanks ranging from 20L up to 10000L. Controlled by PLC and HMI, the unit comes with robotic automatic pick-up and works well with HDPE material. It achieves high throughput while cutting energy consumption, serving civil water storage, industrial auxiliary and new energy sectors.
Key attributes
video outgoing-inspection
mold platen size(width)(mm)
mold platen size(height)(mm)
die head heating power(kw)
After-sales Service Provided1
Field installation, commissioning and training
After-sales Service Provided2
Engineers available to service machinery overseas
1.Precise extrusion & parison thickness regulation: The FIFO accumulator head works with MOOG thickness controller to fine-tune parison dimension. It delivers consistent tank wall thickness and enhances the finished tank’s structural strength and service life.
2.High-speed mold opening and reliable clamping: Linear guideways and electronic ruler stroke control enable a mold movement speed up to 600mm/s. Stable clamping force guarantees accurate and steady forming results.
3.Automated manufacturing: Built-in robotic pick-up mechanism minimizes manual operations, boosts production capacity and cuts labor expenses.
4.Power-saving hydraulic unit: Servo hydraulic design reduces energy consumption by 40% versus conventional systems, lowering ongoing operational expenditure.
5.Multi-layer co-extrusion forming: Supports 1 to 5-layer co-extrusion to fabricate functional composite water tanks with anti-aging and barrier properties.
6.Intelligent monitoring & control: PLC paired with HMI displays equipment status, production data and fault alerts in real time for simple operation and maintenance.
1.Cost Benefits: Plastic hollow liners manufactured on this machine feature cheaper raw materials and faster forming cycles than enamel liner equipment, cutting total manufacturing expenses. Compared with stainless steel alternatives, plastic liners deliver superior thermal insulation and lower ongoing energy consumption.
2.Superior Product Quality: Accurate wall thickness regulation ensures seamless liners with reliable sealing, corrosion resistance and anti-ageing properties for longer service life. Fitted with premium branded components, the machine runs steadily and lowers reject rates.
3.Simple Operation & Maintenance: Full automatic control paired with intuitive HMI shortens operator learning curves. Optimized mechanical layout simplifies upkeep, supported by responsive after-sales support to minimize enterprise operating costs.
4.Customization Capability: Machine configurations can be tailored to client requirements, supporting inner tank production ranging from 120L to 1500L to satisfy diverse demands of solar water heater manufacturers.
1.Energy & Production Efficiency: Servo hydraulic power cuts energy consumption remarkably. Multi-layer co-extrusion boosts material utilization, while automated workflows slash labor and cycle expenses.
2.Stable & Durable Performance: Constructed with premium die steel (38GYMOALA) and precision parts. The machine runs steadily with minimal breakdowns for an extended service lifespan.
3.Superior Forming Precision: MOOG wall thickness controller paired with electronic ruler stroke control guarantees precise dimensions and uniform tank wall, elevating finished product quality.
4.Wide Compatibility: Supports interchangeable molds for tanks of various capacities. It works well with HDPE and other materials to satisfy diversified market requirements.
5.User-Friendly Operation: Intuitive HMI simplifies fault checking and parameter setup. It lowers technical barriers for operators and reduces training investment.

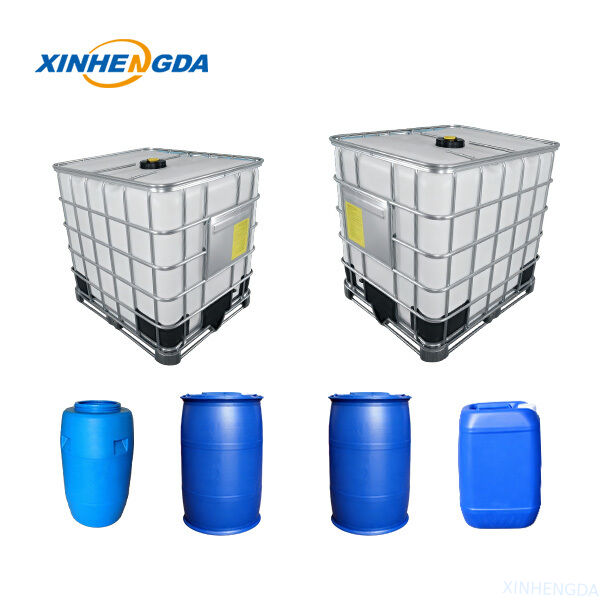

Civil Water Storage: Creates compact household water tanks and secondary water supply vessels for homes and residential communities to satisfy daily water storage demands.
Industrial Support: Produces tanks for chemical raw materials, waste liquid containment and industrial circulating cooling water, fulfilling liquid storage requirements in factory operations.
Agricultural Irrigation: Manufactures farm irrigation tanks and livestock breeding reservoirs, supporting water-saving irrigation and livestock water storage to boost agricultural output.
New Energy Sector: Ideal for fabricating solar water heater inner liners and heat pump storage tanks. Multi-layer co-extrusion enhances thermal insulation and anti-corrosion properties.
Municipal & Construction: Applies to temporary water storage in municipal projects, construction water holding and the production of auxiliary facilities including fire protection water tanks.
