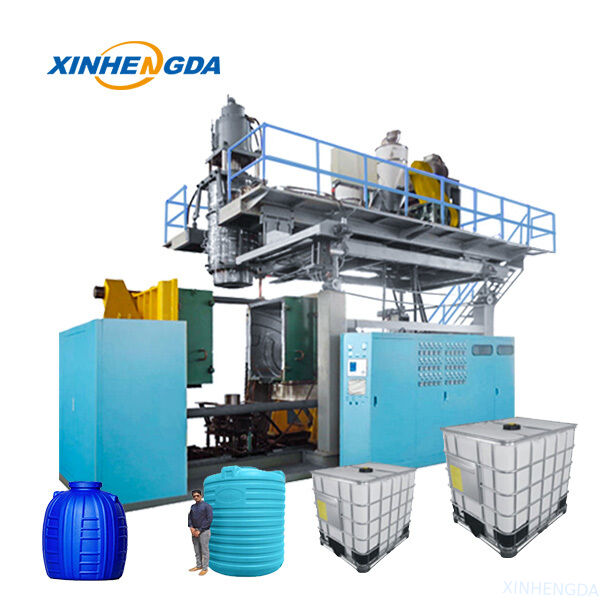

High‑Efficiency Ibc Tank Blowing Machine Water‑Cooled for 1000L Container Making
Developed by Xinhengda, this tank blow molding unit applies extrusion blow‑molding technique, fitted with premium accumulator head, MOOG wall‑thickness adjustment module and servo hydraulic system. It enables 1‑5‑layer co‑extrusion and auto‑produces 20L‑10000L plastic water tanks. Built‑in PLC system and intuitive HMI work with robotic unloading, optimized for HDPE material. Delivering high throughput alongside low energy consumption, the machine fits civil water storage, industrial auxiliary and new‑energy related applications.
Key attributes
video outgoing-inspection
mold platen size(width)(mm)
mold platen size(height)(mm)
die head heating power(kw)
After-sales Service Provided1
Field installation, commissioning and training
After-sales Service Provided2
Engineers available to service machinery overseas

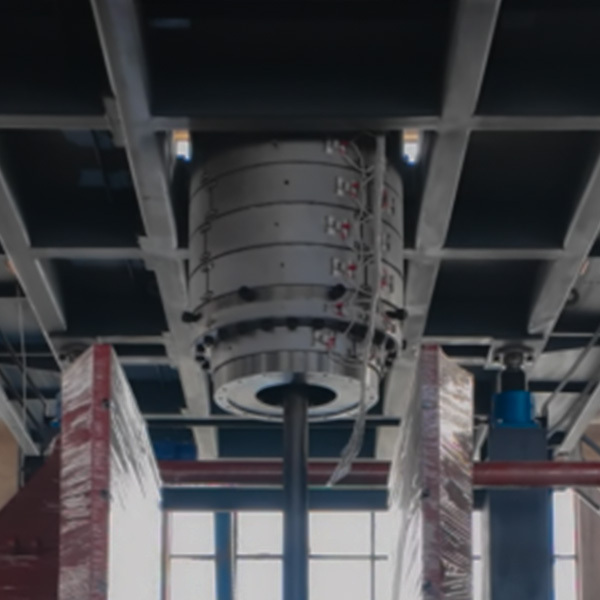

1.Accurate Extrusion & Parison Thickness Tuning: Outfitted with FIFO accumulator together with MOOG thickness tuning unit, it fine‑tunes parison dimension accurately for even tank wall distribution, boosting finished product mechanical strength and service lifespan.
2.High‑speed Mould Clamping & Reliable Lock‑up: Supported by linear guide rails and electronic displacement sensors, its mould moving speed reaches 600mm/s. Sufficient clamping force guarantees consistent forming precision throughout production cycles.
3.Fully‑automatic Production Flow: Integrated robotic arm completes automatic part take‑off. It cuts manual operation involvement, lifts overall output and curtails labour expenditure effectively.
4.Energy‑saving Hydraulic Configuration: Servo‑driven hydraulic solution delivers over 40% power saving versus conventional setups, helping enterprises cut long‑run operational expenses.
5.Multi‑layer Co‑extrusion Capability: Realizes 1‑5 layer co‑extrusion to manufacture functional composite water tanks, satisfying special requirements including anti‑permeation and anti‑aging performance.
6.Smart Monitoring & Operation: PLC‑based control paired with user‑friendly HMI displays running status, production parameters and fault alerts in real time, simplifying daily operation and troubleshooting work.
1.Cost‑Optimized Performance: Plastic hollow liners made on this machine consume less raw materials and deliver faster molding cycles than enamel liner production lines to lower total manufacturing expenses. Against stainless steel alternatives, plastic liners feature superior heat retention and cut ongoing energy expenditure in practical application.
2.Reliable Product Quality: Accurate wall‑thickness management produces weld‑free liners with outstanding sealing, anti‑corrosion and anti‑aging properties for longer service cycles. Adopting globally recognized brand components stabilizes machine running and minimizes defective output.
3.User‑Friendly Operation & Servicing: Full‑auto control system with intuitive HMI shortens operator learning curves. Optimized mechanical layout simplifies routine repairs, while responsive after‑sales support helps businesses keep maintenance overhead down.
4.Flexible Customization Support: Custom‑tailored machine versions are available to produce 120L‑1500L inner tanks. It addresses varied production requirements from different solar water heater manufacturers.
1.High Energy‑Saving Efficiency: Servo‑driven hydraulic unit achieves notable power reduction. Multi‑layer co‑extrusion raises material utilization rate, while automated workflows slash labour input and time‑related expenses.
2.Dependable Operational Stability: Built with premium die materials including 38GYMOALA and high‑grade precision parts. The machine runs steadily with low failure frequency and achieves prolonged service lifespan.
3.Superior Forming Accuracy: MOOG wall‑thickness adjustment paired with electronic ruler stroke control guarantees consistent wall distribution and precise dimensions for finished water tanks, lifting overall product grade.
4.Strong Application Flexibility: It works with interchangeable moulds for various tank capacities. Good material compatibility covers HDPE and other feedstocks to satisfy diversified market requirements.
5.Simple Operational Handling: Clear HMI layout enables straightforward parameter configuration and fault checking. It lowers technical barriers for operators and cuts enterprise training expenditure.

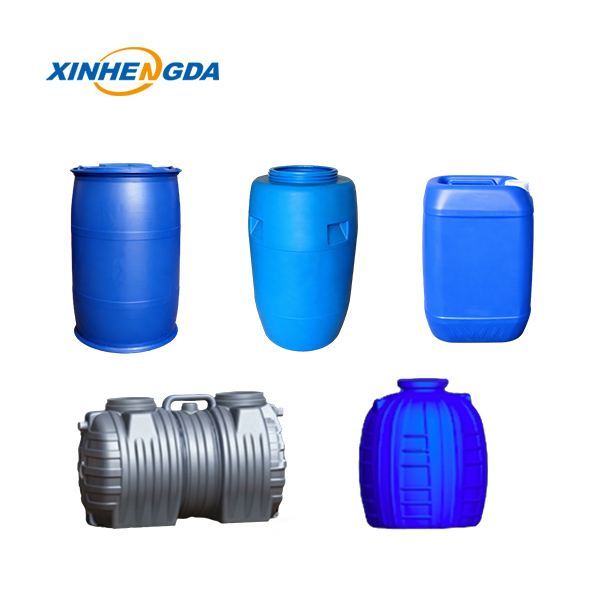

Civil Water Storage Sector: Manufactures compact household water tanks and secondary water‑supply containers for domestic water usage, fitting households and residential communities.
Industrial Supporting Sector: Produces chemical storage vessels, waste‑liquid holding tanks and industrial circulating cooling tanks to satisfy diverse liquid‑storage demands within factory workflows.
Agricultural Irrigation Sector: Outputs farm irrigation tanks and breeding‑purpose water containers for agricultural water‑saving irrigation and livestock water storage, supporting normal agricultural operations.
New Energy Sector: Suited for fabricating solar water heater inner liners and heat‑pump buffer tanks. Multi‑layer co‑extrusion technology enhances thermal insulation and anti‑corrosion properties of finished products.
Municipal & Construction Sector: Creates fire‑protection water tanks and other auxiliary products, serving temporary water storage for municipal projects and construction‑site water holding requirements.
