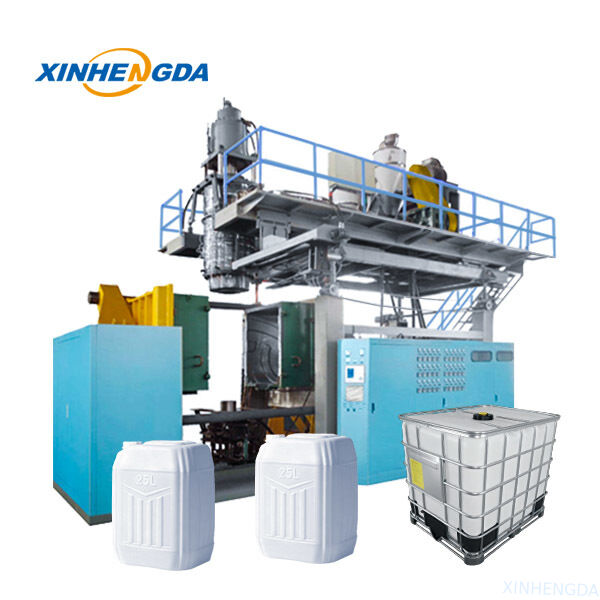

1000L Automatic Extrusion Blow Moulding Machine, High Efficiency & Stable Operation
Xinhengda’s extrusion blow molding unit leverages extrusion blow molding technology, fitted with a state-of-the-art accumulator head, MOOG parison thickness regulator and servo hydraulic drive system. It enables 1 to 5 layers co-extrusion and automates the manufacturing of plastic water tanks ranging from 20L up to 10000L.
Outfitted with PLC control and human-machine touch panel, paired with robotic automatic product take-off, the machine works well with HDPE raw materials. It delivers high throughput while cutting power consumption, suited for domestic water storage, industrial auxiliary systems and new energy sectors.
Key attributes
video outgoing-inspection
mold platen size(width)(mm)
mold platen size(height)(mm)
die head heating power(kw)
After-sales Service Provided1
Field installation, commissioning and training
After-sales Service Provided2
Engineers available to service machinery overseas
1.Accurate Extrusion & Wall Thickness Regulation: FIFO accumulator head paired with MOOG thickness controller fine-tunes parison dimension, delivering consistent tank wall thickness and boosting product mechanical strength and service life.
2.Fast Mold Opening & Secure Clamping: Linear guide structure with electronic ruler stroke control supports mold movement speed up to 600mm/s. Reliable clamping force guarantees high-precision and stable forming.
3.Automated Operation: Integrated robotic pick-up unit cuts manual involvement, elevates throughput and minimizes labor expenditure.
4.Energy-Efficient Hydraulic Setup: Servo hydraulic configuration achieves 40% power saving versus conventional systems, lowering long-run operational expenses.
5.Multi-layer Co-extrusion Forming: Supports 1 to 5-layer co-extrusion to manufacture functional composite water tanks for anti-aging and anti-permeation requirements.
6.Smart Monitoring & Control: PLC system and HMI panel display running status, production parameters and fault alerts in real time for convenient operation and maintenance.
.
1.Precision Extrusion & Wall Thickness Tuning: The FIFO accumulator head works with MOOG parison thickness regulator to adjust blank dimension precisely. It achieves uniform tank wall and enhances structural strength and service lifespan.
2.Rapid Mold Movement & Stable Clamping: Adopts linear guide rails and electronic stroke control. Mold opening and closing speed reaches 600mm/s. Stable clamping force ensures consistent molding accuracy.
3.Automated Manufacturing: Built-in robotic take-off mechanism reduces human operation, raises production capacity and cuts labor costs.
4.Power-Saving Hydraulic System: Servo hydraulic design reduces energy consumption by 40% compared with traditional setups, decreasing long-term operational costs.
5.Multi-Layer Co-Extrusion Molding: Supports 1–5 layer co-extrusion to produce functional composite water tanks that meet anti-aging and barrier performance demands.
6.Intelligent Monitoring System: PLC and HMI interface show real-time equipment status, production parameters and fault reminders, simplifying daily operation and maintenance.
1. High Efficiency & Energy Conservation: Equipped with an energy-efficient servo hydraulic system, the machine cuts power consumption effectively. The advanced multi-layer co-extrusion process optimizes raw material utilization rate, while full-process automation streamlines production procedures to slash labor and time costs.
2. Stable & Dependable Performance: Adopting premium 38GYMOALA die steel and high-precision matching parts, the whole equipment features stable running status, low failure rate and prolonged overall service life, delivering consistent long-term operation.
3. Superior Molding Precision: Integrated with MOOG wall thickness control system and electronic ruler stroke positioning technology, the machine achieves precise dimensional control and uniform wall thickness for finished water tanks, greatly upgrading product qualification quality.
4. Strong Operational Flexibility: It supports flexible matching of multi-specification molds, enabling mass production of water tanks with diverse capacities. Compatible with HDPE and other mainstream raw materials, it fully adapts to differentiated market production demands.
5. User-Friendly Operation: Intuitive human-machine interaction interface simplifies parameter configuration and automatic fault diagnosis. It lowers operational technical barriers and staff training expenses, realizing convenient daily equipment management.
1.Civil Water Storage: Produces compact household water tanks and secondary water supply containers for homes and residential communities to meet daily water storage demands.
2.Industrial Support: Fabricates chemical storage tanks, waste liquid holding vessels and industrial cooling circulation tanks to satisfy liquid handling requirements in factory operations.
3.Agricultural Irrigation: Makes farm irrigation tanks and breeding reservoirs, supporting water-saving irrigation and livestock water storage to boost agricultural production.
4.New Energy: Ideal for manufacturing solar water heater liners and heat pump storage tanks. Multi-layer co-extrusion enhances thermal insulation and anti-corrosion properties.
5.Municipal & Construction: Creates fire water tanks and other auxiliary equipment, serving temporary water storage for municipal projects and construction site water supply.
