Product Description

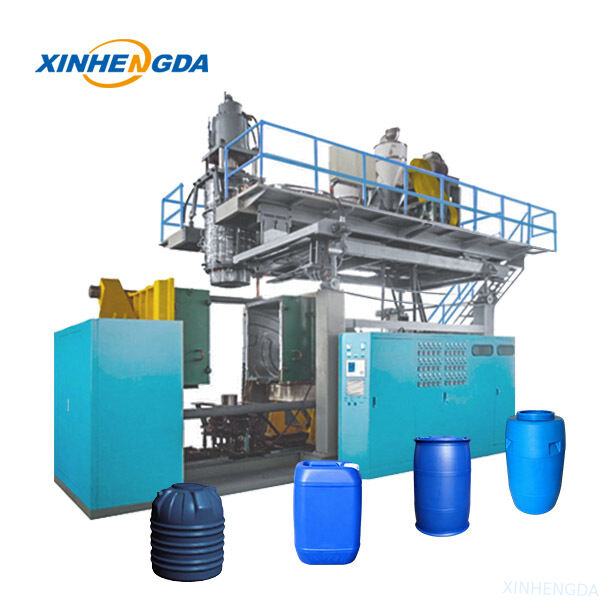

Mechanical Production Water tank and chemical drum production equipment

Product Introduction

The XHD1000L Fully Automatic Plastic Blow Molding Machine comes in two separate versions: the single-screw type (XHD1000FZ single screw) and the twin-screw type (XHD1000FZ double screw). This machine is specially developed for the float manufacturing process, using HDPE and HMW-HDPE as its main raw materials. It supports fully automatic operation, higher production capacity, and efficient material utilization. Equipped with CE and SGS certifications, the machine includes free on-site installation, commissioning and professional operation training. It also provides a 12-month comprehensive warranty for the whole machine and supporting molds.

Tabular Parameters

1. Working Conditions

Working Conditions	Specific Requirements
Operating Environment	Indoor workshop with good ventilation; overhead crane height ≥9m; plant foundation concrete ≥10cm; away from magnetic fields; humidity ≤90%; temperature 0-45℃
Power Supply	3-phase 4-wire 50Hz, 380V-415V
Cooling Water	Water temperature ≤20℃; water pressure ≥0.3Mpa; water consumption 50T/H
Air Source	Compressed air supply pressure: 0.8 MPa; product molding air pressure: 0.2–0.4 MPa
Raw Material	High-density polyethylene HDPE/HMW-HDPE

2. Equipment Overview

No.	Item	Single Screw Configuration	Double Screw Configuration
1	Extruder	140MM, L/D ratio 30:1	120/120MM, L/D ratio 30:1
2	Machine Die Head	35L 26KGS, high-efficiency ceramic heating ring	35L 26KGS, high-efficiency ceramic heating ring
3	Clamping Unit	3-piece type clamping unit with 2 pull bars, clamping force 1000KN	3-piece type clamping unit with 2 pull bars, clamping force 1000KN
4	Machine Frame	Elevating machine frame	Elevating machine frame
5	Material Loader	Spring-type feeding machine (2.2KW)	Spring-type feeding machine (2.2KW)
6	Blow Seat	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)	Multi-function blow seat (5 functions: air blowing/exhausting, sealing, etc.)
7	Robot	Adjustable 4-function robot (forward/backward movement, cooling, etc.)	Adjustable 4-function robot (forward/backward movement, cooling, etc.)
8	Hydraulic System	Taiwan Delta servo-controlled main hydraulic station + wall thickness control small hydraulic station	Taiwan Delta servo-controlled main hydraulic station + wall thickness control small hydraulic station
9	Electrical System	Siemens PLC/Italy Gefran control system (optional)	Siemens PLC or Italy Gefran control system (optional)
10	Machine Power	Total power 252.375KW, average power 134KW	Total installed power 346KW, average power consumption 176KW
11	Machine Dimension (L×W×H)	8×4×6.3M	8×4×6.3M
12	Machine Weight	25TON	30TON
13	Melting Capacity	280KGS	280KGS
14	Product Layers	1 layer	1 layer

3. Core Components Material & Configuration

Components	Material/Configuration
Screw/Barrel	38CrMoAl
Die Pin/Core Pin	45# steel
Accumulator	38CrMoAl & 45# steel (35L/26KGS)
Hydraulic Components	Taiwan Yuken pumps and valves
Pneumatic Components	STNC & AirTac pneumatic valves
Low-Voltage Apparatus	Siemens (contactors, circuit breakers, etc.)
Wall Thickness Control System	Japan MOOG 200-point axial wall thickness controller
Servo System	Equipped with Delta servo motors, Italy PHASE servo control system, and Japan Sumitomo servo oil pump

Product Core Functions

1.Material Processing: The IKV-designed screw achieves high-efficiency plasticizing and uniform compounding, with a rated melting capacity reaching 280KGS.

2.Molding Control: A Moog 200-point parison wall thickness controller ensures stable product wall thickness and supports flexible weight adjustment within an extensive range.

3.Automatic Operation: Finished products are discharged automatically via a mechanical arm; the 5-function blow station completes air blowing, exhaust, sealing and other core processes, realizing full automation of the production line.

4.Temperature Control: Utilizing a time-sharing segmented heating method, the die head and screw are equipped with independent temperature control systems, which effectively reduce energy loss during operation.

5.Easy Maintenance: The independent pneumatic station and integrated manifold structure facilitate convenient inspection and maintenance, paired with tidy and unobstructed pipeline layout for smooth operation

Product Competitive Advantages

1.Cost Efficiency: Compared with rotational molding tanks, raw material waste can be reduced by 25%–35%; the variable frequency control system also helps achieve a notable drop in total power consumption.

2.Higher Productivity: Boasts greater production efficiency than rotational molding equipment; the whole line only needs 3–4 operators, and a single machine can be independently run by just two female workers.

3.Improved Product Quality: Finished products feature significantly higher impact resistance than rotational molding tanks, with consistent and uniform wall thickness across all outputs.

4.Stable Configuration: Equipped with high-quality branded components including Siemens, Delta and MOOG, delivering stable and reliable performance during long-term production.

5.Complete After-sales Service: Provides free on-site installation and professional technical training, 12-month warranty, as well as free spare parts for troubleshooting and daily maintenance.

Product Distinctive Features

1. Structural Design The elevated frame with multi-row screw-hole backplate supports convenient hydraulicmold changing (1600MM moving stroke), making the machine highly suitable for producing various floatingproducts.
2. Precision Control: Taiwan Delta servo-hydraulic system delivers fast response and stable pressure building.lowering energy consumption by over 40%; PLC intelligent automatic temperature control is equipped with amultilingual interface (customizable according to client's language).
3. Rugged Material Configuration Key components adopt high-quality materials such as 38CrMoAl and 45#steel the machine is equipped with cast steel lifting structure and Schneider solid-state relays (AC contactorsused in high-temperature zones).
4. Safety & Stable Operation: Full-protection covers and safety rallings are installed throughout the machine,dual cooling protection (barrel air cooling + feeding section water cooling) ensures stable running underindoor temperatures of 0-45°C.

Application Scenarios

This machine is specially developed for float manufacturing, ideal for the mass production of HDPE floatingproducts such as marine buoys, vessel floats, and water platform floating structures. It is widely used inaquaculture, marine engineering. ship supporting svstems and other related industries.

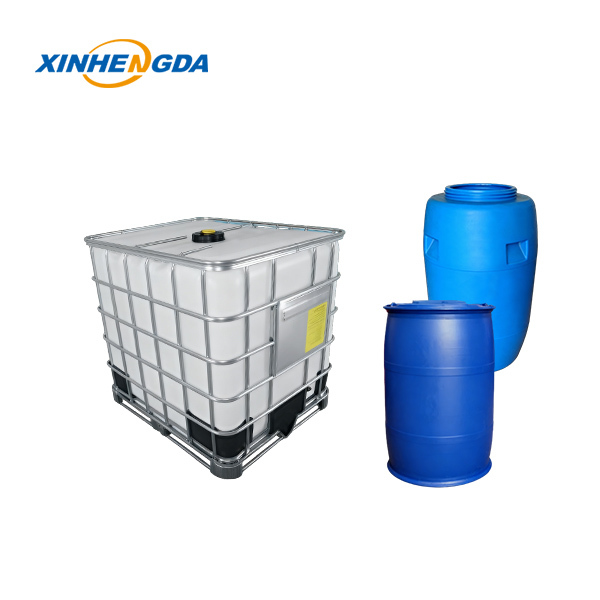

Mechanical Production Water tank and chemical drum production equipment 1

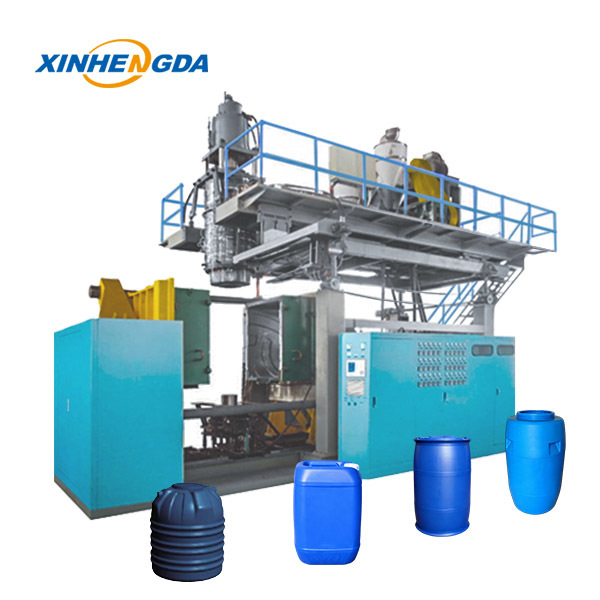

Mechanical Production Water tank and chemical drum production equipment 2
