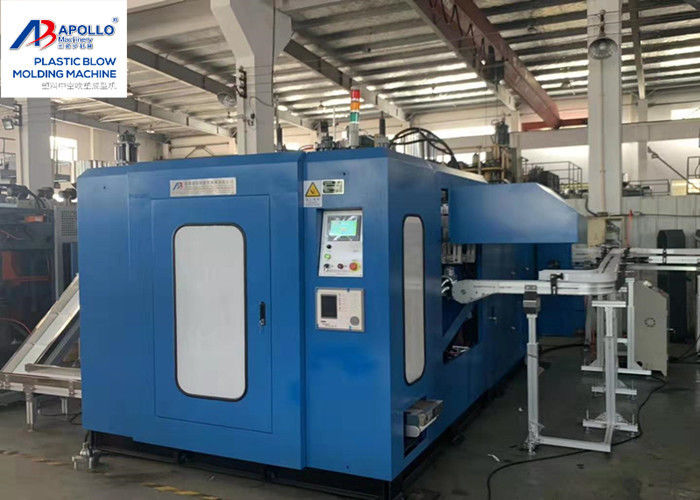

Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable

Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable
Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable

Large Image :  Easy Operation Auto Blow Moulding Machine 5ml-2L High Speed ABLB45II Stable

Product Details:
Place of Origin: JIANGSU, CHINA
Brand Name: ABC
Certification: CE/SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Film packing/Carton packing/Wooden packing
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 20 sets per month
Detailed Product Description
Max. Product Volume: 2 Liters Dry Cycle: 950X2pc/h
Screw Diameter: 55mm Screw L/D Ratio: 24 L/D
Screw Drive Power: 15 KW Screw Heating Capacity: 5 KW
Highlight:

bottle blow molding machine

,

blow molding equipment

High-speed auto blow molding machine ABLB45II





ABLB45II fully automatic blow molding machine was specialily designed for the small volume products.It can meet the production of plastic bottles from 5ml to 2L. A widely kinds of plastis meaterial can be used for this machine,which can meet the production of two,three or four products at the same time for mass production. Tidy frame and long-lived components and ideal cycle can reach 4.6 second.. This mahine is very small with fullly automatic process with high efficiency,easy and safe to operate. The die head system adopts central-incoming extrusion die made of made of special steel to ensure the quality of products. The control system consits of PLC and human machine and interface imported from Mitisubishi Japan.Schneider s contactor, Omron s auxiliary reply,Taiwan s PID temperature control module and imported hydraulic parts.
For more information and inquery. Please contact us.





Max. Product volume 2 liters Dry cycle 950X2pc/h
Screw diameter 55mm Screw L/D ratio 24 L/D
Screw drive power 15 KW Screw heating capacity 5 KW
No.of heating zone 3 zones Output of HDPE 60 KG/H
Oil pump drive power 5.5 KW Clamping force 32 KN
Max.size of mold 250X320mm Mold stroke 80-350mm
Max.die diameter 80mm Blow pressure 0.6mpa
Air volume 0.6 M³/MIN Cooling water pressure 0.3mpa
Water consumption 60 L/MIN



PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
