| Water Consumption: | 80 L/MIN | Air Volume: | 0.8M³/MIN |
|---|---|---|---|
| Max.die Diameter: | 160mm | Max.size Of Mold: | 400X450mm |
| Oil Pump Drive Power: | 7.5-11 KW | No.of Heating Zone: | 3/4 Zones |
| Highlight: | plastic blow moulding machine,blow molding equipment |
||

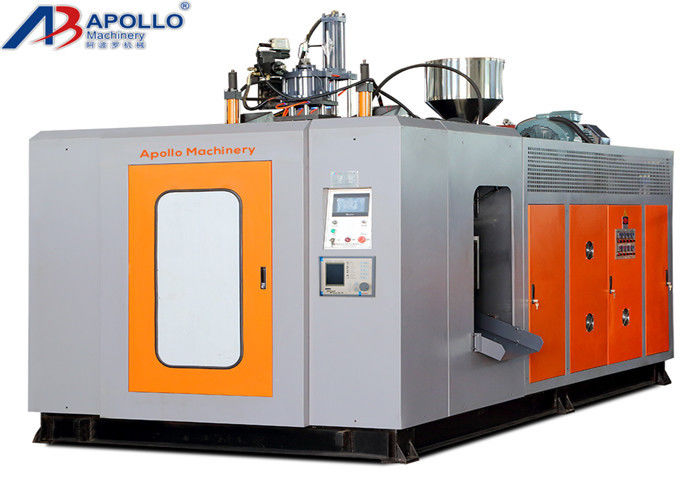

Automatic blow molding machine 5ml-2L High speed auto bottle blowing machine
ABLB75II full automatic blow molding machine produce bottles from 50ml to 2L. It is suitable for PP,PE,HDPE,PET,ABS,PVC and so on. Precision design of heater ensures even heating for getting perfect plastic products.Double-station design is suitable for mass production to meet your production request in big quantity.
For more info.,please contact us.
Related technical parameter:: (ABLB75II)
| Max. Product volume | 2 liters | Dry cycle | 800X2pc/h |
| Screw diameter | 75mm | Screw L/D ratio | 24 L/D |
| Screw drive power | 22 KW | Screw heating capacity | 7 KW |
| No.of heating zone | 3/4 zones | Output of HDPE | 100 KG/H |
| Oil pump drive power | 7.5-11 KW | Clamping force | 78 KN |
| Max.size of mold | 400X450mm | Mold stroke | 148-568mm |
| Max.die diameter | 160mm | Blow pressure | 0.6mpa |
| Air volume | 0.8M³/MIN | Cooling water pressure | 0.3mpa |
| Water consumption | 80 L/MIN |
PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
